Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > Exhaust Fan/Widely Used Negative Pressure Fan/Wall Mounted Fan

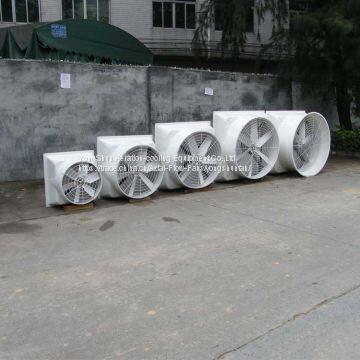

Exhaust Fan/Widely Used Negative Pressure Fan/Wall Mounted Fan

Name: Exhaust Fan/Widely Used Negative Pressure Fan/Wall Mounted Fan
Brand: YongShun
SKU: 142575982
Availability: InStock

Exhaust Fan/Widely Used Negative Pressure Fan/Wall Mounted Fan thumbnail-1

Exhaust Fan/Widely Used Negative Pressure Fan/Wall Mounted Fan thumbnail-2

Exhaust Fan/Widely Used Negative Pressure Fan/Wall Mounted Fan thumbnail-3

Exhaust Fan/Widely Used Negative Pressure Fan/Wall Mounted Fan photo-1

Exhaust Fan/Widely Used Negative Pressure Fan/Wall Mounted Fan photo-2

Exhaust Fan/Widely Used Negative Pressure Fan/Wall Mounted Fan photo-3

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

YongShun

Place of Origin:

China

Model Number:

YS-113PZ01

Contact Supplier Request Quote Chat Now

YongShun Aeration-cooling Equipment Co.,Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name YongShun

Place of Origin China

Model Number YS-113PZ01

Voltage 3-phase 380V

Power 0.55kw

Speed 500-550rpm/min

Air Volume 28000-32000m3/h

Blade Material Other, FRP

Mounting Wall Fan

Electric Current Type AC

Indstrial Fan/ Poultry Farm Fan/Butterfly Cone Exhaust Fan

Techinical Parameters

Item No	Dimensions (mm)	Power (kw)	Rated Voltage (V)	REV (rpm/min)	Air Flow (m³/h)	Noise (DB)	Blade Number (pcs)	Material of Blade
YS-146PZ01	*14601460580*	0.75	380	400-450	40000-45000	68-75	6	FRP
YS-146PZ02	*14601460580*	0.75	380	400-450	40000-45000	68-75	6	Aluminum alloy
YS-126PZ01	*12601260560*	0.75	380	500-550	35000-38000	65-70	6	FRP
YS-106PZ01	*10601060480*	0.55	380	500-550	28000-32000	65-70	6	FRP
YS-85PZ01	*850850480*	0.37	380	650-700	12000-20000	62-65	6	FRP
YS-207PZ01	*207320641040*	2.2	380	1450	90000-110000	75-85	3	FRP
YS-147PZ01	*14701470800*	0.75	380	400-430	40000-45000	69-75	6	Aluminum alloy
YS-146WD01	*14601460(φ 1990)**	0.75	380	400-450	40000-45000	68-75	6	FRP
YS-113PZ01	*11301100400*	0.55	380	500-550	28000-32000	65-70	6	FRP

Product Description:

Motor: Aluminum for the protecting case which is good for the heat dissipation. The motor is with IP54 protective class & class F insulation system also with over-load protection to protect itself from open phase, overload & overcurrent.

Advantages: Long Service Time, Low Noise & Stable Operation.

Fan Housing: Use the material with the features of corrosion resistance, acid & alkali resistance, rust resistance and long service time, called FRP(fiber reinforced plastic) which can reduce the resonance phenomenon due to overuse of the metallic material.

Blade: normally 6pcs of blade, aluminum alloy and FRP for the options. The Blades are designed by the rational angles to ensure that they are with rational air flow and make the low noise when in operation.

Advantage: Anti-aging & Non-deformation

Shutter: High quality plastic material for the shutter.

Advantage: Waterproof, Dustproof, Automatic switch, Electricity is not needed.

Application:

Company Introduction

Yong Shun Aeration-cooling Equipment Co., Ltd, which has more than 10 years' experience in manufacturing Negative Pressure Fan, is a professional private high-tech company located in Dongguan in 2005.

Yong Shun is equipped with advanced equipment for R&D and manufacturing, also, sets up an integrated management system to the employees so as to provide the best sales and after- sales services to our customers.

Our products are with good design and high quality, not only widely using in Plastic injection molding, Garment Textiles, electroplating, shoe industries, but also in animal husbandry industry, Green house, etc. We have already solved the temperature control problem for more than 3000 of our customers. There are more than 120 domestic and foreign dealers selling our products. And that, many of our products are obtaining more and more praise from our customers.

Product Tags: wall mounted fan , Negative Pressure Fan , ventilation
