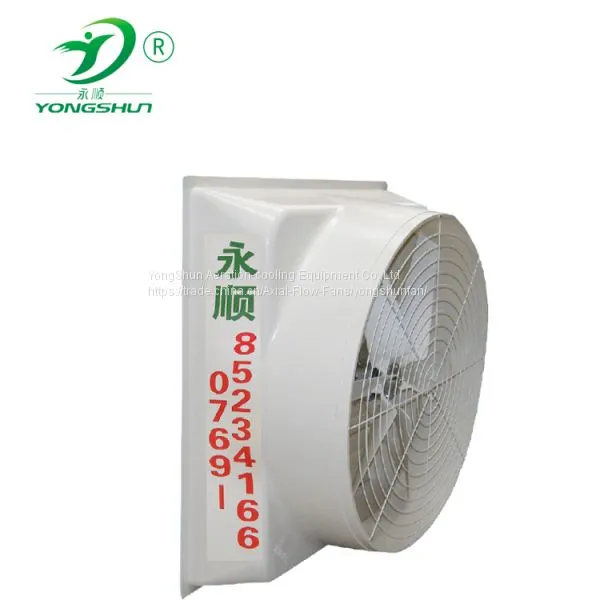

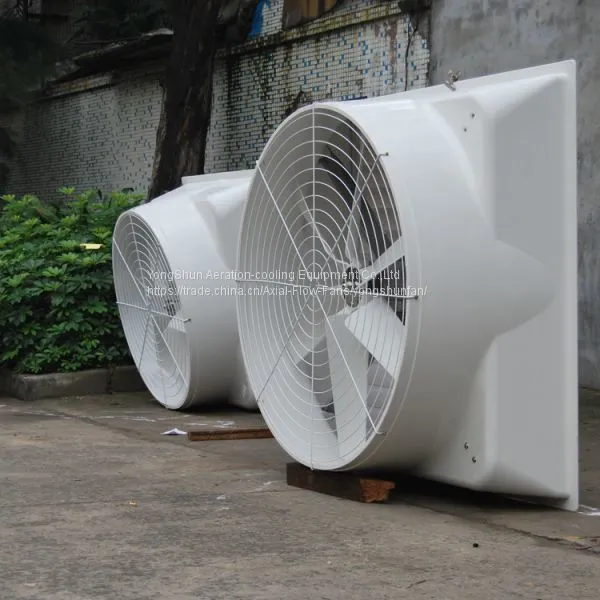

Exhaust fan/Negative pressure fan for poultry farm/Agriculture Green House/Livestock/Industrial

Name: Exhaust fan/Negative pressure fan for poultry farm/Agriculture Green House/Livestock/Industrial
Brand: YongShun
Price: Negotiable

FOB Price

Negotiable / Piece

10 Pieces(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment Terms:T/T L/C

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	YongShun	Place of Origin:	China	Model Number:	YS-106PZ01
Voltage:	3-phase 380V	Power:	0.55kw	Speed:	500-550rpm/min
Air Volume:	28000-32000m3/h	Blade Material:	Other, FRP	Mounting:	Wall Fan
Electric Current Type:	AC

Product Description

Indstrial Fan/ Poultry Farm Fan/Butterfly Cone Exhaust Fan

Techinical Parameters

Item No	Dimensions (mm)	Power (kw)	Rated Voltage (V)	REV (rpm/min)	Air Flow (m³/h)	Noise (DB)	Blade Number (pcs)	Material of Blade
YS-146PZ01	*14601460580*	0.75	380	400-450	40000-45000	68-75	6	FRP
YS-146PZ02	*14601460580*	0.75	380	400-450	40000-45000	68-75	6	Aluminum alloy
YS-126PZ01	*12601260560*	0.75	380	500-550	35000-38000	65-70	6	FRP
YS-106PZ01	*10601060480*	0.55	380	500-550	28000-32000	65-70	6	FRP
YS-85PZ01	*850850480*	0.37	380	650-700	12000-20000	62-65	6	FRP
YS-207PZ01	*207320641040*	2.2	380	1450	90000-110000	75-85	3	FRP
YS-147PZ01	*14701470800*	0.75	380	400-430	40000-45000	69-75	6	Aluminum alloy
YS-146WD01	*14601460(φ 1990)**	0.75	380	400-450	40000-45000	68-75	6	FRP
YS-113PZ01	*11301100400*	0.55	380	500-550	28000-32000	65-70	6	FRP

Product Description:

Motor: Aluminum for the protecting case which is good for the heat dissipation. What’s more, the motors are with IP54 protective class & class F insulation system also with over-load protection to protect itself from open phase, overload & overcurrent.

Advantages: Long Service Time, Low Noise & Stable Operation.

Fan Housing: Use the material with the features of corrosion resistance, acid & alkali resistance, rust resistance and long service time, called FRP(fiber reinforced plastic) which can reduce the resonance phenomenon due to overuse of the metallic material.

Blade: normally use 6pcs of blade, aluminum alloy and FRP for the options. The Blades are designed by the rational angles to ensure that they are with rational air flow and make the low noise when in operation.

Advantage: Anti-aging & Non-deformation

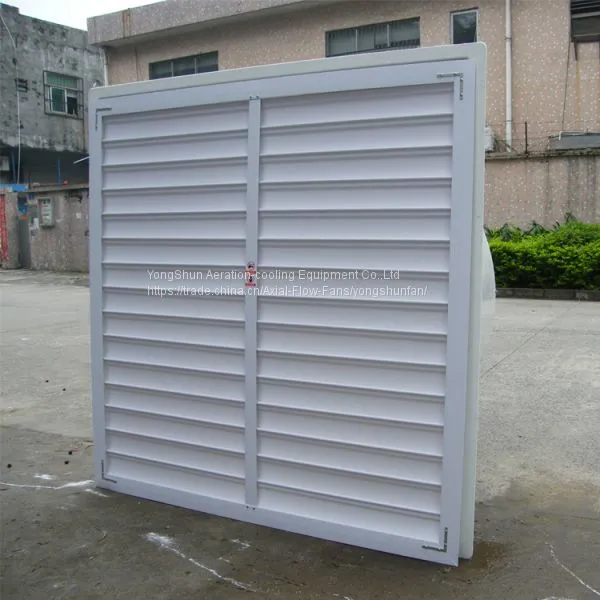

Shutter: High quality plastic material for the shutter.

Advantage: Waterproof, Dustproof, Automatic switch, Electricity is not needed.

Application:

Company Introduction

Yong Shun Aeration-cooling Equipment Co., Ltd, which has more than 10 years' experience in manufacturing Negative Pressure Fan, is a professional private high-tech company located in Dongguan in 2005.

Yong Shun is equipped with advanced equipment for R&D and manufacturing, also, sets up an integrated management system to the employees so as to provide the best sales and after- sales services to our customers.

Our products are with good design and high quality, not only widely using in Plastic injection molding, Garment Textiles, electroplating, shoe industries, but also in animal husbandry industry, Green house, etc. We have already solved the temperature control problem for more than 3000 of our customers. There are more than 120 domestic and foreign dealers selling our products. And that, many of our products are obtaining more and more praise from our customers.
