Home > Products > Petrochemical/mining industry /construction > Top quality Hongxiang brand used for road construction uniaxial geogrid
Top quality Hongxiang brand used for road construction uniaxial geogrid
- 500000 Square Meter / Square Meters per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
Place of Origin | Shandong, China | Brand Name | Hongxiang | |
Model Number | TGSG15-15 | Material | Other, Plastic, PP |
Product Description

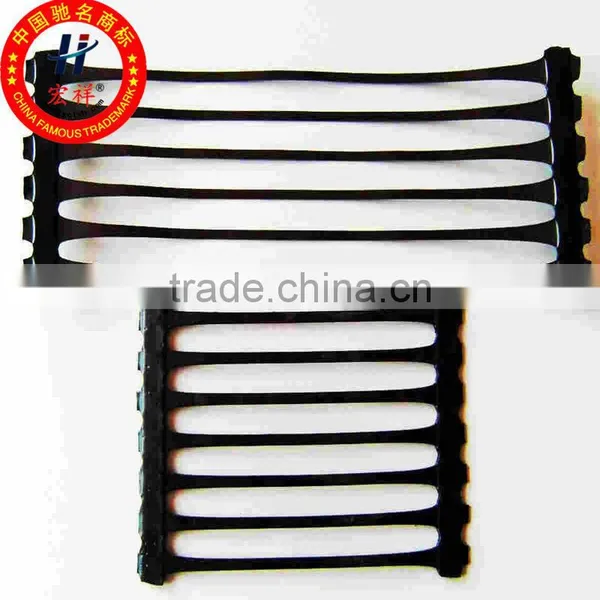

Top quality Hongxiang brand used for road construction uniaxial geogrid
|
PP Biaxial geogrid Description:
Made from polymer and nanometer carbon black by extrusion method
PP Biaxial geogrid Specification:
1.TGSG1515,TGSG2020,TGSG2525.TGSG3030.TGSG3535.TGSG4040.TGSG4545.TGSG5050,TGSG6060 and so on
2.Width from 2m to 6m
PP Biaxial geogrid Property:
1. Improve roadbed bearing capacity, enlarge road lifetime
2. Prevent road collapse and crack
3. Prevent soil and water loss in slope
4. Could replace stell-plastic geogrid in coal mine
PP Biaxial geogrid Application:
1.Reinforcement in dam and roadbed
2.Slope protection
3.Wall reinforcement
4.Roadbed bearing capacity improvement in airfield, packing lot and wharf
PP Biaxial geogrid Production Standard:
GB/T17689-2008
JT/T480-2002
Item | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG40-40 |
Longitudinal Tensile Strength,kN/m | 15 | 20 | 25 | 30 | 40 |
Transverse Tensile Strength,kN/m | 15 | 20 | 25 | 30 | 40 |
Longitudinal Yield Elongation,% | 15 | ||||
TransverseYield Elongation,% | 13 | ||||
Longitudinal Yield Strength at 2% Elongation,kN/m | 5 | 7 | 9 | 11 | 14 |
Transverse Yield Strength at 2% Elongation,kN/m | 5 | 7 | 9 | 11 | 14 |
Longitudinal Yield Strength at 5% Elongation,kN/m | 7 | 14 | 17 | 21 | 30 |
Transverse Yield Strength at 5% Elongation,kN/m | 7 | 14 | 17 | 21 | 30 |
Product Length/roll,m | 50 | 40 | |||
Product width ,m | 3.9/3.95/4 |
Name: | Geogrid (BX) Geogrid BX Geogrid | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Biaxial geogrid | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Note: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions and Properties
|
We have more than 25 years of experience in this field,Our products are exported to the United States, Russia, Pakistan, Thailand, India,Tanzania, Australia, South Africa, the United Arab Emirates, more than 20 countries and the areas, is widely used in water conservancy, railway, highway, landfill etc. the practice has proved my company product quality is stable, reliable and convenient for construction, the price is reasonable, good after-sales service, our products is given high praise as trustworthy products by the customers from all around the world.
Why Choose Hongxiang New Geo-material?
1. We are professional and largest in geo-material manufacturing: establish more than 20 years, HONGXIANG NEW GEO-MATERIAL producing capacity 660,000m2 per day
2. We have Professional Workers in our workshops, they have over 20 year experience on making HONGXIANG NEW GEO-MATERIAL
3. We have Professional Service Team, who can provide customer great experience and 100% technical support. No misunderstanding then No mistakes.
4. We have Extremely Strict QC System that can make sure our customer receive the quality goods.
5. We are honest and loyally. We will quote you the reasonable price and keep your trade secret loyally.
6. There are lots of more! Work with us once, you will know us very well!
Order Process:
1. Send your geo-material detail requirement to us.( Attached with technical data or Sample will be better)
2. We will quote you the price and leading time based on your information by email.
3. Sign PI or contract as we agreed. Production will be start after receive the deposit.
4. We will send you the production photo or video for your reference.
5. QC check. You can send your QC worker or we will send you our photo or video.
6. We will ship your GEO-MATERIL GOODS (and provide B/L) after we received the balance.
Questions and Answers:
Q: Can you accept sample order?
A: Yes, we accept samples with little and reasonable charge.
Q: What is your MOQ?
A: Normally, 5000 m2 per order.
Q: What is your delivery time? Can we short it in 7 days or less?
A: 7 days for sample, 20-25 days for mass production.
Q: What is your payment terms?
A: T/T (Bank surcharge 50$/order), Paypal (3% surcharge), Western Union or 20% deposit 80% L/C.
Q: How can I get my order?How can I know you sent the goods.
A: We will send you the goods by UPS, DHL, Fedex, Oversea Shipment or other forwarder, all with tracking number or B/L.
Q:How about your quality?
A: Try a small order, you will have your own judgment!
