Hot selling Mining and Mineral Processing coal sludge handled with Geotube dewatering technolog with low price

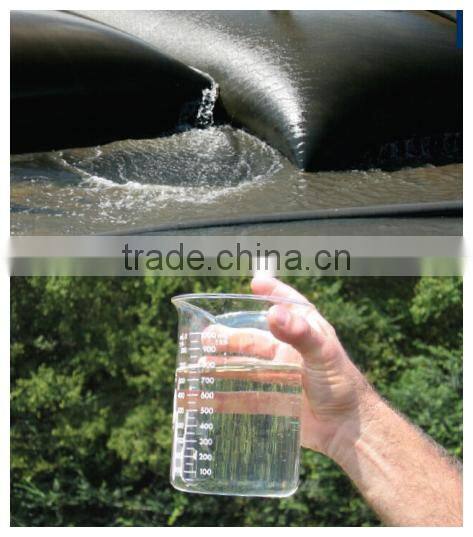

Geotube units can be used to capture fines, silts, and clays from the tailings effluent prior to discharge into the ponds or directly into streams. Geotube units will separate and dewater the fines and allow disposal without expensive dredging and transporting operations. In some cases,conditioners or polymers are used to promote flocculation to improve
solids retention and filtrate quality.

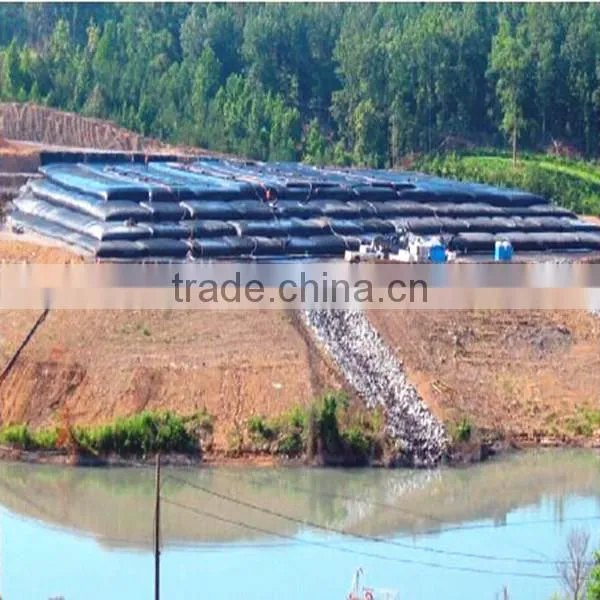

Geotube containers can also be used to utilize the fines to build dikes
and containment berms.
Hot selling Mining and Mineral Processing coal sludge handled with Geotube dewatering technolog with low price
Physical properties | Test Method | Unit | Value |
Unit weight | ASTM D 5261 | g/m2 | 405(+-5%) |
Color |
|
| white |
Width |
| M | 3.4-3.75 |
Mechanicalproperties |
|
|
|
Tensile Strength MD | ASTM D 4595 | KN/M >= | 55 |
Tensile Strength CD | ASTM D 4595 | KN/M >= | 70 |
Enlongation at break MD | ASTM D 4595 | % <= | 28 |
Enlongation at break CD | ASTM D 4595 | % <= | 25 |
CBR puncture strength | ASTM D 6241 | KN/M >= | 7.5 |
Hydraulic properties |
|
|
|
Pore opening size 090(095) | ASTM D 4751 | mm | 0.1-0.5 |
Permeability | ASTM D 4491 |
|
|
UV resistance |
| cm/s | (3-5)*10-2 |
Other colors are availible | 70% Strength retained after 500 hours |
|
|
Advantages of Geotube dewatering units:
1.High volume containment opportunity to spread project costs over several years
2.Rapid flow through rate
3.Drastic reduction in disposal cost
4.Lower capital cost
5.Simplicity
6.Durable and can be stacked to maximize space, or fabricated to fit in mobile roll-off containers that can be transported around your property.
Hot selling Mining and Mineral Processing coal sludge handled with Geotube dewatering technolog with low price
4. Geotube used in breakwater
Pcking &Shipping
1. We are a high -new technology enterprise which mainly produce and deal with Geo synthetics product. You are welcomed to our factory any time .
2.Our material have pass the quality inspection system before delivery,was proved good quality easy construction by many projects.
3. We ensure provide the best quality and short delivery time for costumers .
4. We have professional service team.
5. Our excellent team would be very happy to work with you and offer suggestions,product applications, and design assistance.
The equipment of HongXiang New Geo-Material Co., LTD. are mainly imported from Germany, Italy, Canada, France and other well-known domestic enterprises, it has one full set of precise testing instrument, testing equipment and quality inspection team, technology Research & Development team.
HONGXIANG products are widely used in national key engineering fields, such as water conservancy, railway, subway, highway, landfill, anti-seepage, construction industry, mining industry, agriculture, ecological greening system, etc. engineering fields, and exported to United States, Russia, Pakistan, Thailand, Tanzania, Australia, South Africa, Zambia, United Arab Emirates etc. more than 30 countries and regions.
