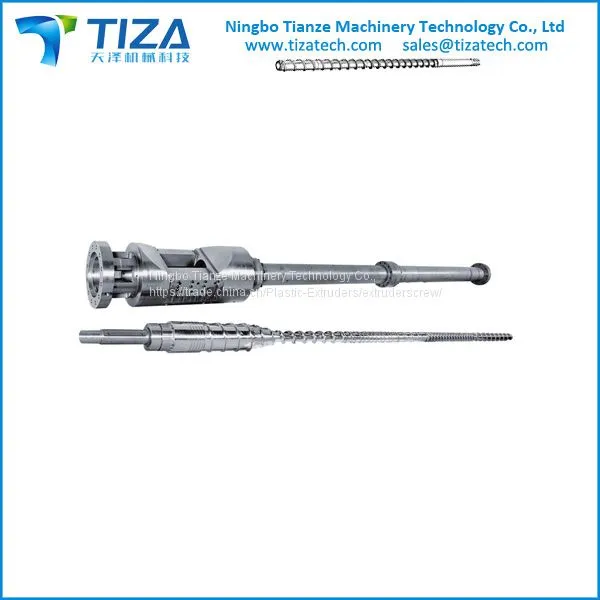

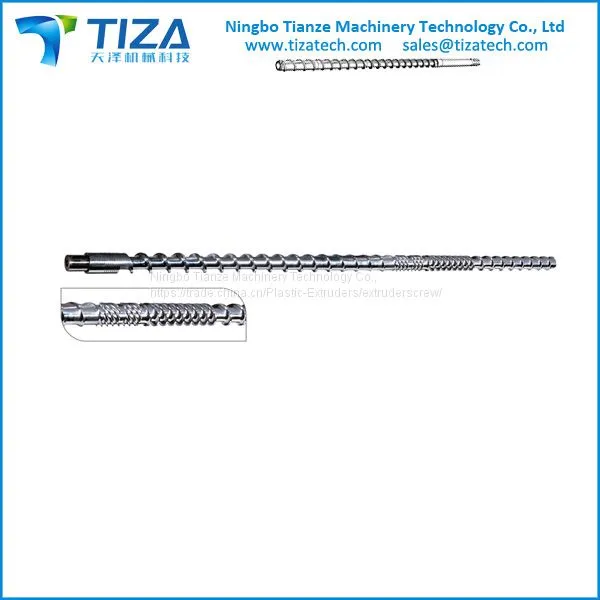

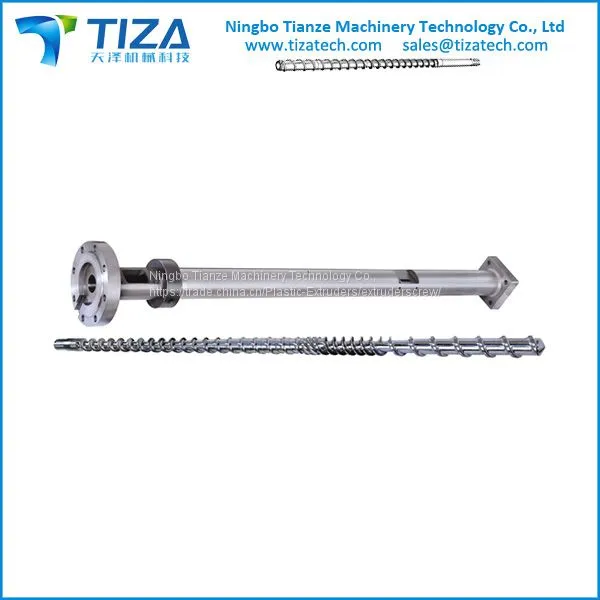

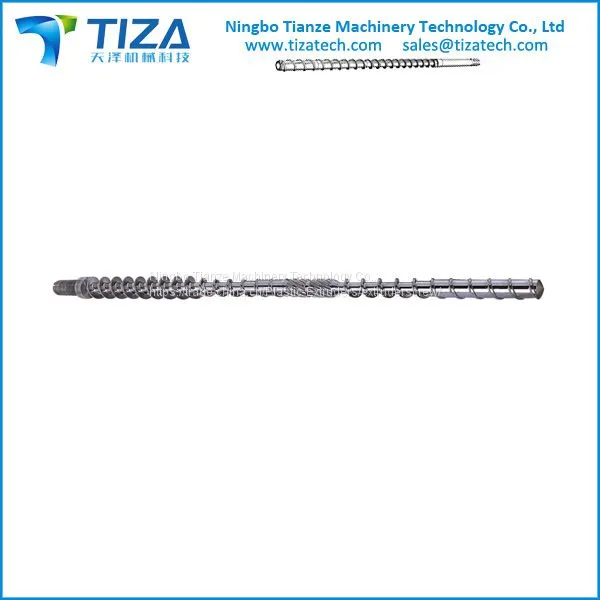

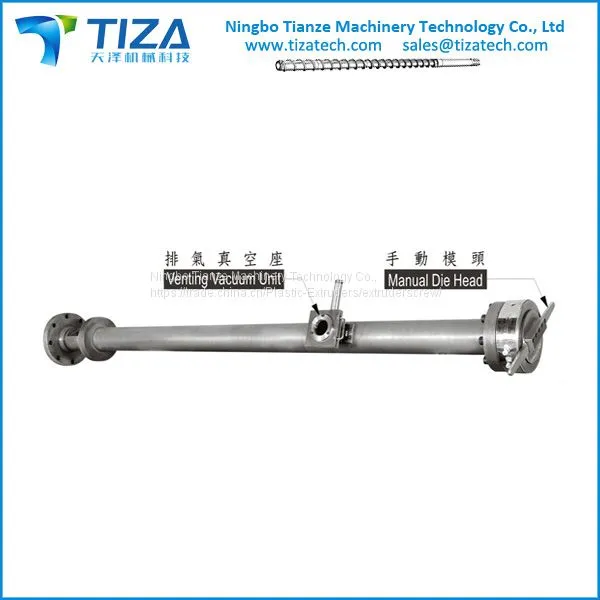

Help CenterBimetallic Screw Barrel for Pelletizing Machine
Related Products
-
120mm Screw Barrel for 1 Year Warrenty for Plastic Making MachineUS$ 100 - 1000MOQ: 1 Set -
IMM Extruder Screw Barrel for Plastic Rubber ProductionUS$ 100 - 1000MOQ: 1 Set
-
High-quality Screw Barrel for Plastic Package Cup Helmet Production EtcUS$ 100 - 1000MOQ: 1 Set
-
Hi-tech Screw Barrel Extrusion Plastic Rubber Production Machine Key PartUS$ 100 - 1000MOQ: 1 Set
-
Screw & Barrel for Plastic Pipe Extrusion MachinesUS$ 100 - 1000MOQ: 1 Set
Over 29 years experience in screw and barrel , more info pls find kaylee(at)
Specification:
Diameter: Ø15-Ø500
L/D ratio:15-55
Base Materials: |
Base Materials: 1)38CrMoAlA(SACM 645) 2)42CrMo(AISI 4140) 3)Cr12MoV(SKD11) 4)4Cr5MoSiV1(SKD61) 5)9Cr18MoV 6)40Cr |
Bimetallic Alloy Materials: |
Bimetallic Alloy Materials: 1)Fe-based alloy 2)Ni-based alloy 3)Co-based alloy 4)Tungsten carbide |
Processing Technology: |
Heat treatment High-frequency quenching Nitriding treatment Hard-chrome electroplating Bimetallic alloy welding |
|
Technical Parameter:
|
Technical Parameter: Nitrided layer depth:0.50-0.80mm Nitrided hardness: 900-1100HV Nitrided brittleness: Less than 2 level Surface roughness: Ra 0.4 Linearity of screw: 0.015mm Hard-chrome plating hardness: ≥950HV Chrome-plating layer depth: 0.025~0.10mm Bimetallic layer depth: 2 mm Bimetallic hardness: HRC50-65 |
Material to be extruded: |
PP, PE, PVC, ABS, AS, PS etc. |
