Fire-retardant Light Weight Honeycomb Wall Panel

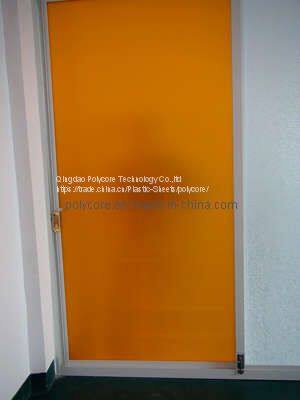

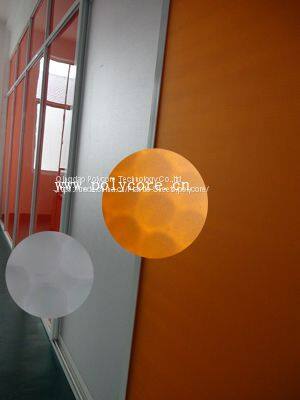

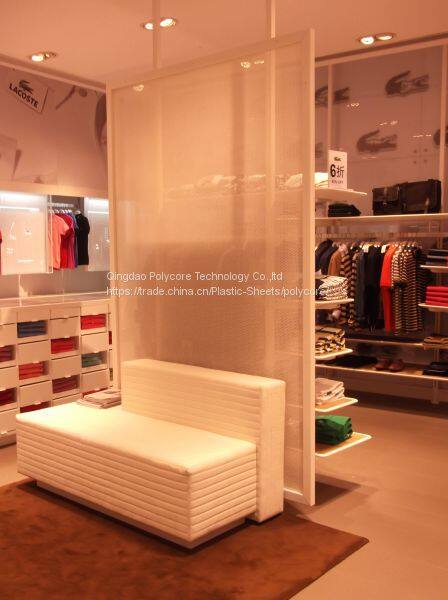

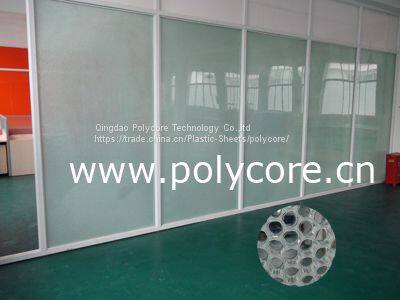

 Polycore optical panel apply into exterior decoration , interior decoration and special project, such as stands, fairs, fashion show, convert, exhibitions, TV Sets, theater, set design, hotel ,KTV, restaurant, Disco, SPA, Wellness, GYM, bar, chamber, club, panel wall, screen, partition, countertops, ceiling, lounge bar , office, shop fittings, private house, door and so on. It's one kind of newest advertisement and decoration panel.

Above standard size is 1220*2440mm,thickness from 10mm to 60mm.Max size within 1250*3500mm.

When Surface skin select PC sheet usually thickness can be 1.0mm,1.5mm,2.0mm, or 2.5mm. Most popular Color is transparent.

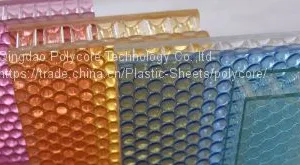

When  Surface skin select acrylic sheet usually thickness can be 2.0mm, 3.0mm. Color can be selected from varies colors popular in market.

When surface skin select PETG sheet usually thickness can be 1.5mm,2.0mm, or 2.5mm.

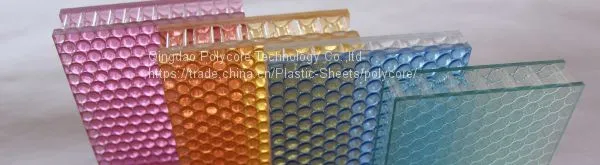

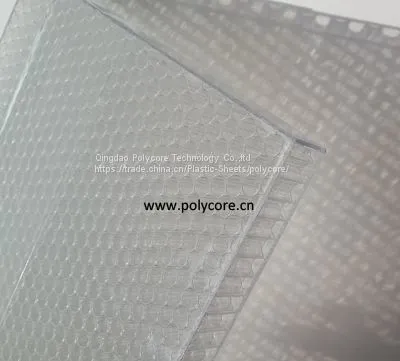

There are two models now in our PC honeycomb sandwich panel system,one is OPTpan,which select PC or Acrylic sheet as skin panel laminate on PC honeycomb core to make out OPTpan. If select both sides transparent skin panel,not only light transmission but also visiable on both sides of panel.

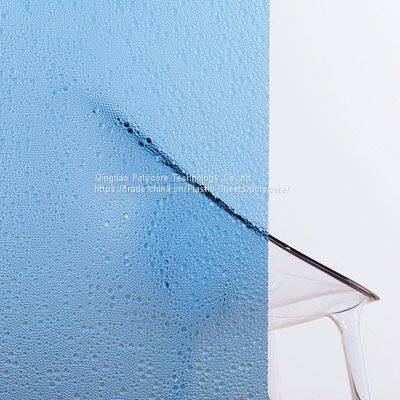

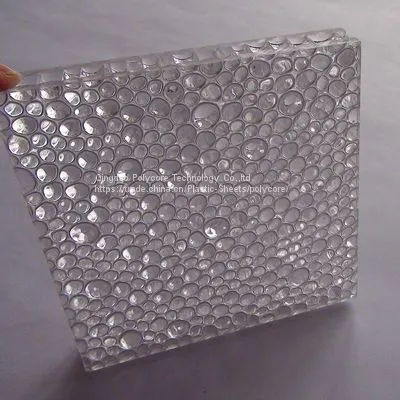

The other one is DRIpan,which select PETG or Acrylic sheet as skin panel to melting partly into PC honeycomb core to make out DRIpan.So by DRIpan,even select transparent skin sheet as panel, there is only light transmission but unvisiable to both sides of panel.Partly melting core looks like tear drip on the panel. Dripan is more better in integration than Optpan.

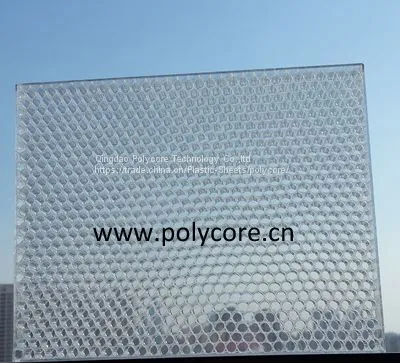

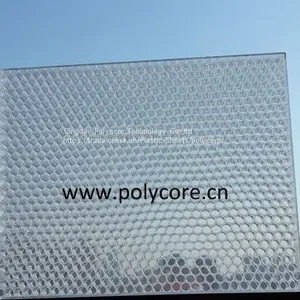

Surface panel can be selected thermoplastic material ,such as polycarbote,acrylic,polyethylene terephthalate glycol, thickness, size and color according to clients request. Core material is transparent PC honeycomb , honeycomb core diameter can be 3.5mm,6.0mm and 8.0mm.

Properties:

Translucent options

Excellent light transmission

Excellent stiffness with light weight

B2 fire retardant honeycomb core

Consistance with varies material

No sun focusing

Thermal insulation, sound dampen

Corrosion resistance

Rub resistance

Fireproof and waterproof

Radiation-proof.

Environmental protection.

Clean clear

Not deform, Not fade

Impact resistance

No water absorption

Stable in large temperature range
