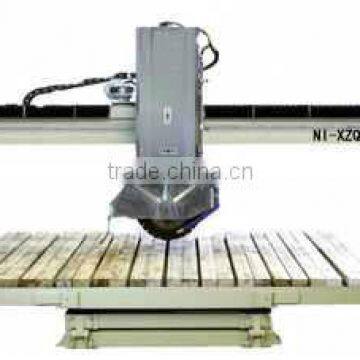

Automatic Stone Cutting Machine
The Automatic Stone Cutting Machine is under PLC control with cutting dimensions set by terminal input. All the operations are executed either manually by the operator or automatically by the program carrying out parallel cuts with max 8 different dimensions repeatable up to 1999 times. The switchboard, with operation buttons, programmer and liquid crystal display on, is mounted on the right hand side of the machine.
The switchboard can make the operator control the machine easily from the sawing area when the stone is being positioned. The saw is equipped with a laser illumination system to aid in lining up the cut. One of the most important features is that the blade holder of machine can be tilting from 0 to 45 degree for chamfering cutting. Therefore, the machine can be satisfied for different and special processing request. The cutting is controlled through an inverter.
| Unit | XZQQ-625A | |
| ing dimensions (L×W×H) | mm | 3200×3200×175 |
| Max.diameter of table | mm | 625 |
| Table dimensions(L×W) | mm | 3200×2000 |
| Table tilting degree | n° | 0-85 |
| Table rotating degree | n° | 90 |
| Head tilting degree | n° | 0-45 |
| Main motor power | kW | 15 |
| Overall dimensions(L×W×H) | mm | 6000×5000×2600 |
The Automatic Cutting Machine may cut granite, marble and other non-metallic material, with microcomputers control, simple operation, high precision cutting and stability performs. It's particularly suited to high-value and large stone slates. The working bench can overturn by 85 degree.

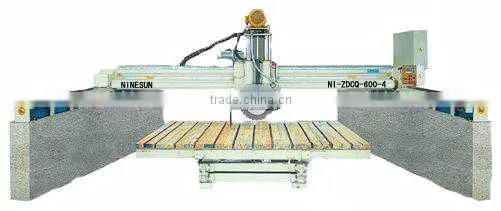

Granite bridge cutting machine or marble stone cutting machine adopts a fully automatic machine as a whole using large beams displacement positioning, knife blocks moving back and forth and tooling carrier up and down.
The switchboard on the Automatic Cutting Machine, with operation buttons, programmer and liquid crystal display on, is mounted on the right hand side of the machine. The switchboard can make the operator control the machine easily from the sawing area when the stone is being positioned. For fulfill the parallel plate cutting once, the main parts and components of granite bridge cutting machine ( such as frequency converter, magnetic rule and laser reticular apparatus) are all of imported high quality materials.
With integrated structure, the stone bridge cutting machine features high strength, deformation resistance and long service life. It is easy to transport and free of experiment and adjustment. With rotatable cutting head, the granite bridge cutting machine has the merits of high speed, high precision and easy maintenance, which is preferred equipment for cutting high-value and large size slabs.
Guarantee for one year,24-hour technical support by email or calling User-friendly English manual and Video CD for machine using and maintaining.
