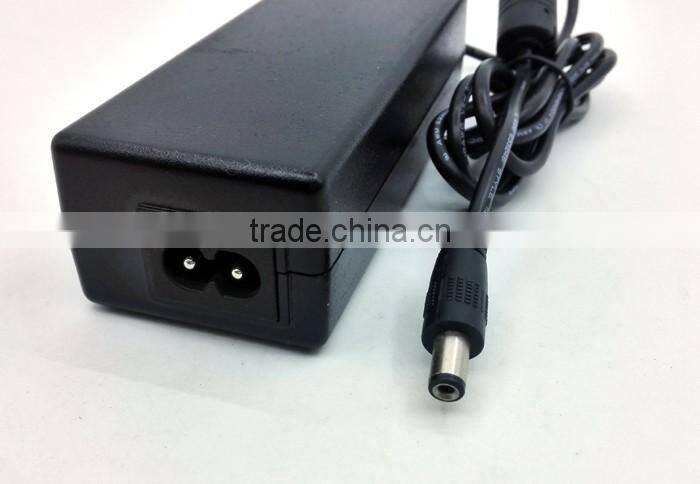

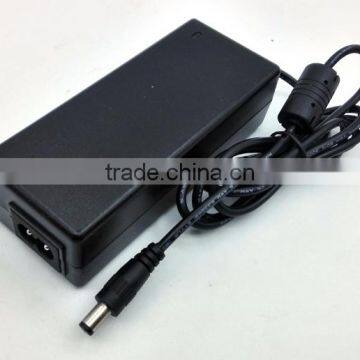

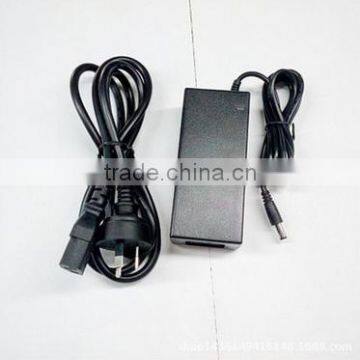

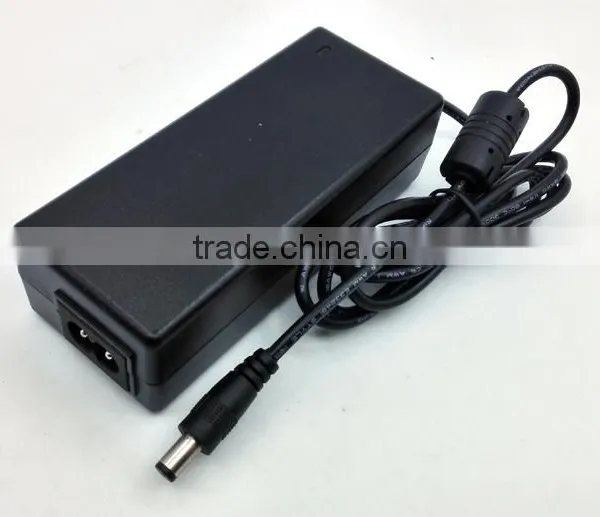

9V 3A desktop power adapter
Features of power adapter
Universal Input 100~240V AC 50~60Hz
Built-in Class B EMI FilterHigh Efficiency
Short Circuit protection Lightweight Compact
Electrical Specifications of the switching power adapter
(AC Input)Rated Input Voltage: 100~240V AC
Input Current: 0.45A(RMS) @ 115V AC0.20A(RMS) @ 230V AC
Input Frequency: 50~60Hz
Inrush Current: Max. 50A @ 230V Cold Start
Low Standby Power 0.3W Max
Output: 3~24VDC 27W Max.
Environmental Specifications of power adapter
Operating Temperature: 0~40C @ Max. LoadNon-operating Temperature: -40 C 85 C
Humidity: 5% to 95% Non-condensing
Safety Specifications of power adapter:
Standards Reference Class 11 SELV for the following agency Requirements:
CCC, UL, CSA950(cUL), TUV-GS, EMC, CB, FCC. NEMKO. RoHS
Mechanical Specifications of power adaptor
Weight Approx. 110g
Dimension L71.5mm(2.81'')W42.5mm(1.67') H48.5mm(1.90'')
Connectors DC Output: 1.8m wire, "H"shaped head or according to customers' choice.
5v 4A 6V 3.8A 9V 2.6A 10V 2.4A 12V 2A 15V 1.6A 24V 1A Power adapters
UL / CUL / FCC / GS(LVD) CE / EMC / PSE
3C / C-TICK CEC
9V 3A desktop power adapter
| Meet RoHs CEC | Electrical: | ||
| Features: | Dielectric: 3000VAC | ||
| Universal Input 100-240VAC | Burn-In Test: 100% Full Load | ||
| Modified and Custom Design Available | Leakage Current: 0.25mA @ 2pin | ||
| Output with Low Ripple Noise | Efficiency: Meet CEC | ||
| 1 Year Warranty | MTBF: 50000 Hours | ||
| AC Input | DC output | ||
| Voltage Range: 90-264 VAC | Voltage Range: 5.0 - 24.0V | ||
| Input Frequency: 47-65 Hz | Current Range: 0.8A -4A | ||
| Input Current : 550mA max | |||
| Inrush Current : 30A max | |||
| Efficiency : 76% min | |||
| Safety Approval: | Case Dimension: (L*W*Hmm) | ||
| UL / CUL / FCC / GS(LVD) CE / EMC / PSE | 97*45*35 | ||
| 3C / C-TICK CEC / Energy Star |
Welcome to OEM/ODM
Free sample
Sample time : 3-5days
Delivery time:7-10days
Trade terms: FOB shenzhen
Payment : T/T ,L/C,PAYPAL ,Western Union
All product warranty 3 years(One years damage manufacture one to one exchange.)
Printing you LOGO and stick you modle also ok .
