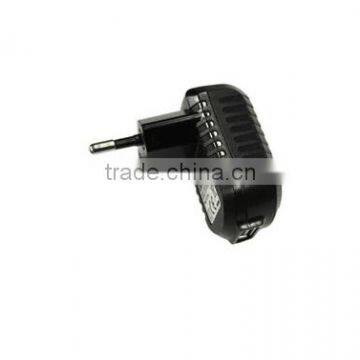

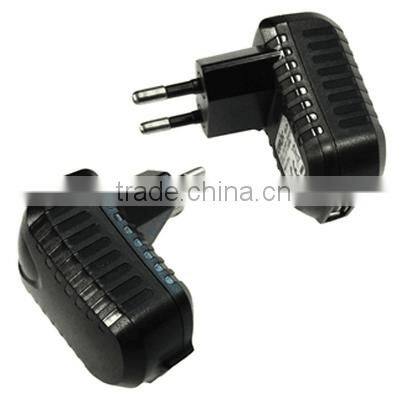

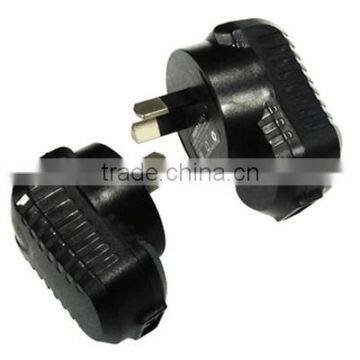

Wall Mount us Plug Usb Charger 5v/2a ul Approved ac Power Adapter 10w

US$ 0.88 - 1.88 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

universal power adapter travel converter au eu uk

Shenzhen Singja Gifts& Crafts Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number universal power adapter travel converter au eu uk

Output Type DC

Connection Plug In

wall mount us plug usb charger 5v/2a ul approved ac power adapter 10w

Product Description
Input&Output	Voltage/Frequency Range	100~240VAC 50/60Hz
	Input Current	≤0.3A
	Rated Output	3V~24V;01A~2A;5W(Max)
	Line/Load Regulation	±2% / ±5%
	Ripple&Noise(Max)	≤200mV
Reliability	Withtand Voltage	I/P-O/P:3KVAC,60s, 5mA
	Leakage Current	0.25mA / 240VAC
	Isolation Resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH
	MTBF	30000hrs full load,based on MIL-HDBK-217F(25℃) (30000hrs MIL-HDBK-217F(25℃)
	Temperature Rise	80~100% loads , 4hours
Protection	Over Load	>105% rated output power
	Over Current	110%-150% rated output current
	Short Circuit	Recover automatically after fault condition is removed
Safety	Safety Standard	UL60950-1, CSA22.2,IEC/EN60950 IEC/EN60065
	EMI	Compliance to FCC part15 class B, EN55022, EN61204-3 class B
	EMS Immunity	Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204
	Harmonic Current	Compliance to EN61000-3-2,3
EnViroment Protection & Efficiency	RoHS	Compliance to CPSIA(H.R.4040)
	No Load power consumption	<0.3W
	Efficiency	IV or V
Package	Dimensions	56.8×41.4×49.8mm (LWH)
Package	Packing	PE bag or white box(PE bags or white paper box )
Environment	Working Temp	0 ~ +50 (℃)
	Working Humidity	20% ~ 90% RH non-condensing
	Storage Temp	-20~85(℃),10 ~ 95% RH
