Solar Panel 10KW
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BESTSUN solar panel | |
| Model Number | BPS-10000W solar panel | Specification | Normal | |
| Application | Commercial | Output Voltage (V) | solar panel 72V | |
| Load Power (W) | solar panel 10KW | Solar Power (W) | solar panel 10KW | |
| Work Time (h) | solar panel 10KW 72H |
Product Description

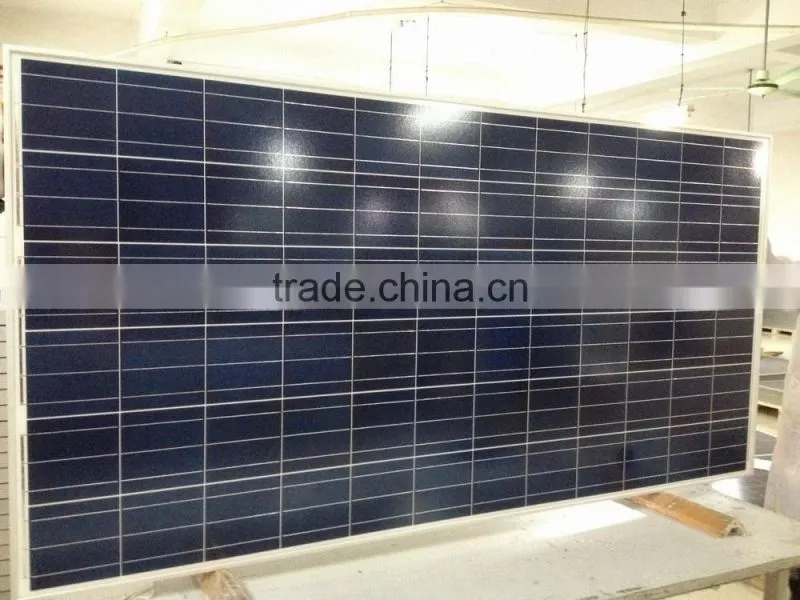

High efficiency Solar Panel, 250W 300W poly crystalline solar panel, PV solar panel CE and TUV certified 200W mono crystalline PV solar panel manufacturer in China
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
PV solar panel 100W 150W 200W 250W 300W
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
| ITEM NO | BPS156P72-300 | |||
| POLY | Poly | |||
| Maximum power (Wp) | 300Wp | |||
| Maximum power voltage (V) | 36 | |||
| Maximum power current (A) | 8.33 | |||
| Open circuit voltage (V) | 46.2 | |||
| Short circuit current (A) | 9.08 | |||
| Cell Efficiency (%) | 17.60% | |||
| Number of cells (Pcs) | 72(6*12) | |||
| Size of cell (mm) | 156*156 | |||
| Size of module (mm) | 1950*992*50mm | |||
| Maximum system voltage (V) | 1000V | |||
| Temperature coefficients of Isc (%) | + 0.1/ ℃ | |||
| Temperature coefficients of Voc (%) | -0.38/ ℃ | |||
| Temperature coefficients of Pm (%) | -0.47/ ℃ | |||
| Temperature coefficients of Im (%) | +0.1/ ℃ | |||
| Temperature coefficients of Vm (%) | -0.38/ ℃ | |||
| Temperature Range | `-40C------+85C | |||
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) | |||
| Allowable Hail Load | steel ball fall down from 1m height | |||
| Weight per piece (kg) | 28 | |||
| Junction Box Type | PV-JB001( TUV ) | |||
| Connectors and Cables Type | With TUV certificate | |||
| Length of Cables (mm) | 900mm | |||
| Output tolerance (%) | ±3% | |||
| Frame (Material, Corners, etc.) | Aluminum | |||
| Standard Test Conditions | 1000W/m2 AM1.5 25’C | |||
| Warranty | 5 years product warranty and 25years 80% of power | |||
| FF (%) | ≥72% | |||
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
How the solar system working :
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power .at the same time charging battery. This is very suit for home use.
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar System characteristic:
1. All Systems have LCD digital display which allows you to see the system working, (eg) Charge data, System voltage, Daily power consumption and temperature.
2. All type of BPS system both has AC and DC output.
3. All system have automatic switch , If mains power goes off the system will switch automatically over to battery power, When mains power resumes
the system will switch back automatically. The batteries will resume recharging automatically.
4. All inverters are Pure Sine Wave inverters. This allows the use of Air Conditioners and refrigerators without any problem.
5. Each component has a single chip detector. Assembled by the IPM or IGBT of Mitsubishi
This protects the system from Overloads, Low Voltage and Under Voltage (alarm) Over Heating, Short circuit, Reverse Polarity.
6. Your system can be updated very easily. Just by adding extra components your system will increase power capacity.
7. Battery optional, you can purchase from us or locally.
8. Simple to install, just follow installation instructions.
9. Our System offers Cutting Edge Technology, State of the Art Quality with Greater Functionality than our competitors, at Competitive prices.
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
With our industry leading expertise across the entire solar value chain, including our Innovative technologies, professional services, and proven track record of success, BESTSUN NEW ENERGY SOLAR POWER SYSTEM energy solutions provide the most value and the least amount of risk for our customers.
Customer-orientation: No matter clients have any solar product projects, BESTSUN NEW ENERGY teams will Offer very excellent and patient service on solar system solutions. Everything will be made Based on helping clients to solve the problems in solar systems.
Strong capability on one-stop solar energy system solutions design service: If clients can offer Design, BESTSUN NEW ENERGY engineering team can offer solutions in 48 hours from solar panels, solar energy controller, solar power inverter, and solar home battery system.
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Company Profile
BestSun New Energy Co., Ltd (Abbreviated as: BestSun) was established in 2006, registered in Jiaxing high technology industry xiuzhou development zone, its register capital has reached 5 millions RMB. The company is one high technology listed company which mainly focuses on research and development, manufacturing, sale and service of complete Green energy-solar power system and solar electronic equipments, taking “high efficiency and energy saving” as development direction.
The products of the company mainly consists of five categories: First category is off-grid solar power system products, mainly including solar panel, Isolate power controller and stand along power inverter etc; Second category is on-grid solar power system products, mainly including PV solar module, grid tied power inverter etc; Third category is solar back up system, mainly including PV solar panel and back up power supply etc. Fourth category is solar panels products, mainly including Monocrystalline PV module and Polycrystalline PV panels etc; Fifth category is Low-voltage power supply products, mainly including Low-voltage switch, various circuit breakers etc.
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Technology Innovation
“BestSun” has master several core technologies and owned several patent technologies. Up to now, the company has already owned 3 invention patents, 12 national utility models. The company already own ISO9001: 2000, CE, TUV, IEC, UL etc. international quality authentication.
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Research, Development and International Cooperation
The industry base of “BestSun” is located at high technology industry xiuzhou development zone. Jiaxing city, Zhejiang province, China. The company has developed as the complete solar system manufacturer with strong competition and influence after many years. The company has built up the manufacturing base for complete solar power system, solar energy, solar generator, solar panel, solar home system, solar ups and back up system which occupies 10 thousands square meter. 50MW yearly capacity.
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
BPS-100W, BPS-120W,BPS-150W,BPS-200W,BPS-800W,
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
BPS-300W, BPS-500W, BPS-1000W, BPS-2000W ,
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
BPS-3000W, BPS-4000W, BPS-5000W, BPS-6000W,
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
BPS-10000W,BPS-15000W, BPS-20000W
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Best Sun New Energy Co., Ltd
Solar system, solar power system, solar home system, solar energy system, solar generator, solar panel system
Address: industry xiuzhou development zone, Jiaxing, Zhejiang, China
Zip Code: 314000
Contact person: Mr. Alexandra T.
Tel:+(86)- 13736462979
Fax:+(86)-0573-82603889
Web:
