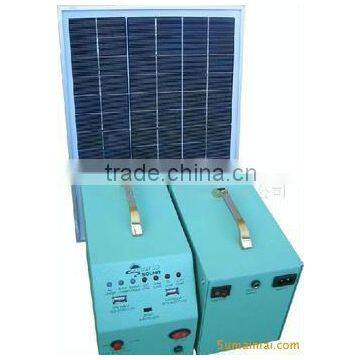

solar and wind system
1. All solar Systems have LCD digital display which allows you to see the system working, (eg) Charge data,System voltage, Daily power consumption and temperature/
2. All type of BPS solar system both has AC and DC output. Also have AC back up charger function.
3. All solar system have automatic switch , If mains power goes off the system will switch automatically over to battery power,When mains power resumes the system will switch back automatically. The battery's will resume recharging automatically.
4. All solar inverters are Pure Sine Wave inverters. This allows the use of Air Conditioners and refrigerators without any problem.
5.Each component has a single chip detector. Assembled by the IPM or IGBT of Mitsubishi ,This protects the solar system from Overloads, Low Voltage and Under Voltage (alarm) Over Heating, Short circuit, Reverse Polarity.
6. BPS solar system can be updated very easily.Just by adding extra components your system will increase power capacity.
7. Solar system Simple to install , just follow installation instructions.
8. Our solar System offers Cutting Edge Technology, State of the Art Quality with Greater Functionality than our competitors, at Competitive prices.
| Technical data: | |||||
| Capacity | 300VA | ||||
| Output wave | Pure sine wave | ||||
| Output current | 1.09A(220V) / 2.18A(110V)) | ||||
| PREcision of output voltage | ±3% | ||||
| Precision of output frequency | ±0.1% | ||||
| False output wave of AC | < 3% | ||||
| Power factor | 0.8 | ||||
| Overload ability | 120%,30 seconds | ||||
| Invert efficiency | More than 85% | ||||
| Output voltage | AC110/220V | ||||
| Output frequency | 50HZ/60HZ | ||||
| Maximum output power of Solar Module | 100W | ||||
| Maximum output voltage of solar module | 35V | ||||
| Maximum output current of solar module | 2.9A | ||||
| Battery capacity | 24V65AH | ||||
| Best output power everyday | 322WH | ||||
| Reference: Max Power Supply Capacity Reference | |||||
| Name of Load | Model | Power | Quantity | Working Time per Day (H) | Continued Working Days |
| Color TV | 21 inch | 65W | 1 | 4 | 3 continued overcast and raining days |
| Satellite TV Receivers | 25W | 1 | 4 | ||
| Energy-saving lamp | 11W | 2 | 2 | ||
solar and wind system
