Product Details
| Place of Origin | Guangdong, China | Brand Name | Reidz -disco light 12v | |
| Model Number | RZ-DGY-disco light 12v |
Product Description

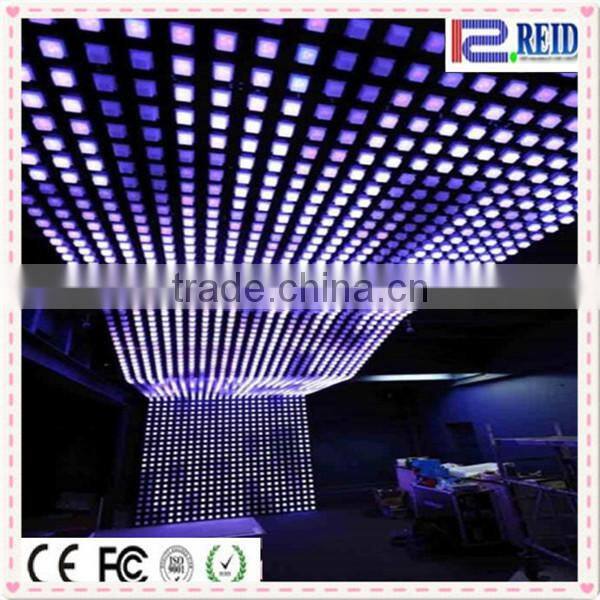

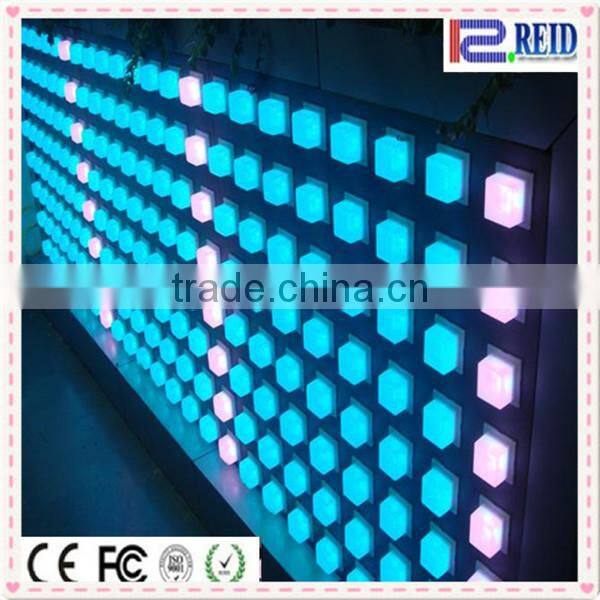

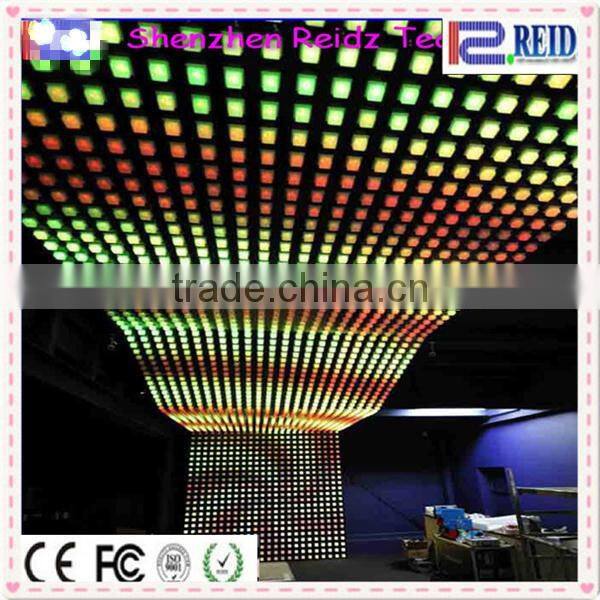

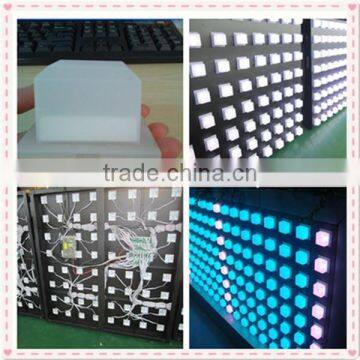

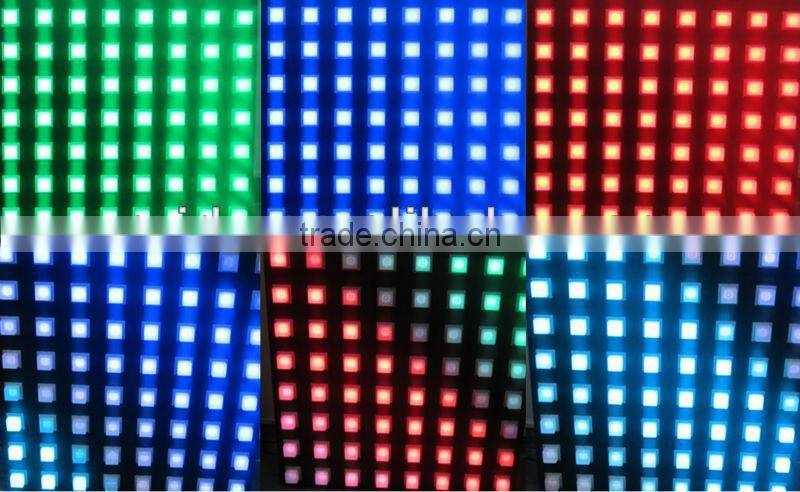

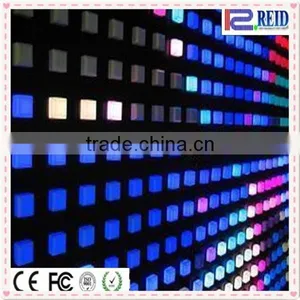

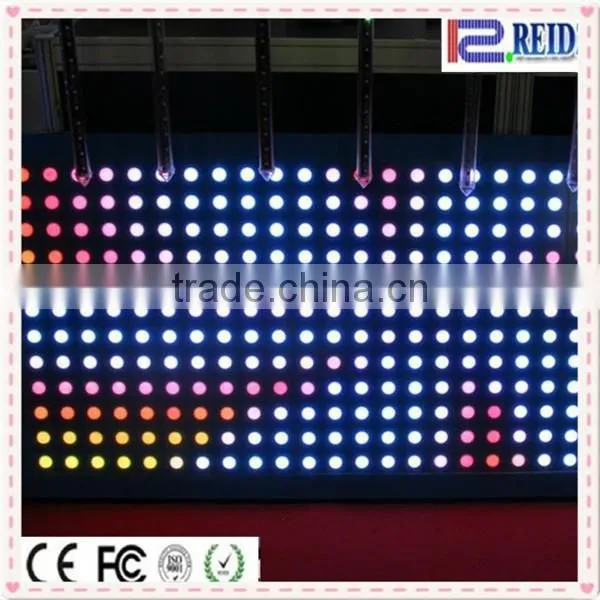

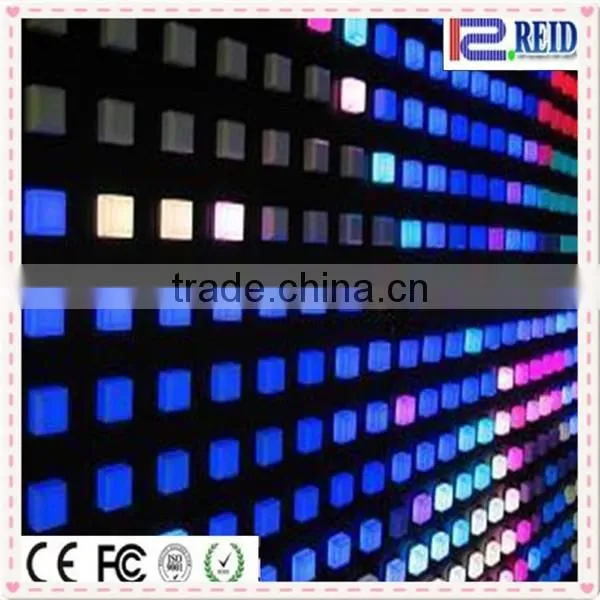

CE RoHS New IC disco wall ceiling point pixel pixel rgb hdmi led disco light 12v
Type: Outdoor&Indoor Led Pixel Light for nightclub decor
Features:
1): A new type of energy-saving and environmental protective lights.
2): Using imported ultra-high brightness chip as light soure
3): Builtin microcomputer chip, cansynchronize full-color gradual,transiting,scaning,runing wate.
4): It is a supplement for linear light soure and the floodlighting, the beautuful shape of which could meet the physical design requirements for point, line, and plane

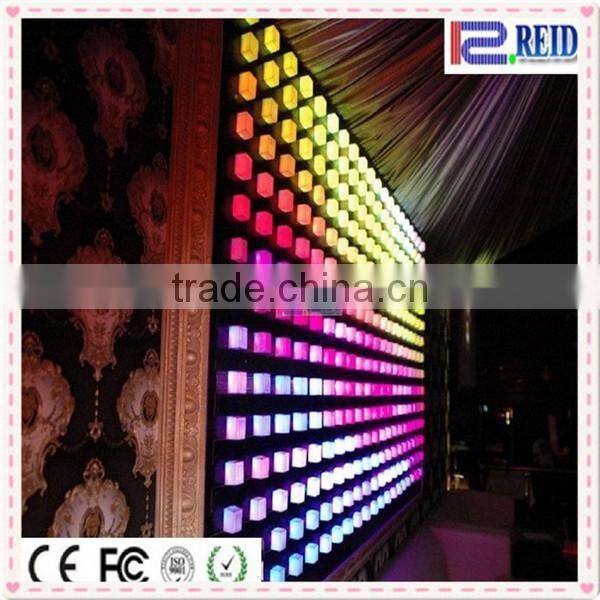

5)Used in: outdoor led video wall light is Applicable for building, amusement parks, large billboard, walls, squares, streets, bars and so on.
6. Now we have new IC WS2821 IC, the advantage is if one led is broken, it will not affect other leds, you just need to replace the broken one, no need to check which is broken, it is very conveninent to fix.
7.Size can be customized with DMX control system.
Parameter:
| 1.LED pixel light | |
| Pixel pitch | P125 |
| Pixel composition | 6R,3G,3B |
| 6R,3G,3B | R 626-628,G 518-520,B 466-468 |
| Outline dimention(mm) | 50 * 50 * 50 |
| Outline material | pc |
| Weight | 100g/pc |
| Protection grades | IP65 |
| Working temperature(ºC) | -10~+50 |
| Humidity(RH) | Up to 95 |
| Stored temperature (ºC) | -30~+70 |
| Power consumption (pcs) | 1.2W |
| Pixel wall | |
| Pixels Pitch(mm) | 125 |
| quantities in 1S.Q.M | 8(L)* 8 (H) |
| 2.Packaging | |
| Packing Way | 200pc/carton |
| Packing box material | Carton |
| Packing box size (mm) | 1000 * 500 * 300 |
| Weight of 1carton with 200pcs | 20kg |
| 3.electricity parameter | |
| Pixel density(dots/M2) | 64 |
| White Balance Brightness(cd/m2) | Max 600 Average ≥400 |
| Color temperature(K) | 5000—8000 (choice by user) |
| Brightness Adjusted | 100 grade by software, or by Auto-optic induced. |
| View Angel | Horizontal 160° Vertical160° |
| Best viewing distance(m) | 30-1000 |
| Communication distance(m) | Communication distance(m) |
| LED driving method | Constant driving current |
| Gray Grades | 256 levels for each color |
| Display Color | 127777216 |
| Refresh Frequency (Hz) | ≥400 |
| Picture display method | Dots to dots display synchronized with CRT |
| Signal interface | DVI |
| Screen Lifetime(hours) | ≥100,000 |
| Maintance way | Back-maintained, modules displaced |
| Switch power supply | Switch power supply |
| Power Consumption (W/m2 ) | Max 80, Average ≥55 |

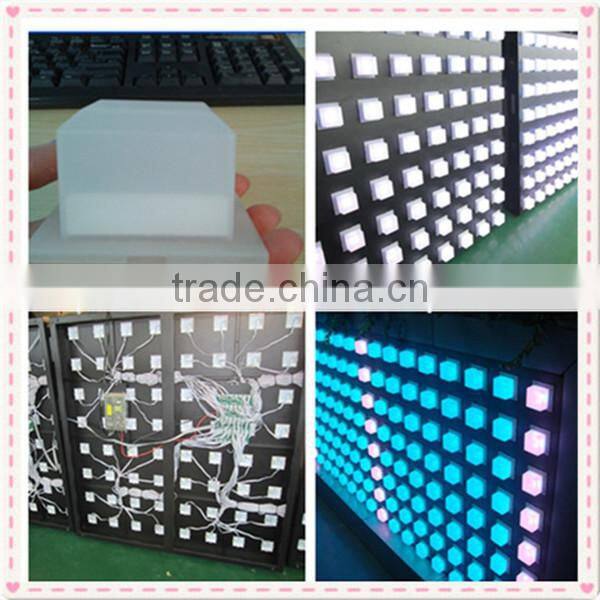

DMX control, led pixel ball light (with steel wire rope without panel, lightweight)

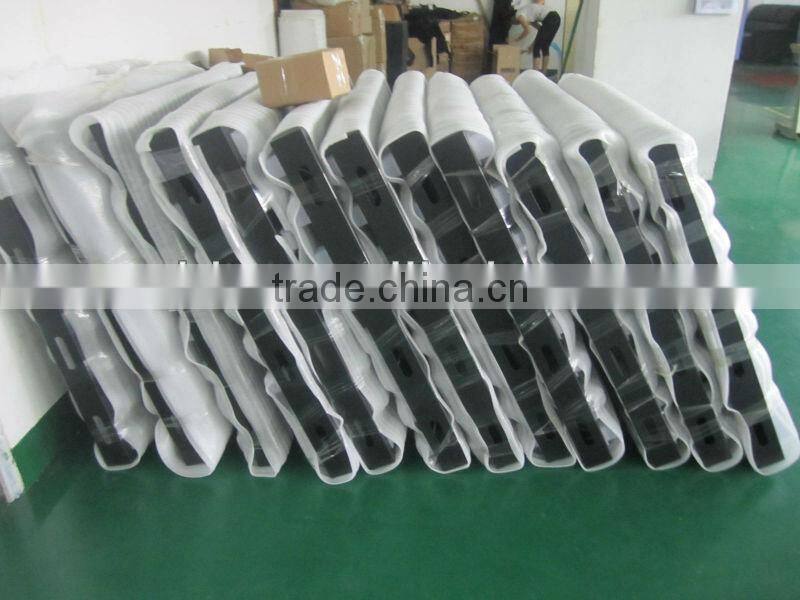

Wood case, with panels.
CE RoHS certificate, 2 years warranty.
We are a professional maufacurer specializing in led decorative products for nightclub, disco, bar, KTV,etc. decoration in China for near 8 years.
1.For the led pixel light, how many kinds do you have?
-We have DVI and DMX control system, two kinds pixel light shape.
We now has DMX, WS2821 IC, advantages is that when one led is broken, it will not affect other leds.
2.Does the led pixel light need panels?

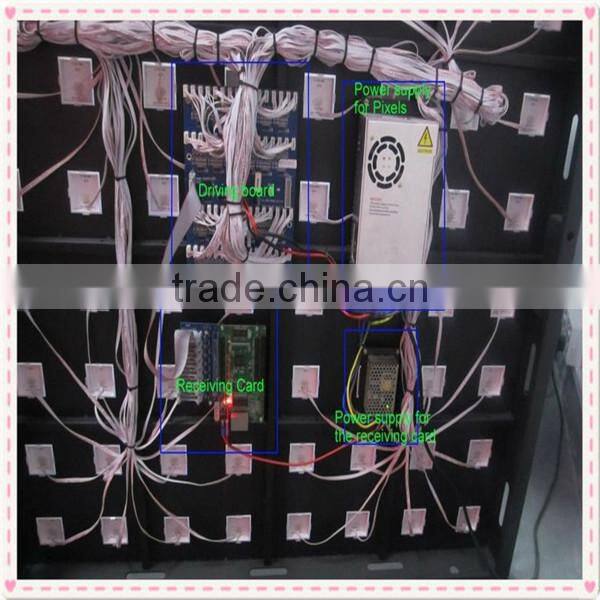

- For DVI control system, the panel is a must.

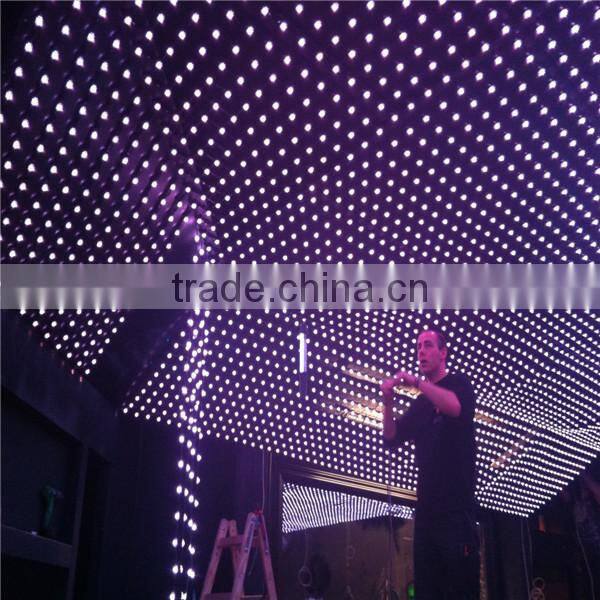

For DMX control system, without panel is ok, just need to screw the led on the wall or ceiling.
