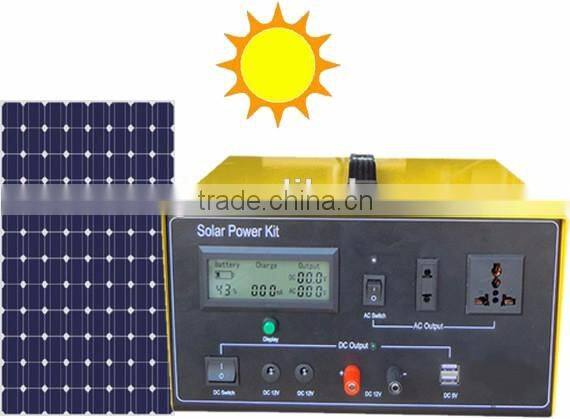

500W PORTABLE SOLAR CONTROLLER-INVERTER BOX WITH EXTERNAL BATTERY
Portable power box integrated with solar charge controller and inverter
Can be charged by solar power or other power generators
No battery inside, lightweight and safe for transportation
With several outputs: 220VAC, 12VDC, and 5V USB
Modified or pure sine wave inverter
LCD display
Compact size with handle
External rechargeable battery, 12V/40-80Ah
DC Input: 12V/10A
Output: AC220V/50Hz, 12VDC, USB5V
Protections: short circuit, over charge/discharge, over load, over temperature, reverse polarity, solar feedback circuit etc
Solar panel, recommended | 18V/60-200W | |
Battery | 12V/40-200AH | |
DC Input | Work voltage | 12V |
Input voltage | 5-21V | |
Input current | Max. 10A | |
DC output | USB5V/2A, DC12V/10A | |
AC Output | Output wave | Modified sine wave |
Input voltage | 11-15V | |
Output voltage | AC110/220V, 50Hz/60Hz | |
Rated output power | 500W | |
Max. power | 1000VA | |
Max. efficiency | 88% | |
Dimension (mm) | 278*240*172 | |
Weight (kg) | 3.6 | |
No. | Name | Function |
1 | Battery | Battery capacity display |
2 | Battery power display | Battery power lever in % |
3 | Charge | Charge status display |
4 | Current | Charge current mA |
5 | Temperature | Over temperature alarm |
6 | DC Voltage | DC output voltage V |
7 | AC Voltage | AC output voltage V |
8 | AC | AC output |
9 | DC | DC output |
