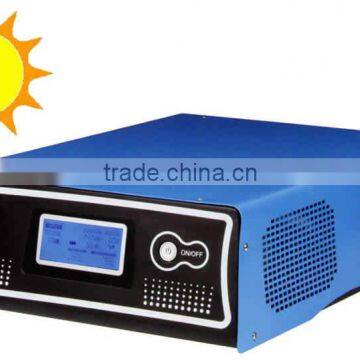

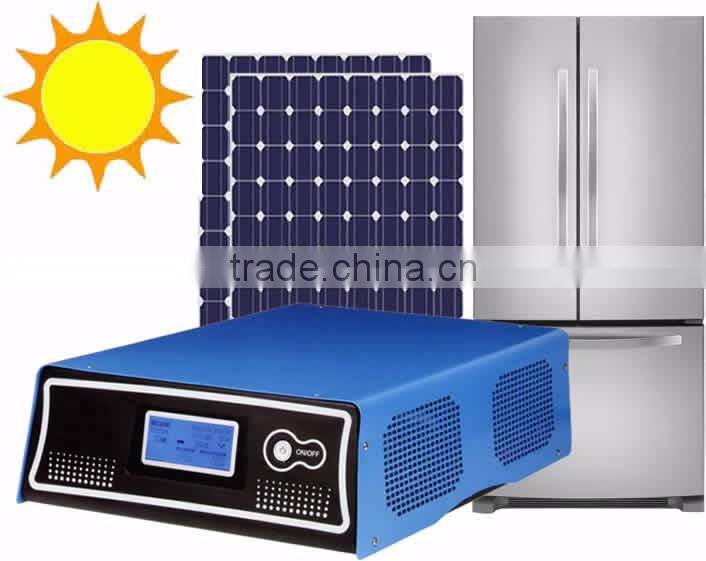

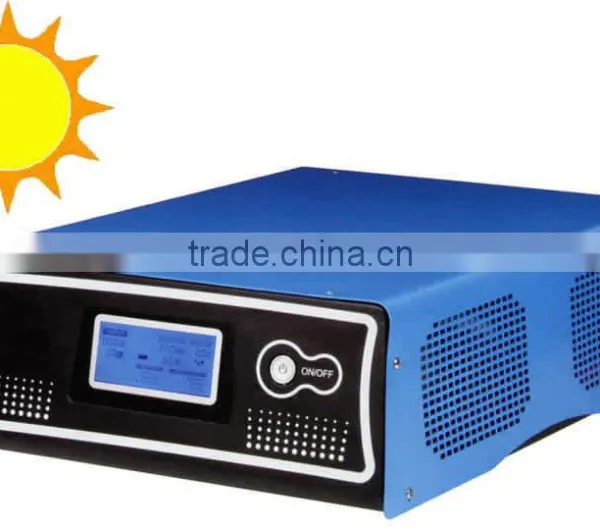

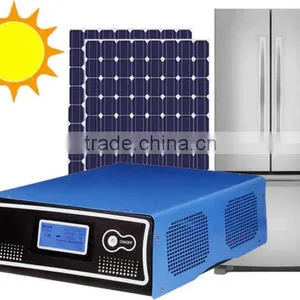

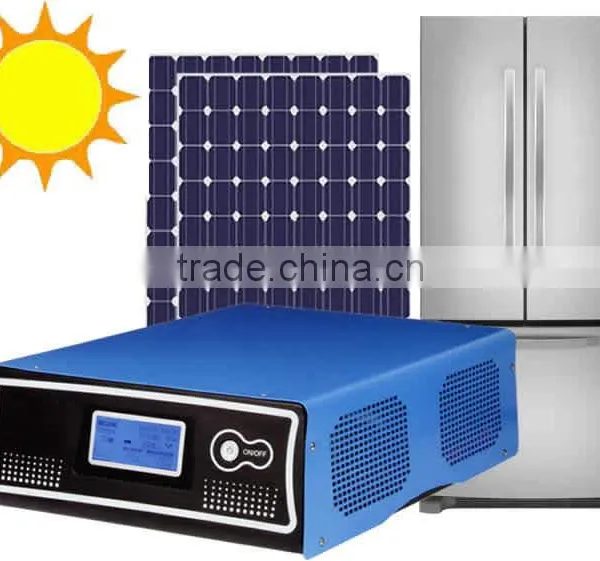

400W SOLAR REFRIGEATOR AND FREEZER

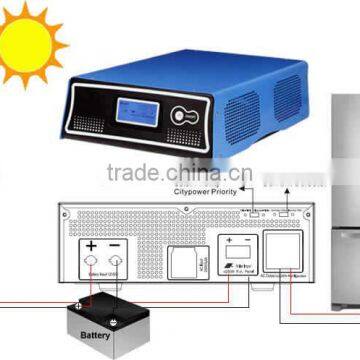

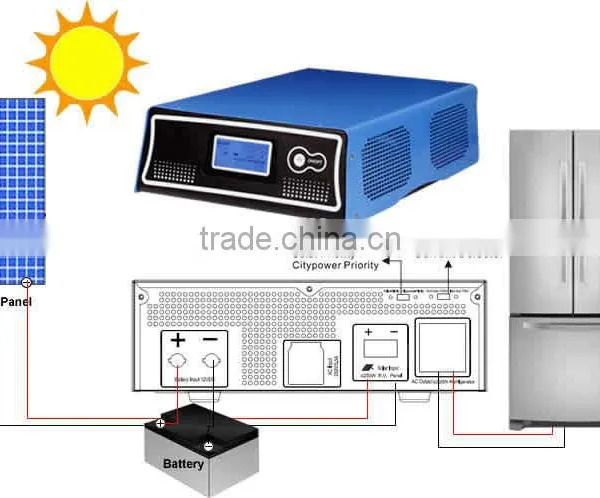

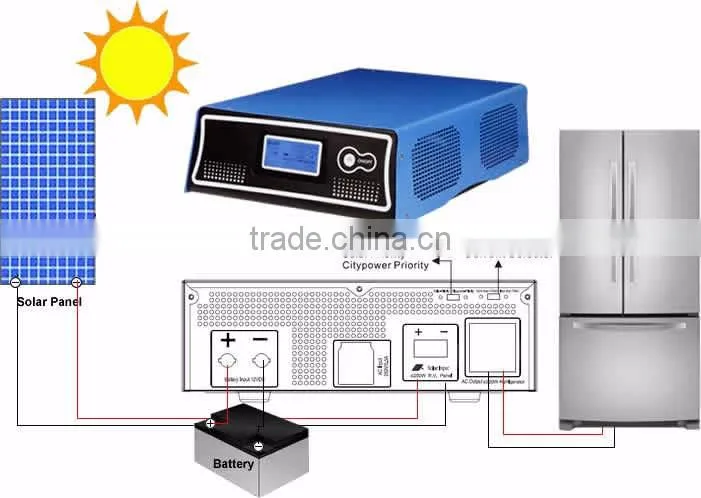

This solar controller-inverter is specially developed to run common AC refrigerator/freezer by solar power. Just connect it with solar panel and battery, and plug and play your refrigerator / freezer.
With this system, you do not need to change your refrigerator / freezer, and enjoy cool air and free energy.
The more you use, the more you save.
Main Features:
200w or 400w pure sine wave inverter
20A solar charge controller / regulator is included
High capacity against big start current of refrigerator
Solar and AC charging functions, solar first and AC next
Low self consumption
Inverter technology when refrigerator starts
High efficiency over 90%
Built-in AVR and 3A /AC charger
Multiple protections against over-charge, over-discharge, overload, short-circuit, over-temperature, PV reverse polarity etc.
TVS lightning protection.
Two models available for different compressors less than 200w and 400w
Item # | RFI-200 | RFI-400 |
Compressor | ≤ 200Watts | ≤400Watts |
Solar Panel | ||
The Maximum Power(W) (no electricity) | 150 W/18V x2pcs | 250 W/36V x2pcs |
The Maximum Power(W) (electricity more than 6 hours) | 150 W/18V x1pc | 250 W/18V x1pc |
The Maximum Current(A) | 8.01A | 8.28A |
Solar Charge Controller | ||
Rated Voltage(VDC) | 12 /24VDC Auto | |
Rated Solar Charge Current(A) | 20A Max. | |
Battery | ||
Sealed Lead Acid Battery | 12 VDC/100AH x1PCS | 12 VDC/100AH x2PCS |
Rated Battery Voltage(VDC) | 12 VDC | 2 4VDC |
AC Input | ||
Input Voltage(VAC) | 220 VAC | |
Input Voltage Range(VAC) | 110-270 VAC | |
Input Frequency Range(VAC) | 45-55Hz | |
Charge Current(A) | 10A | 16A |
Efficiency | >96% | |
Inverter | ||
Rated Output Power(W) | For Compressor Power Max.200W | For Compressor Power Max.400W |
Rated Output Voltage(VAC) | 230VAC±5% | |
Output Waveform | Pure Sine Wave | |
Transfer Time (ms) | 10ms | |
Efficiency | >91% | |
Protections | ||
Output Overload Protection | Shutdown Output After 90s | |
Output Short-circuit Protection | Shutdown When Short-circuit | |
Input Short-circuit Protection | Sound-Light Alarm(<11VDC) | |
Over Temperature Protection Recovery Temp | Shutdown Output Upon 90ºC, Recovery Lower 65ºC | |
Dimension (mm) | 390*362*200 | 490*410*200 |
Weight (kg) | 8.00 | 10.00 |
Note:
1. Solar panel and battery are not included in the prices..
2. The sizes of solar panel and battery are subject to change in accordance with actual power of refrigerator / freezer.
