800W Portable Solar Power Box for AC Refrigerator Freezer

US$ 270 - 270 MOQ: 10 Pieces

Key Specifications

Model Number:

SAC-1000-300W

Specification:

Normal

Application:

Home

Guangzhou Neerg Eco Technologies Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Model Number SAC-1000-300W

Specification Normal

Application Home

Output Voltage (V) DC12V

Load Power (W) 12V/20A

Solar Power (W) 2*150W

Work Time (h) 24 Hours

800W PORTABLE SOLAR POWER BOX FOR AC FRIDGE

4-in-1 solar power system including controller, inverter, battery and AC charger

12V/20A PMW solar charge controller

High quality pure sine waver inverter, input: 12V, output: 220V/50Hz, efficiency >90%

Deep cycle maintenance free lead-acid battery

AC charging function, when there is no sunlight, it can be charged by 220V AC grid power

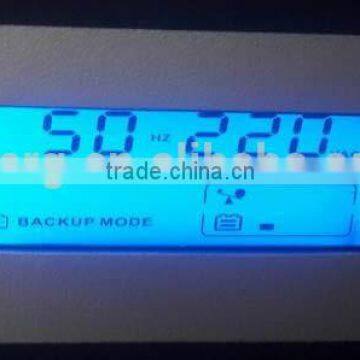

LCD display: input voltage and AC output voltage, frequency, work modes, load power level and battery power level

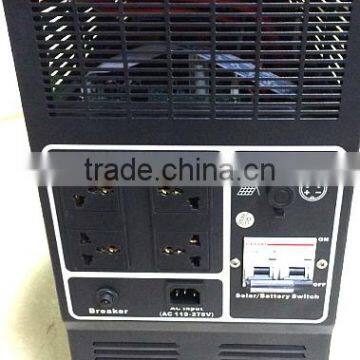

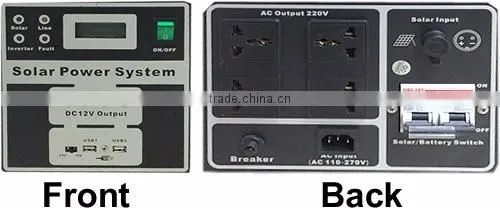

Multiple output, 2*universal AC220V outlets, 4*DC12V/5A sockets, 2*USB5V sockets for mobile charging

Two inputs: 1*solar input and 1*AC input

4 LED indicators for solar input, line (AC charging), inverter and fault

Multiple protections including short-circuit, over-load, over-temp, anti-reverse connection, overcharge, over-discharge etc.

1 main power on/off switch, 1 on/off switch for solar input and battery, and 1 output breaker for overload

Mobile and portable with 4 casters and 1 handle

Accessories: 1*AC charging cable, 1*solar input cable, instruction manual

Item #	SAC-500-150W	SAC-1000-300W
Solar Panels
The Maximum Power Of Solar Panels(W)	150 W*1pcs	150 W-*2pcs
The Short Circuit Current Of Solar Panels(A)	8.81A	8.81A
The Maximum Power Of Current Of Solar Panels(A)	8.01A	8.01A
The Open Circuit Voltage Of Solar Panels(V)	21.24V	21.24V
The Maximum Power Voltage Of Solar Panels(V)	18V	18V
Battery
Deep-cycle Lead-acid Battery	12 V/65AH *1pc	12 V/100AH *1pc
Solar Charge Controller
Rated Voltage	12V
Discharge Current	20A
Charge And Recover Voltage	13.3 V/26.6 V/ Lead-Acid
The Battery’s Overvoltage Protection And Recover	14.4 V/13.6 V
Low-voltage-off voltage range (to be set)	10.8V-11.6V
Low-voltage recovery range (to be set)	12.2V-13.2V
Inverter
Rated Output Power	400W	800W
Rated Output Voltage	220V±10%,50±2Hz
Output Waveform	Pure Sine Wave
Rated Input Voltage	12V
Under-voltage alarm	10.5±0.5V
Low Voltage Off	≤10.0V
Overvoltage Off	≥14.2V
Efficiency	≥90%
Output
AC220V Sockets	220V/1A*3pcs
DC12V Sockets	12 V/5A*4pcs	12 V/5A*4pcs
USB Sockets	5.5V/8.4V*2pcs
Accessories
Solar Panel Cable	10M*1pcs
LED illuminating Lamp (optional)	1.5W*2pcs
USB Charger	Mobile charger cable*1pcs
Lamp Wire	5M*2pcs
Utility Power Charge Wire	1.5M*1pcs
Dimension And Weight
Portable box Dimension (mm)	Box: L 500* W 220* H338,package597310479
Solar Panel Dimension(mm)	1346550351/pc
Weight (kg)	43+12 kg	53+24 kg
Discharge Time (Hours)
LED lights(3W)*1pcs	112	224
Electric Fan(12 V/30W)*1pc	11	22
TV(AC220V,LCD32inch,60W) *1pc	5.5	11
