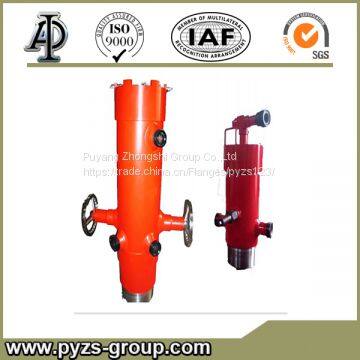

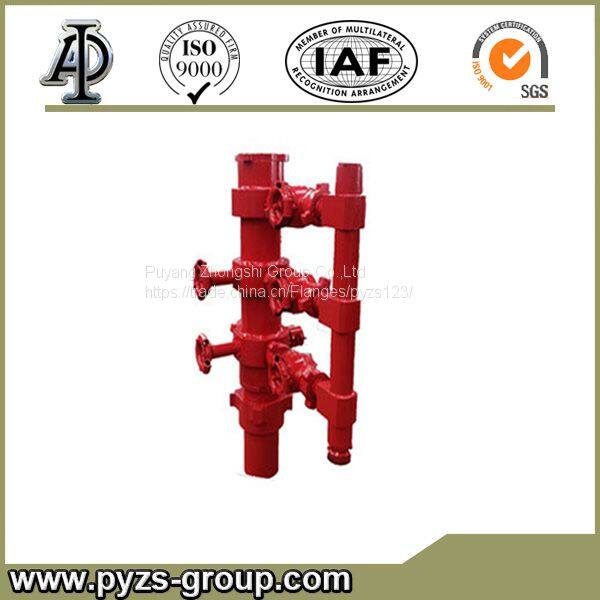

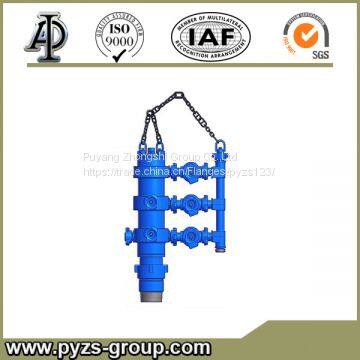

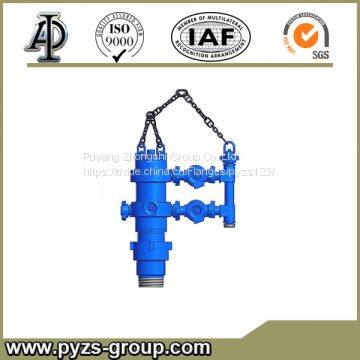

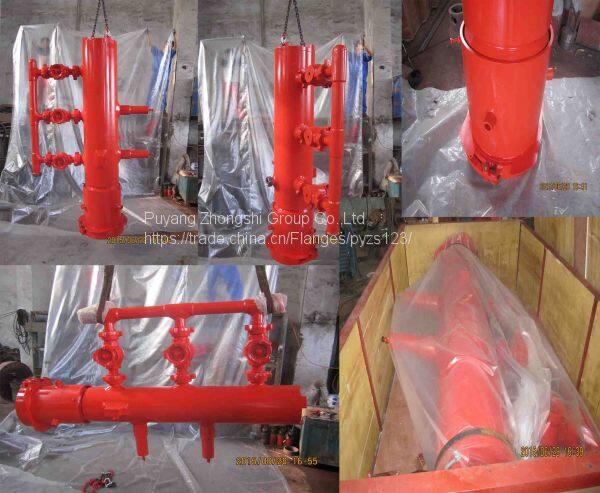

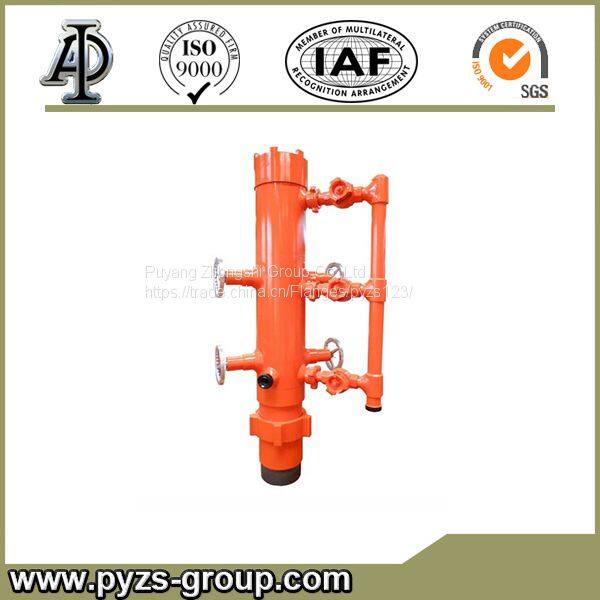

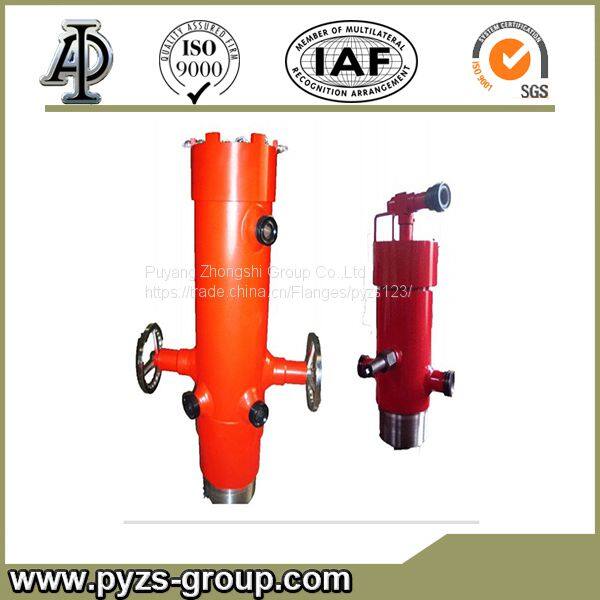

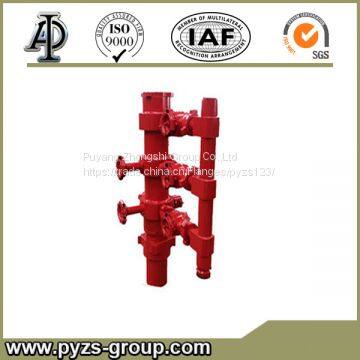

Home > Metallurgy, Mineral & Energy > Black Metal & Products > API 6 5/8''casing Double Plug Cement Head
US$ 500 - 2000
MOQ: 10 Sets
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
7 days
Related Products
Place of Origin
China
1) Application
The Cement Head is a special tool for pumping slurry and releasing plug. It makes the drilling fluid fill into casing in turn and quickly.
2) Features
a. Quick-latch adapter is designed to offer easier, faster and safer makeup for cementing casing.
b. Able to couple with two plugs simultaneously. Simplify the cementing operation and prevent cement pollution.
c. Positive lever indicates plug releasing.
d. Balance pipe is developed.
3) Technical Parameters
Specifications, mm | Φ139.7 | Φ177.8 | Φ193.7 | Φ244.5 | Φ273 | Φ339.7 |
Overall-length,mm | 1950 | 2020 | 2020 | 2360 | 2360 | 2440 |
Manifold | 2'' Union | |||||
I.D. of plug container, mm | Φ125 | Φ160 | Φ175 | Φ225 | Φ250 | Φ320 |
Length of plug container, mm | 400 | 450 | 450 | 550 | 550 | 600 |
Working Pressure, Mpa | 35.5 | 35.5 | 35.5 | 35.5 | 35 | 35 |
