Hot sale rock drill gasoline rick drill hand-held rock drill
Description:

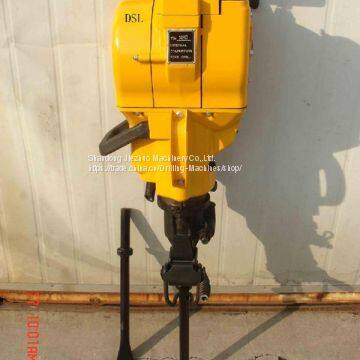

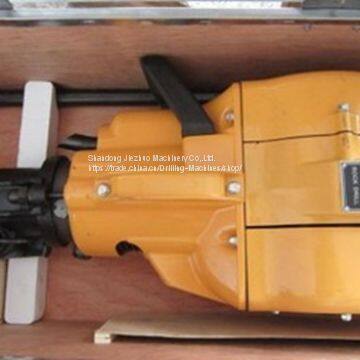

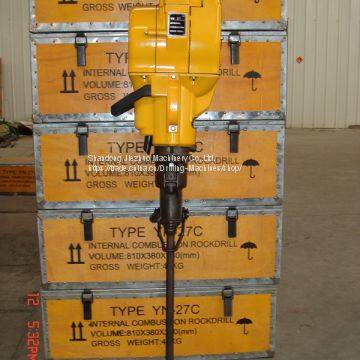

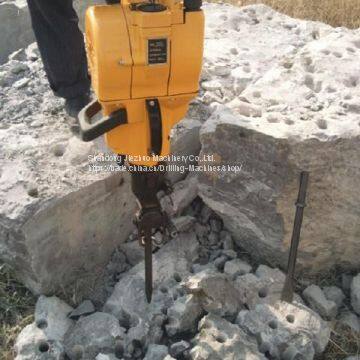

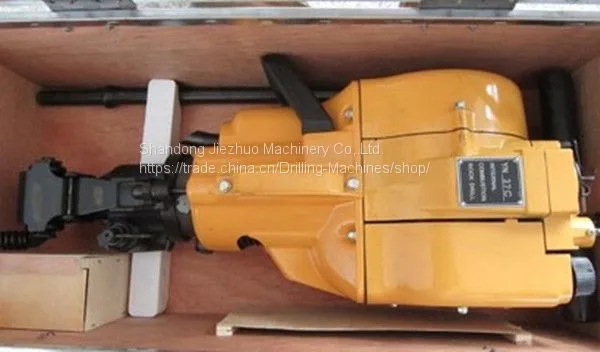

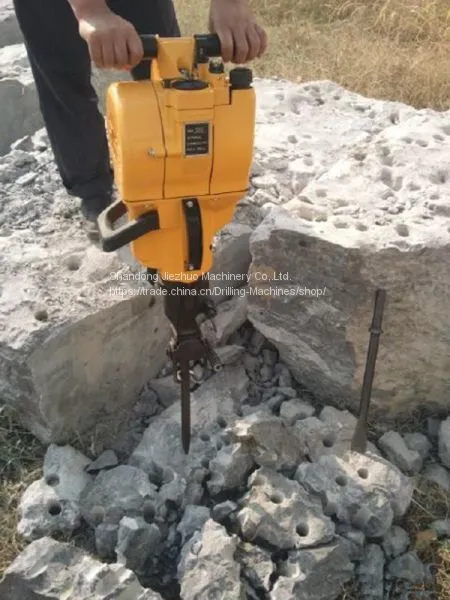

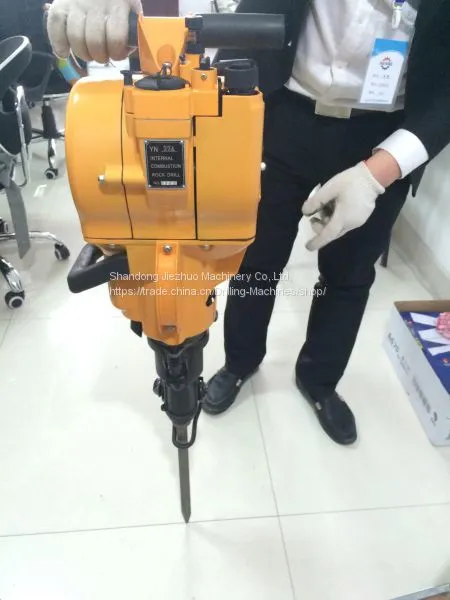

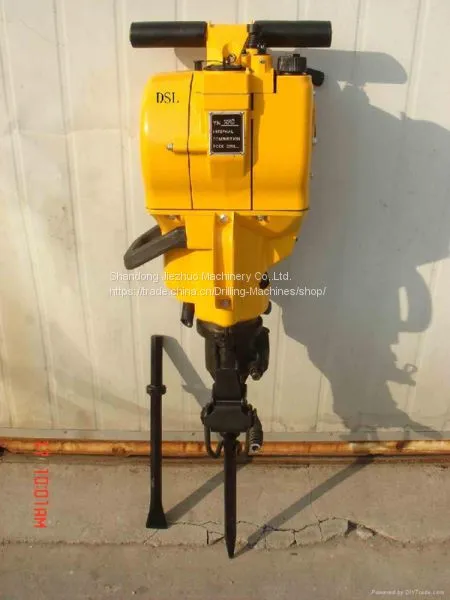

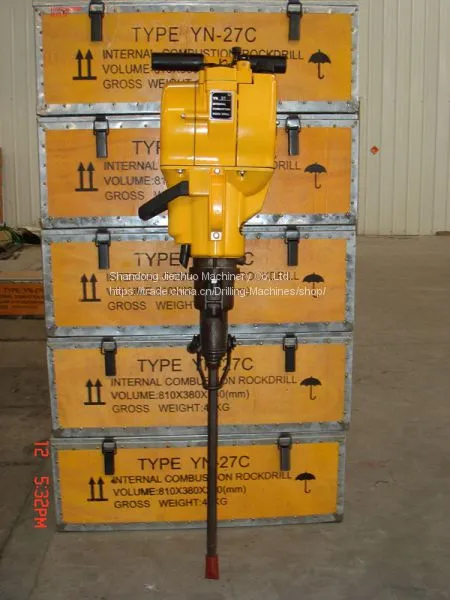

YN27 Rock Drill is a very efficient machine,composed of gasoline engine, Air pump, rock drill. It adapts to these outside situations without water and electronic power. Meanwhile it is a hand- held drill, during operation,rock power is blown away by the compressed air produced by the machine itself. .Its suited to work on high mountains, plains, hot and cold area with no power and no water supply and air compressing equipment, and especially suits the projects that the machine has to be carried at any time and in any area.
Main Characteristics
1. Easy to operate, just turn the handle to make it work.
2.Time and labor saving, drilling fast and high efficiency.
3. First-class level drilling tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain
and plain, extreme temperature (40 to -40).
4.Used to drill vertical downward hole(max depth 6) and and <45° upward hole.
5.Light drilling tools, only 27kg, easy to carry.
Maine Parameters:
Weight of main machine | 27kg |
Overall dimensions(L*W*H) | 746*315*229mm |
Cylinder diameter*stroke of piston | Φ58*70mm |
Rotation speed of engine | ≥2450rpm |
Displacement of engine piston | 185cm³ |
Type of carburetor | hand needle valve, float-less type |
Ignition system | controllable silicon, contact-less system |
Drilling speed (mean value of five holes) | ≥250mm/min |
Drilling hole diameter | Φ28-42mm |
Max drilling depth | 6m |
Fuel consumption | ≤0.12L/m |
Tank capacity | ≥1.5liter |
Drill rod and breaker shank | Hex22*108mm |
Rotating speed of drill rod | ≥200rounds/min |
Clearance of spark plug | 0.5-0.7mm |
