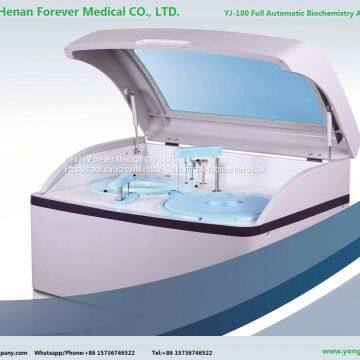

Medical Hospital Laboratory Clinical Chemistry and Biochemistry Analyzer
US$ 48000 - 59999
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Forever Medical
Place of Origin:
China
Model Number:
YJ-180
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days
Related Products
-
Clinic Laboratory Fully-Automatic Chemistry Biochemical Analyzer With Touch ScreenUS$ 48000 - 59999MOQ: 1 Unit -
Medical Hospital Laboratory Clinical Chemistry and Biochemistry AnalyzerUS$ 3850 - 49999MOQ: 1 Unit
-
Clinic Automatic Chemistry Biochemistry Analyzer Chemistry AnalyzerUS$ 3850 - 49999MOQ: 1 Unit
-
Fully Auto Chemistry AnalyzerUS$ 3850 - 49999MOQ: 1 Unit
-
Automatic Blood Chemistry Analyzer 200 Tests/H Fully Automatic Biochemistry Analyzer With CeUS$ 3850 - 49999MOQ: 1 Unit
Brand Name
Forever Medical
Place of Origin
China
Model Number
YJ-180
Type
Biochemical Analysis System
High End Full Automatic biochemistry analyzer Specification: Throughput constant 180 T/h or 300T/h,best for middle or small size hospital
Closed integrated photovoltaic systems, no mechanical parts,maintenance free
Minimum reaction volume is 150ul,cost saving
Discrete,random access,automatic
Random choice of method, the real discrete automatic chemistry analyzer
This automatic chemistry analyzers have gained a lot of national patents during the researching.
| Model | YJ-180 | |
| Analyze Unit | Throughput | Constant 180T/h (non-ISE) |
| Theory | Absorption spectrometry, transmission turbidimetry | |
| Methodology | End-point Fixed-timeKineticIon selective electrode | |
| Test according set up, random access | Reaction plate | Contain 81 reaction cuvettes |
| Maximum reaction time | 15 minutes | |
| Minimum reaction volume | 150 ul | |
| Material of cuvettes | Special UV-transparent optical glass | |
| Cuvettes use | Automatically cuvettes washing | |
| Optical Unit | Light Source | Halogen-tungsten lamp |
| Photometer | Reversed optics | |
| Wavelength | 340nm-900nm wavelength option | |
| Absorption | 0-4 Abs | |
| Reagent Unit | Reagent plate | 60 reagent positions ,support for single and double reagent, reagent completely open |
| Reagent storage temperature | 2~10 degree | |
| Reagent bottle | 15ml, 20ml, 30ml, 50ml or 70ml ,dead volume is less than 1.0 ml | |
| Reagent volume | 20-500 ul, step by 1.0 ul | |
| Reagent/Sample Probe | Automatically checked ;Patent technology liquid level detection;Collision protection probe cleaning:Automatic washing for both inside and outside. | |
| Sample Unit | Sample plate | 60 sample positions |
| Sample type | Human (animal) serum plasmaurine etc. | |
| Samples cup | Support one-off micro cups | |
| Sample volume | 2-100 ul, step by 0.1 ul | |
| Sample/reagent probe | Automatically checked ;Patent technology liquid level detection;Collision protection probe cleaning:Automatic washing for both inside and outside. | |
| Temperature control Unit | Heating method | Direct thermal solid thermostat closed |
| Temperature equilibrium time | ||
| Reaction temperature | 37 ±0.1 degree | |
| Temperature fluctuation | ±0.1 degree | |
| Operation Unit | Software | WindowsXP 2000 |
| Database | SQL Server | |
| Data Storage | Automatic store & copy; No time and volume limit; Lifetime preservation | |
| Print format | Can be set up, offer several standard format | |
| Calibration mode | Linear curve type: Single-point linear, two-point linear and multi-point linear none linear; Curve type: Logistic-Log 4P,Logistic-Log5p,Spline,index automatically use best calibration curve and standard | |
| Quality control methods : | Real time, within day & between day | |
| Quality control diagram | L-J cumulativetwin plot | |
| Status display | Real time monitoring of reagent residual volume .Running status of reagent tray, samples tray | |
| Adjustment | Dynamic and real time display of running status; Intelligent carry over settings to adjust test sequence; original reaction data record; Detail profile of alert messages | |
| Setting | Operation permission setting, Item setting, cross pollution setting, cuvette blank setting | |
| Others | Water consumption : | Power Supply :AC 220V±22V 50Hz±1Hz |
| Frequency :Maximum 600VA | Dimension :782mm×581mm×545mm | |
| Net Weight : 60kg | Accessory :Software | |
Note:We provides you with 12-24 months free repair guarantee for main unit, 12 months free repair guarantee for probe and 6 months free repair guarantee for the optional parts respectively.More information for our products and service,please turn to our official website or contact us directly.
