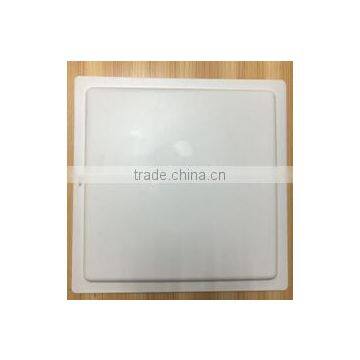

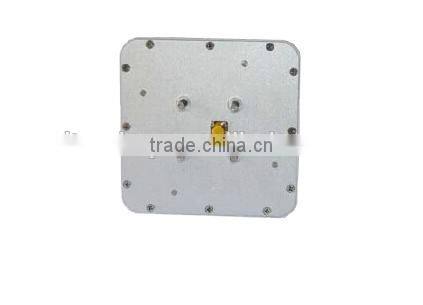

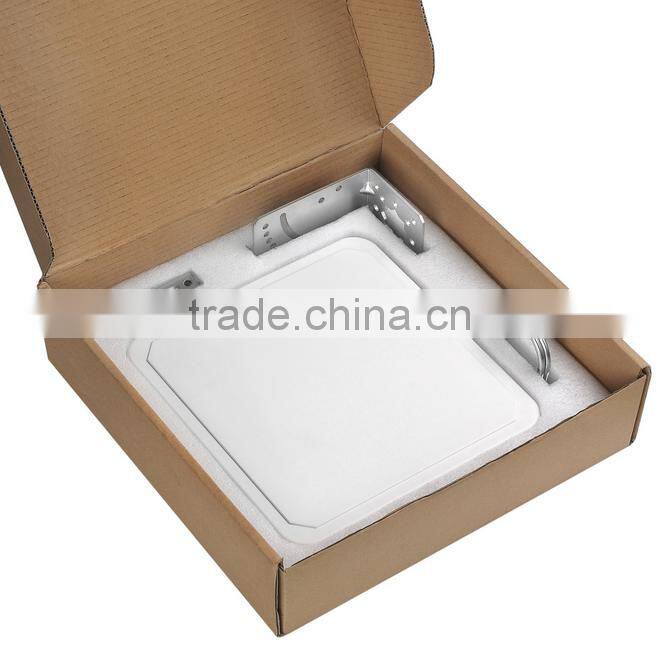

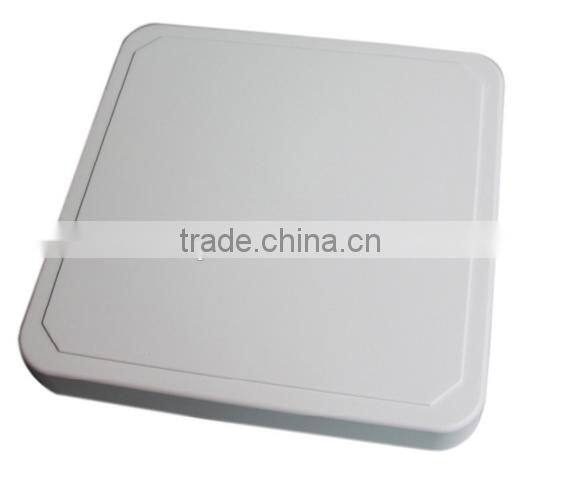

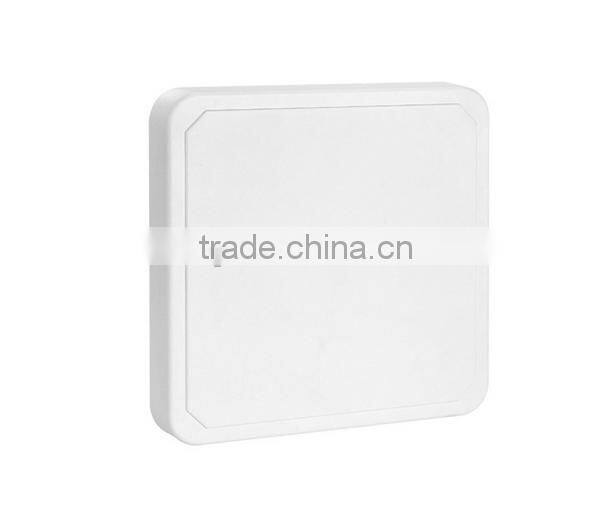

Hot Selling 902~928MHz RFID plate tv antenna
Electrical Specifications | ||
Frequency Range(MHz) | 902~928 | |
Gain(dBi) | 15 | |
Max VSWR | ≤1.5 | |
Polarization Type | Vertical polarization | |
Horizontal Beam width(°) | 90±15° | |
Vertical Beam width(°) | 60±15° | |
Front to Back Ratio(dB) | ≥10 | |
Inter-modulation IM3(2×33dBm) | / | |
Max Input Power(W) | ≥50 | |
Input Impedance (Ω) | 50 | |
RF connecter | SMA-KY | |
Lightning Protection | The dc grounding | |
Mechanical Specifications | ||
Antenna Dimensions(mm) | 443×443×39 | |
Color | white | |
Radome material | ABS | |
Shezhen Letengxuan Technology is the professional supplier for all kinds of consumer electric products for years, such like electric scooters, tv antennas, set top boxes, power banks, speakers and so on. We have all accessory certifications such as CE, ISO, FCC, RoHs etc certifications.
Our core value is best price , best quality, best service. We're always here looking forward to doing our best to support your requirements.
