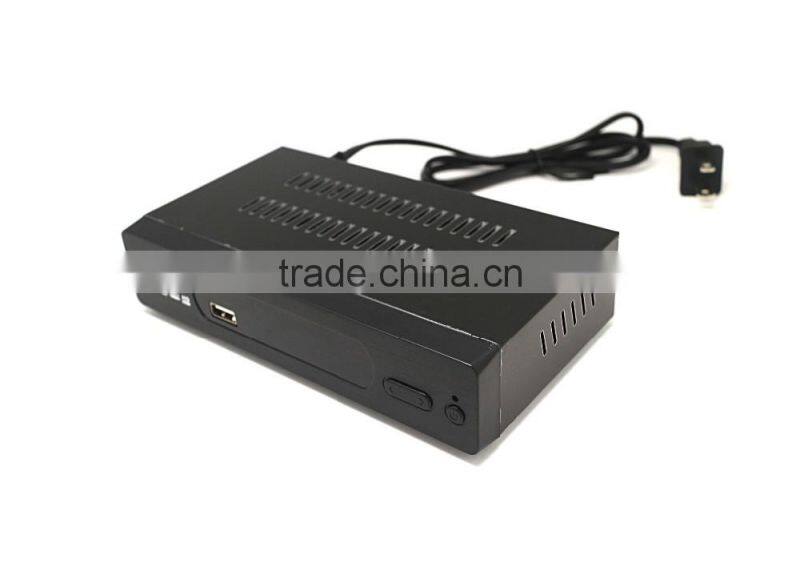

Hot HD ATSC Converter Digital SET TOP BOX For Wholesale M3 Atsc tv Box
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
M3 atsc
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Direct DVB-S2/DVB-T2/DVB-T/Mobile TV Receiver Powervu Satellite TV DecordeNegotiableMOQ: 1000 Pieces -
Cheap Factory Wholesale Price ISDB-T Set Top Box ISDB-T PVR Zapper MSTAR Set Top Box HD TV Decorder For South AfricaNegotiableMOQ: 1000 Pieces
-
Chinese Factory Direct Ultra HD TV Receiver DVB-S2/DVB-T2 TV Decorde Iptv DVB-S2 Satellite TV BoxNegotiableMOQ: 1000 Pieces
-
Best-selling K1 Android DVB-T2 Set Top Box AML 805 Android 4.4 Smart TV Box K1 Hybrid Android TV Box Shenzhen FactoryNegotiableMOQ: 100 Pieces
-
Hot-selling Android DVB-T2 Set Top Box AML 805 Android 4.4 DDRII 1GB 8GB Flash K1 Hybrid Android TV Box Wholesale PriceNegotiableMOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
M3 atsc
Hot HD ATSC Converter Digital SET TOP BOX For Wholesale M3 atsc tv box
Product Description
| The Important Features of HD ATSC Converter Digital SET TOP BOX | |||||
| * CHipset :MSTAR-MSD7802(128 pin) MIPS 34Kf@550MHz | |||||
| 2. Memory: 32X16Mbit DDR2 Frequency1066 | |||||
| 3.Flash: 32M bytes | |||||
| 4.Demodulator Type: MSB1237 Chip Set | |||||
| 5.TUNER:Rafael R820T2 | |||||
| 6.USB 2.0:Embedded One Host, | |||||
| 7.Front Panel:4-digit LED display on front panel ; RED LED Standby,GREEN LED Lock | |||||

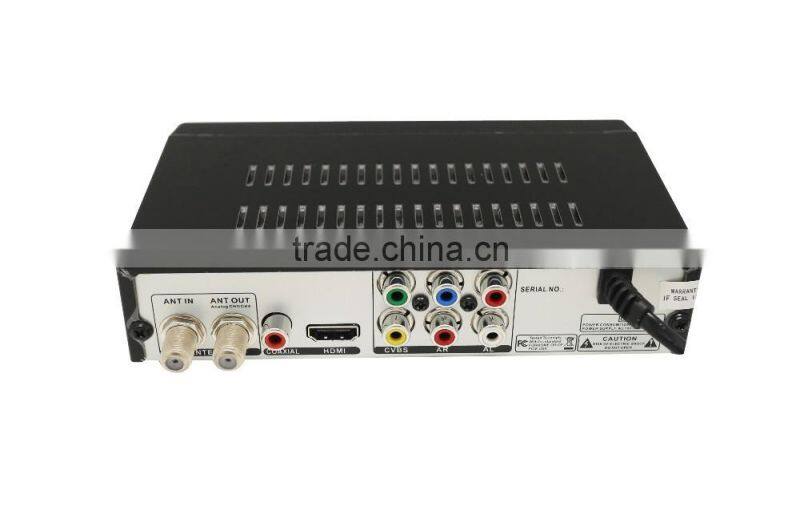

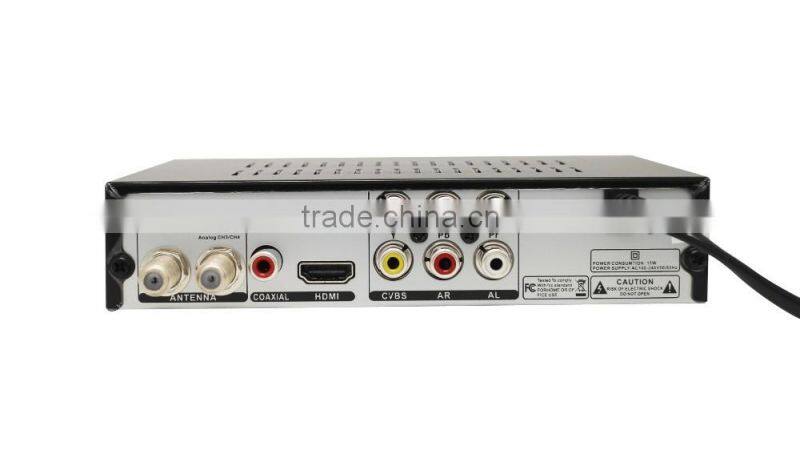

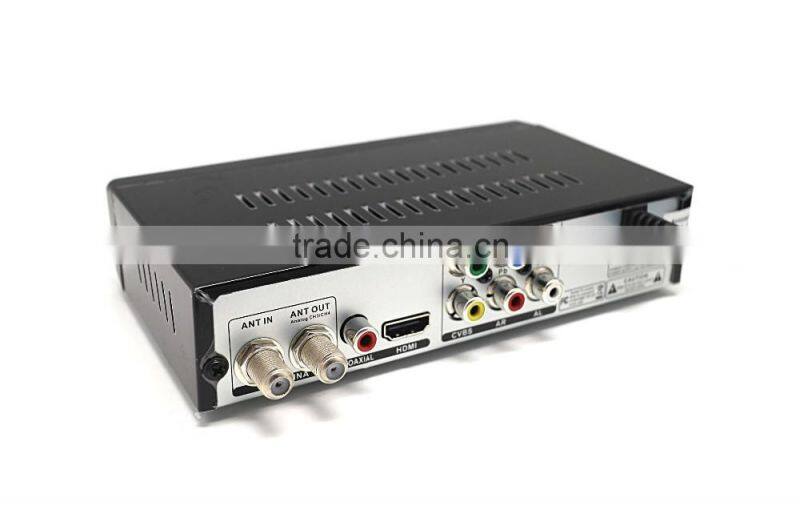

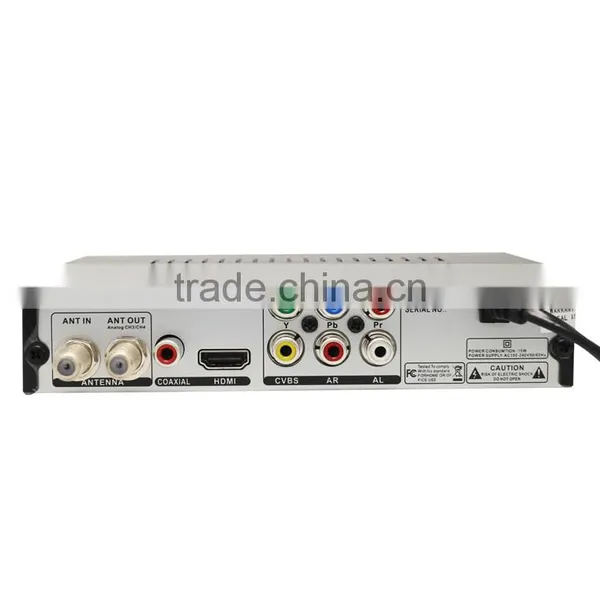

| Rear Panel of HD ATSC Converter Digital SET TOP BOX | |||||
| Tuner RF input connector | |||||
| Tuner RF Loop through connector | |||||
| HDMI V1.3 | |||||
| AV RCA x1 | |||||
| Ypbpr RCAx1 | |||||
| Coaxial x1 | |||||
| Power AC100~240V 50Hz/60Hz | |||||
| Demodulation of HD ATSC Converter Digital SET TOP BOX | |||||
| Standard ISO/IEC 13818-1; ARIB STB-B10 | |||||
| Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel) | |||||
| ATSC NTIA and 8VSB Standard | |||||
| QPSK, 64QAM, 256QAM | |||||
| FEC: 1/2, 2/3, 3/4, 4/5,5/6, | |||||
| Guard Interval: 1/4,1/8,1/16,1/32,1/128 | |||||
| FFT Mode: 2K, 8K, 32K | |||||
| RF input frequency: 54-803MHz | |||||
| Bandwith: 6MHz | |||||
| Input level: -83 - -5dBm | |||||
| Video Decoding of HD ATSC Converter Digital SET TOP BOX | |||||
| Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 | |||||
| MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) | |||||
| MPEG-2 Main Profile# Main Level(15Mbps) | |||||
| H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) | |||||
| Audio Decoding of HD ATSC Converter Digital SET TOP BOX | |||||
| MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA | |||||
| E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding | |||||
| MediaCode:avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc | |||||
| Sortware Features of HD ATSC Converter Digital SET TOP BOX | |||||
| USA ATSC 8VSB /64/256 QAM digital broadcast HD receiver | |||||
| Converts digital broadcast to your analog TV | |||||
| By remote control to choose the RF 3/4 ch output | |||||
| Sleep Timer | |||||
| Support teletext/subtitle/muti-language | |||||
| Powerful and highly effective 7-day EPG function | |||||
| AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full | |||||
| 16:9 Wide Screen: | |||||
| USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | |||||
| Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P | |||||
| Standard accessories of HD ATSC Converter Digital SET TOP BOX | |||||
| Remote control (without battery)*1 | |||||
| User manual*1 | |||||
| Gift box*1 | |||||
| Customised LOGO: | |||||
Acceptable for own LOGO (one color screen printing) | |||||
| Once your order Q'ty reach 2000pcs above | |||||
| Payment: | |||||
| 30% deposit upon P.O. confirmation, balance before shipment | |||||
| Warranty: | |||||
1 year manufactory warranty since the delivery date not including man-made damage. |

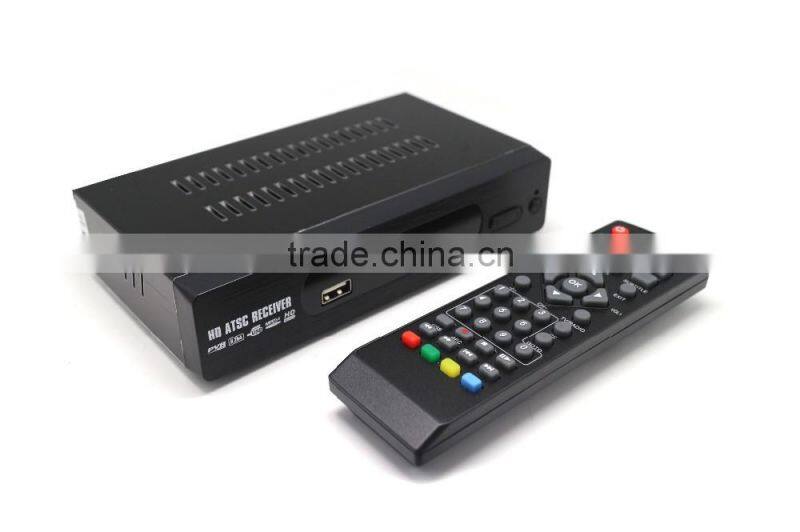

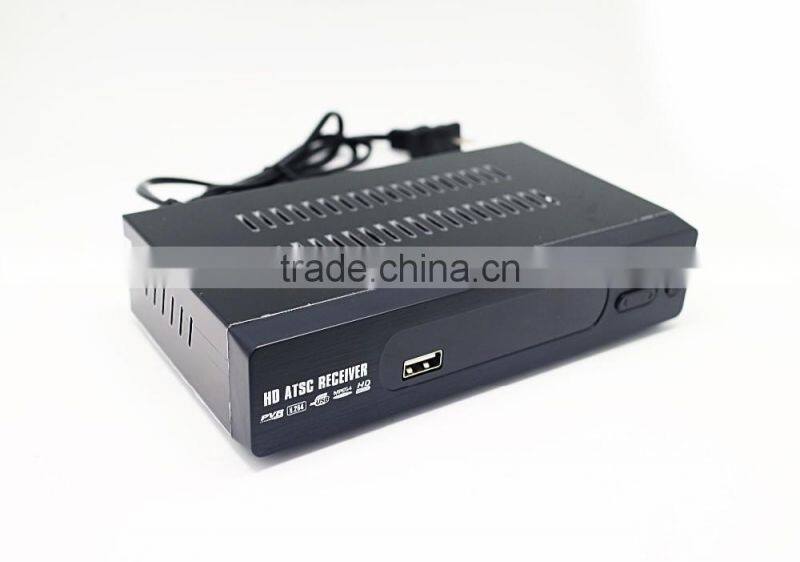

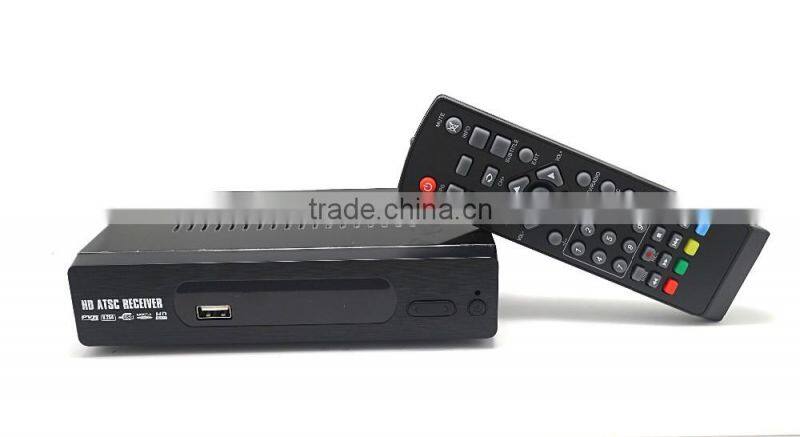

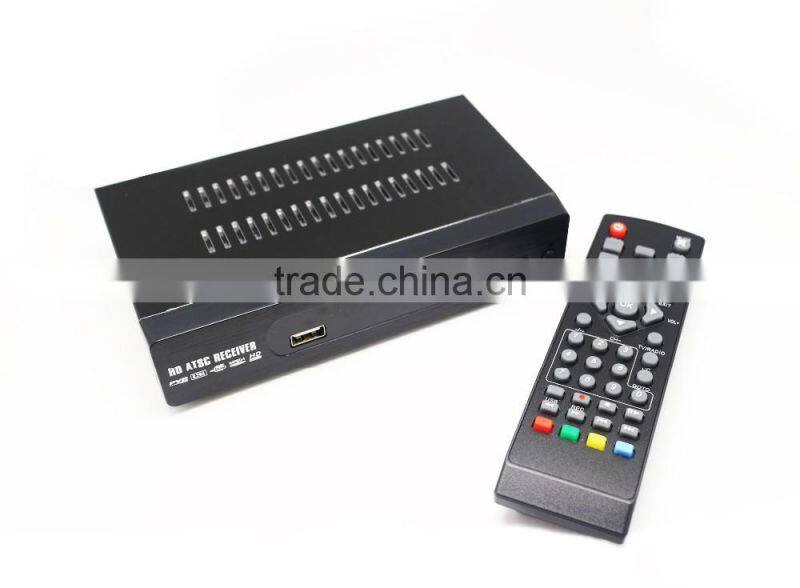

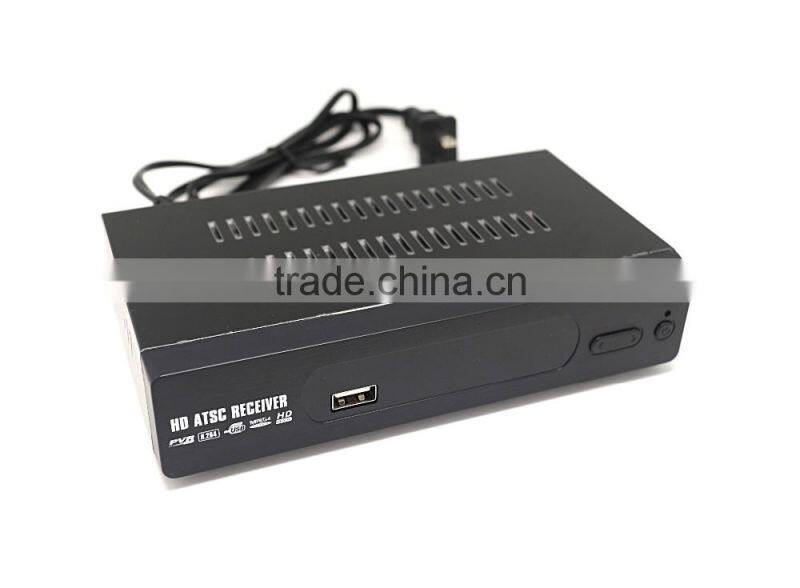

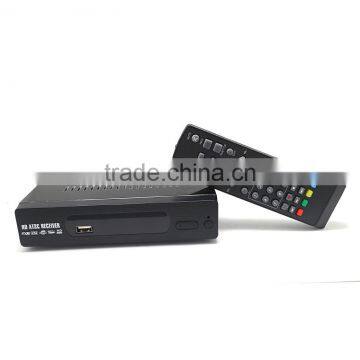

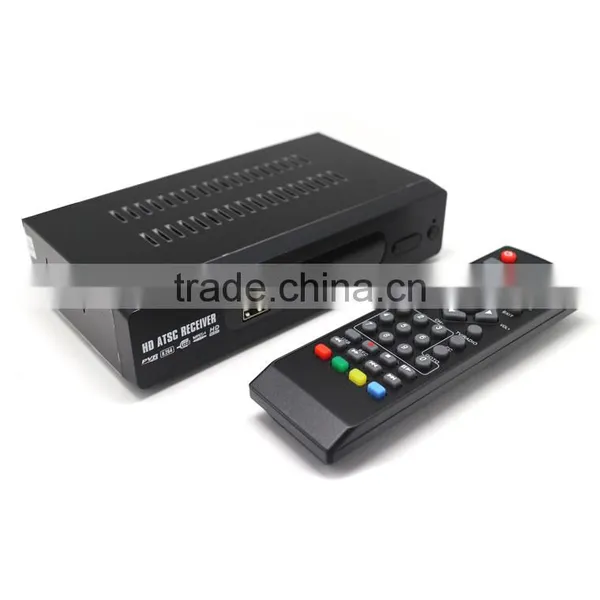

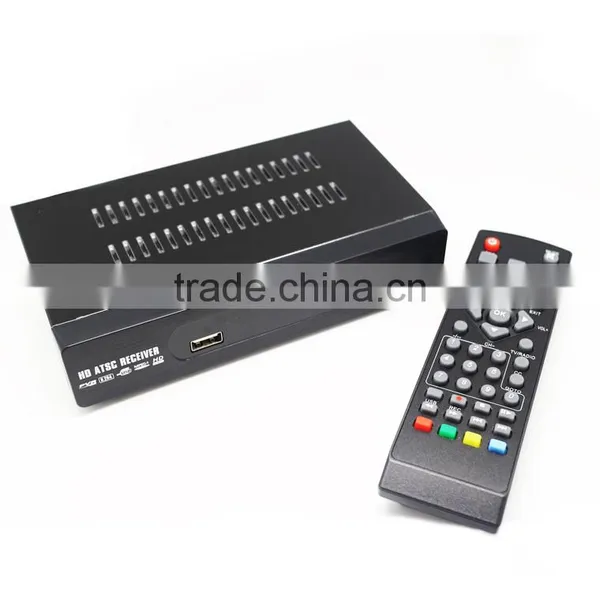

Photoes
Packaging & Shipping
Gross weight: 15.2kg;
20pcs /carton.
20GP : 7680 sets ;
40GP: 16000 sets ;
40HQ: 20000sets
Company Information
Shezhen Letengxuan Technology is the professional supplier for all kinds of set top box , DVB-T/T2/S2/C, Or Android set top boxes for years. We have all accessory certifications such as CE, ISO, FCC, RoHs etc certifications.
