Home > Electrical & Electronics > Telecommunication & Broadcasting > Set Top Box > Quad-core Android 5.1.1 TV BOX SOUND BAR TV Decoder IPTV Set Top Box
Quad-core Android 5.1.1 TV BOX SOUND BAR TV Decoder IPTV Set Top Box
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
KS2
Payment & Shipping
Payment Methods:
Port of Shipment:
sz
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wholesale HD DVB-T2 MPEG4 TV Receiver Free To Air Dvb-t2 TV BOXNegotiableMOQ: 1000 Pieces -
Factory Directly HD MPEG4/H.264 DVB-T2 TV Receiver Fully HD DVB-T2 FTA TV BOXNegotiableMOQ: 1000 Pieces
-
X96 Android 6.0 TV Box 1G/8G Amlogic S905X Chip 4K Kodi Full HD Smart Media Player X96 Set Top BoxNegotiableMOQ: 100 Pieces
-
Top Selling X96 Amlogic S905 Android 6.0 2GB+16GB TV Box Kodi Full Pre-Loaded For WholesaleNegotiableMOQ: 100 Pieces
-
New Gen.3 S900 Pro Bluetooth Ubox3 Android 6.0 Octa Core 1/16GB Smart TV Box Free Channels In USA, Arabic, Japan, India, ItalyNegotiableMOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
KS2

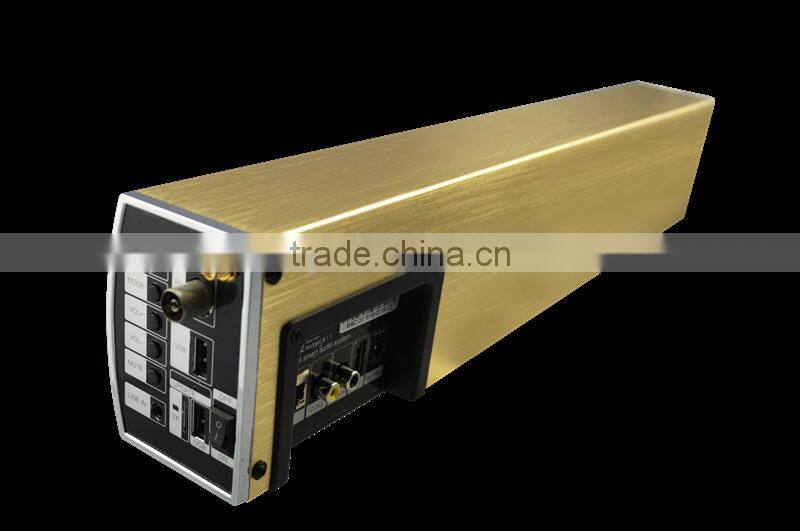

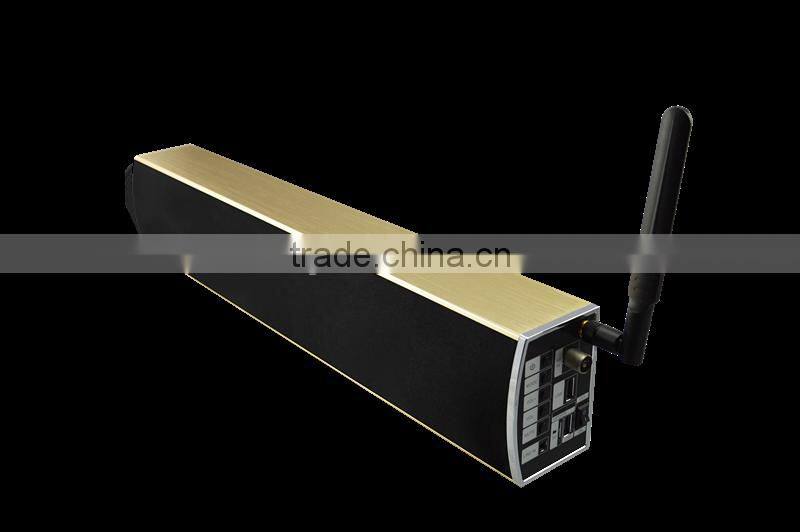

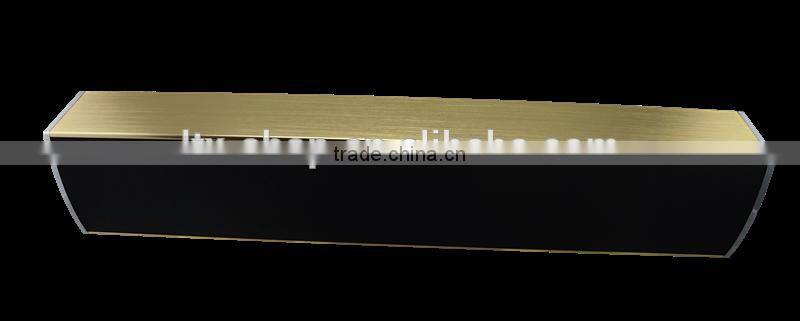

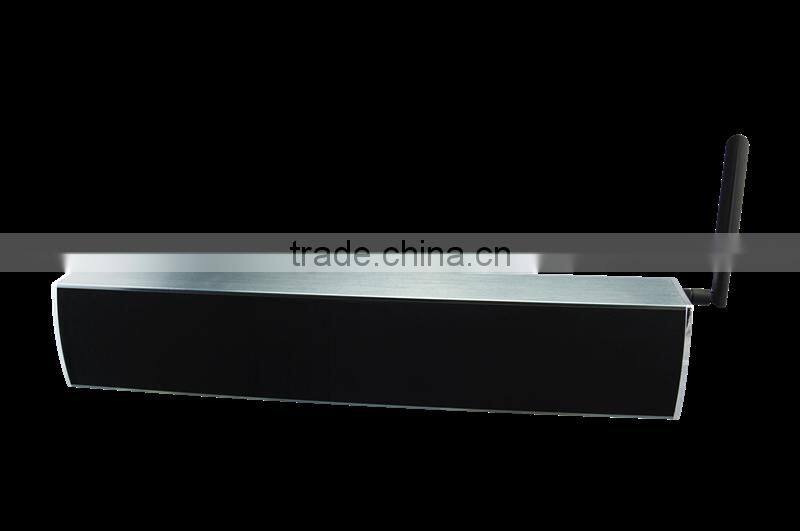

Quad-core Android 5.1.1 TV BOX SOUND BAR TV decoder IPTV set top box
Product Description
| CPU | Amlogic S905 Quad-core 64-bit ARM® ™-A53 up to 2GHz | |||
| GPU | Penta-core ARM® Mali™-450 | |||
| 3D Graphics | OpenGL ES 1.1/2.0 and Open VG 1.1 support | |||
| Video | UHD 4K 60fps HW decoding, supports multiple formats including H.265 10-bit, H.264 and AVS+FHD 1080p 60fps HW encoding, supports H.264 | |||
| RAM | DDRIII 1GB | |||
| ROM | Flash 8GB ( 4~32GB Optional ) | |||
| WiFi | Built in 2.4G WiFi Support IEEE 802.11 b/g/n | |||
| Blutooth | Bluetooth 2.1 | |||
| IR | Infra Remote control | |||
| Mould | Private Tooling | |||

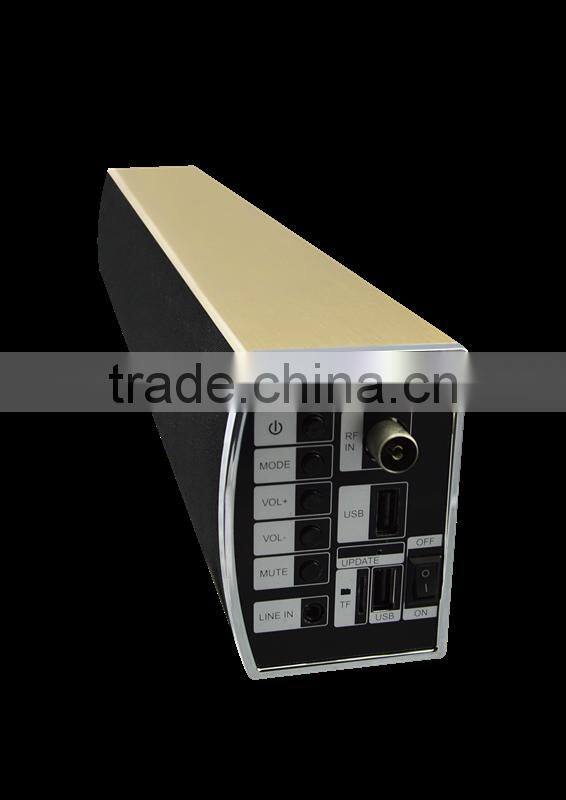

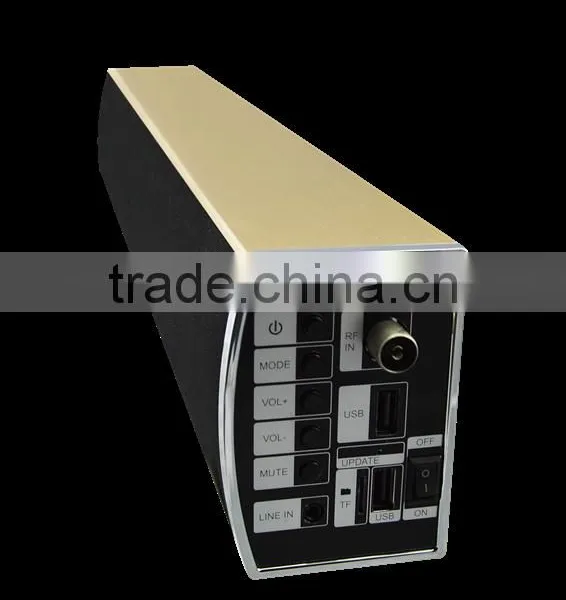

| Port | HDMI 2.0 | 4K/2K HDMI2.0 , HDCP2.2 | ||
| 2*USB HOST | 2 High speed USB 2.0,support U DISK and USB HDD | |||
| 1*TF CARD | Micro TF Card (Maximum support 32GB) | |||
| 1*AV | CVBS output | |||
| 1*Coaxial in | Digital audio input | |||
| 1* Line in | Analog audio input | |||
| 1*RJ45 | 10/100/1000 BaseT | |||
| DVBT2 RF IN (Optional) | DVB-T2 54--860MHz Input Impedance:75 Ω system standard:ETSIEN 302 755 | |||
| DC jack | DC Adapter 19V | |||
| DVB-T2(Optional) | DVB-T2 system standard:ETSIEN 302 755 | |||
| Support MPLP | ||||
| Demodulation: QPSK,16QAM,64QAM or 256QAM | ||||
| Forward error correction rate 1/2,2/3,3/4,3/5,5/6 | ||||
| Guard interval :1/4,19/256,1/8,19/128,1/16,1/32,1/128 | ||||
| Bandwith: 6/7/8MHz | ||||
| Input Frange range:54--860MHz Input Impedance:75 Ω | ||||
| Input Signal level: -84 dBm to 0 dBm (average power) | ||||
| ANT. Connector:IEC TYPE, female | ||||
| Speakers | Effective Output Power | 50W | ||
| Output unit | Full-range speakers: 2.5 inch / 15W * 2 | |||
| Woofer | 3 inch / 20W * 1 (parallel) | |||
| Bass diaphragm | * 1 | |||
| Audio Response | 20-20KHz | |||
| Signal to Noise Ratio | 85dB | |||

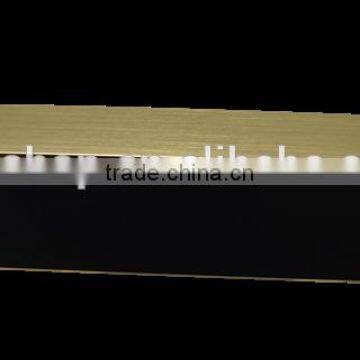

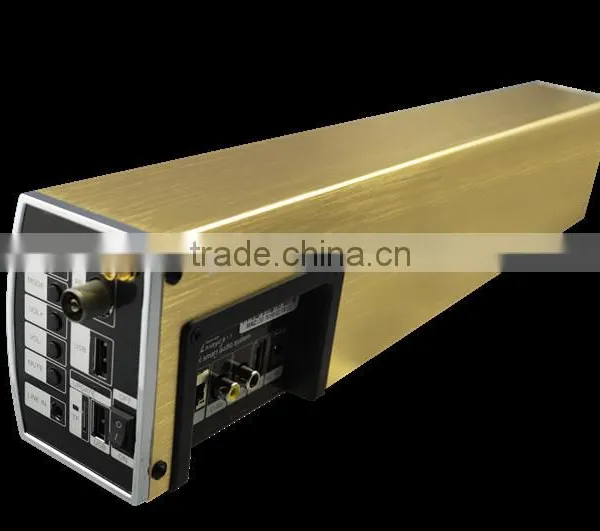

| Material | Aluminum Brushed gold rush | |||

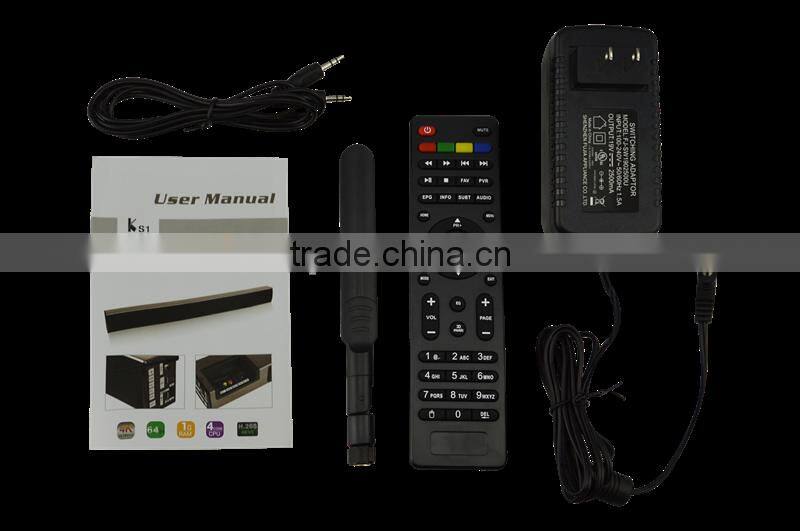

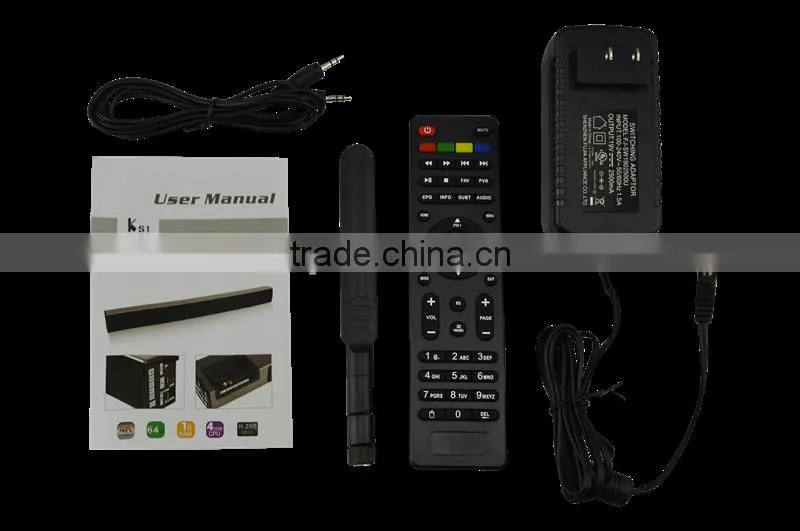

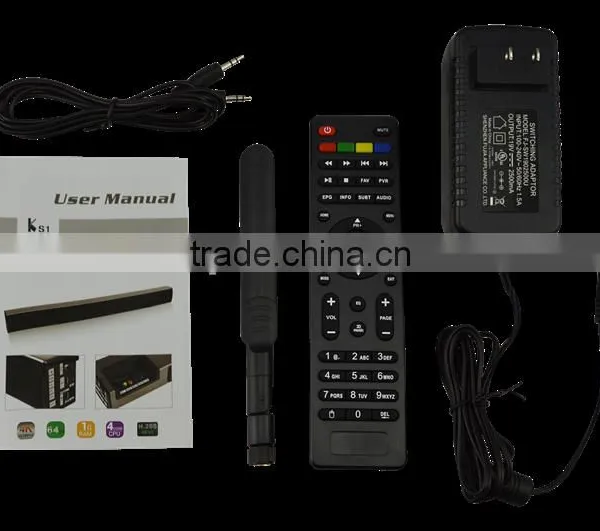

| Accessories | Adapter | |||
| Gift Box | ||||
| IR remote control | ||||
| HDMI Cable (Optional) | ||||
| User Manual | ||||
| Software | ||||

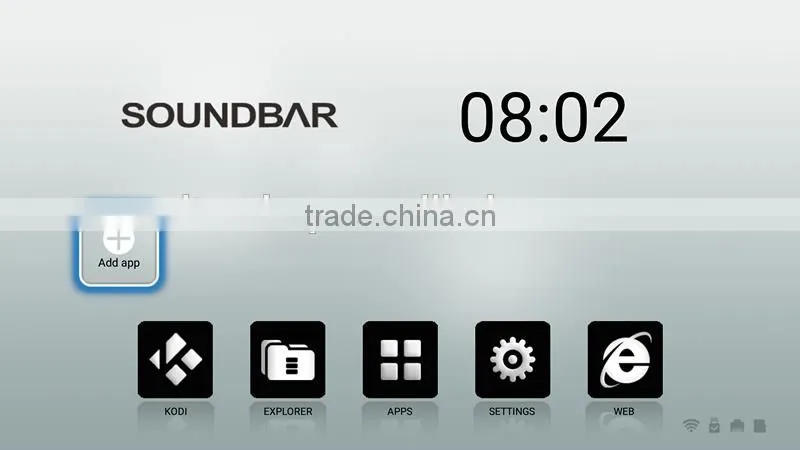

| OS | Android 5.1.1 | |||
| Decoder | HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10 | |||
| Video | AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG | |||
| Music | MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE | |||
| Photo | HD JPEG/BMP/GIF/PNG/TIFF | |||
| Support Language | Chinese , English ,Germany ,Japanese, Korea etc. 24 languages | |||
| WiFi Hotpoint | Support | |||
| Mouse/ Keyboard | Support mouse and keyboard via USB Support 2.4G wireless mouse and keyboard via 2.4G USB dongle | |||
| KODI | Support local high-definition play, support plug-in installation and play | |||
| DRM | Optional :Microsoft Playready,Verimatrix ,Google Widevine | |||
| Others | support DLNA AirPlay Google TV Remote LAN Miracast 3D moive | |||
| Appliactions | ||||
| Online | Browse all video websites ,support Netflix ,Hulu ,Flicker , Picasa,Youtube,Twitter ,Facebook,etc | |||
| Apps | Apps download freely form android market ,amazon appstore etc | |||
| Medium | Local Media playback,support HDD, U disck ,SD card | |||
| Talk online | Support SKYPE video call , facebook ,twitter ,Netflix ,Youtube , etc | |||
| Others | Support Email , office suit etc | |||

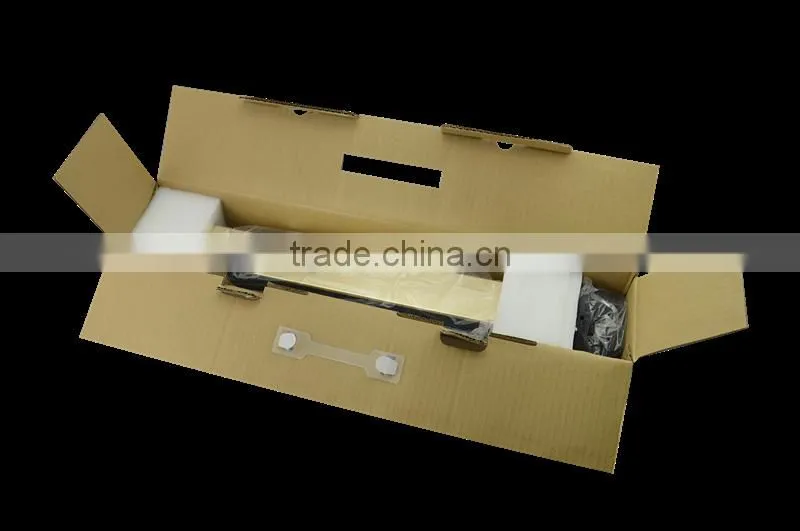

| Loading | ||||
| Loading | machine size | 510*70*95mm | Packaged size | 600*150*118mm |
| machine weight | 1520G | Packaged weight | 2280G | |
| PCS/CTN | 1 | Carton Size | 600*150*118mm | |
