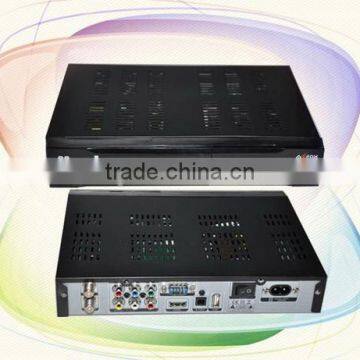

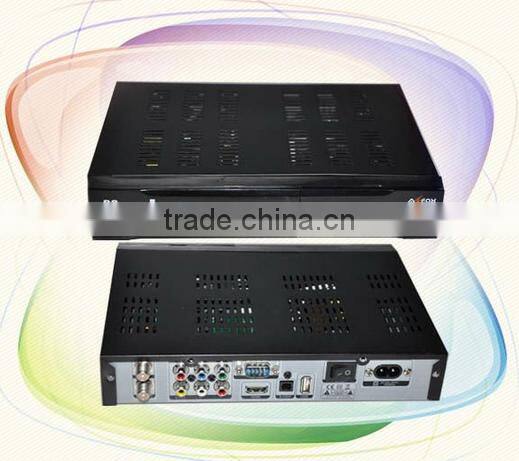

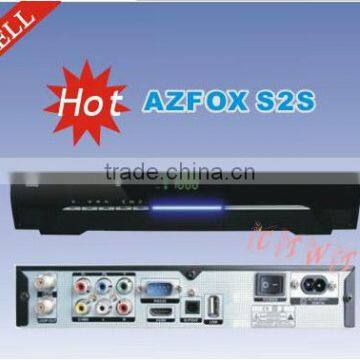

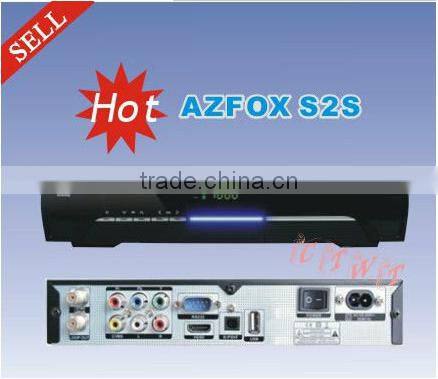

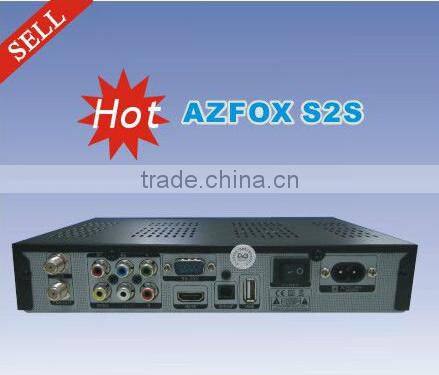

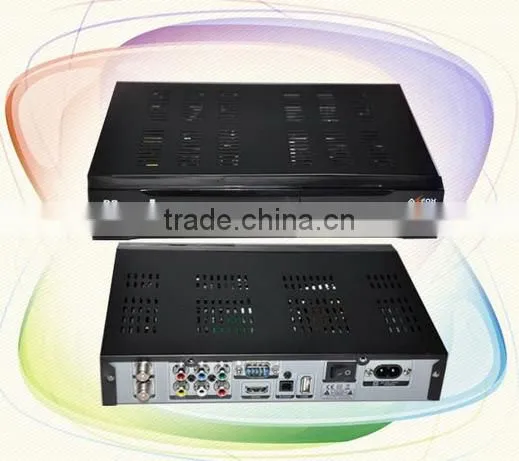

Help CenterHot- Selling South America HD AZFOX S2S DVB-S2 Digital Satellite Receiver
Related Products
-
High Definition Android ATSC Box Digital TV Converter Box Caja Convertidora Digital Atsc HD TV Receiver for Mexico/USA/CanadaNegotiableMOQ: 100 Pieces -
Smart KII Pro Digital Satellite TV Receiver, Best Original 4K HD Android TV Box,Combo Decoder S2 T2 Cheap PriceNegotiableMOQ: 100 Pieces
-
Best Combo Android DVB-T2 DVB-S2 TV Receiver, KII Pro Smart Digital Satellite Receiver, 4K HD Android TV Box,Combo Decoder S2 T2NegotiableMOQ: 100 Pieces
-
HD Digital DVB-T2 Receiver, Mstar 7t01 Free To Air Digital Convert Box, Terrestrial TV DecoderNegotiableMOQ: 100 Pieces
-
DVB-T2 TV Receiver, Digital Full HD MPEG4 DVB-T2 Modulator, Mstar 7t01 600MHZ Digital Terrestrial ReceiverNegotiableMOQ: 100 Pieces
Specifications
Place of Origin: Guangdong, China(Mainland) Model Number: S2S
Type : Digital DVD-S2 : yes
CA : no Hdimi port :yes
Patch : yes Brand Name : AZFOX
FTA(Free to Air): yes High Definiton : yes
USB2.0 :yes Rs232 port : yes
Vfd Display : yes Digital : yes
Packaging & Delivery
* Size(WxHxD):240*38*178mm
* Weight:1.5kg/pc (10pcs/carton)
* 20/40GP/40HQ: 4000/6000/8000
Delivery Time: depends on order quantity
Features :
* Supports MPEG-2, MPEG-4, H.264 and fully DVB compliant
* DiSEqC 1.0, 1.1, 1.2 and USALS
* Aspect ratio adjustment 4:3 (16/9 crop), 4:3 (16/9 letterbox), 16:9 (4/3 pillar box)
* User friendly OSD and operation
* Total 4,000 Channels Programmable
* Multi-language audio support, Multi-language menu text support
* Favorite channel selections
* Parental Guide and rating control
* EPG (Provider Electronic Program Guide) for On Screen Channel Information
* On-Screen Display with 65,536 Color
* Blind scan(Power Scan) & Powerful EPG
* Zoom Function in Pause
* Dolby Digital Bitstream Out through S/PDIF(Coaxal)
* Selectable output for 1080p, 1080i, 720p, 480p and 480i format
* Multiple Video Outputs:HDMI, Component (YPbPr), Composit
* USB 2.0 Host (Access to HDD, USB memory, Others etc)
* Upgrade Software & Update Channel Database through USB 2.0 Port and RS232
* MP3 File Play by USB 2.0
* PVR Ready via USB 2.0
* Multimedia file play by USB 2.0
* Multicas
System & Memory
* Flash Memory : 4Mbytes
* DDR II Memory : 512Mbytes
* Channel Capacity Digital Channel: 4,000
* Front : 1 Key (Power), 7-SEGMENT DISPLAY
MPEG Transport Stream & A/V Decoding :
* Transport Stream: 13818-1 MPEG-2, H.264/AVC Transport stream Specification
* Profile Level:MPEG-2 MPat ML, MPat HL, MPEG-4 H.264 / AVC
* Input Rate: Max. 90Mbit/s
* Aspect Ratio: 4:3, 16:9, Letter Box
* Frame Rate: 25Hz for PAL, 30Hz for NTSC
* Video Resolution: 576i, 576p, 720p, 1080i, 1080P
* Teletext: Through VBI
* Audio Decoding: MPEG-1 Layer 1 & 2, Dolby Downmix
* Audio Mode: Single Channel / Dual Channel Joint Stereo / Stereo
* Frequency Response: 20~20kHz, <+/- 2dB

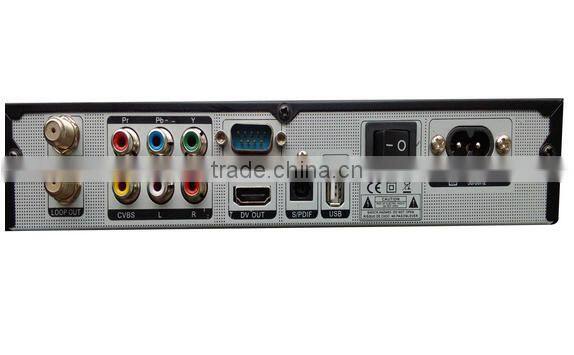

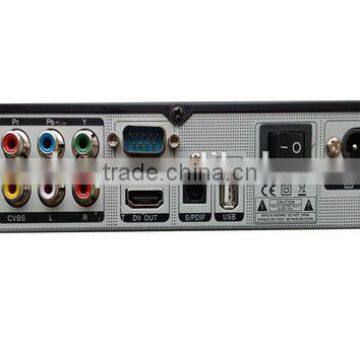

A/V & Date In/Out:
* HDMI: HD Video/Audio Output
* Data Interface: RS-232, Bit Rate: 115,200baud
* Connector: 9-pin D-sub Male type
* USB: USB 2.0, Type A Connector
Power Voltage & Environmental Condition:
* Input Voltage: AC 100V ~ 240V, 50Hz ~ 60Hz
* Power: DC 12V-3A(option)
* Operating Temperature: 0 C ~40C
* Storage Temperature: -10C ~50C
* Operating Humidity Range: 10~85% RH, Non-condensing
* Storage Humidity Range: 5~90% RH, Non-condensing

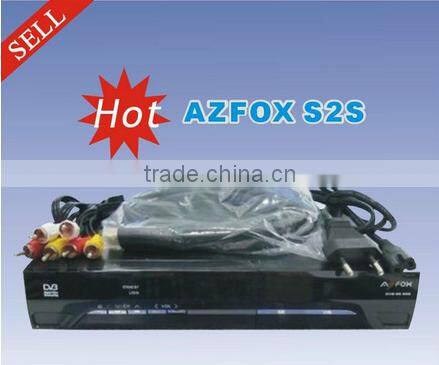

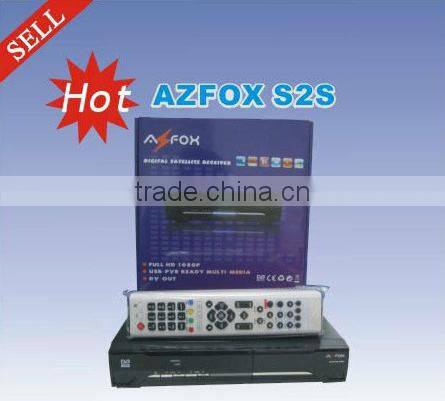

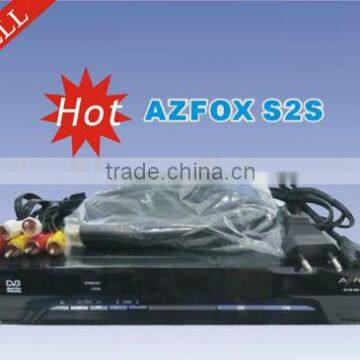

Accessories:
1* User Manual
1* S2 HD satellite receiver
1* Remote Controller
1* AV cable
