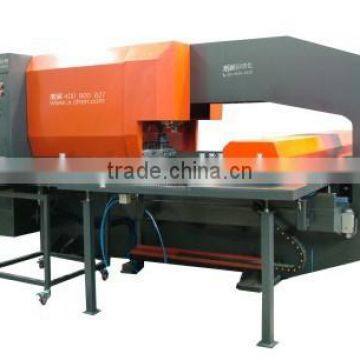

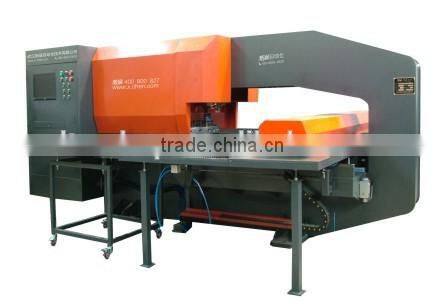

High-performance 24 station CNC turret punch press and low price easy to operate
The aircraft to the closed structure
A, technical parameters:
1. Nominal power: 250 kn;
2. Drive way: hydraulic;
3. The biggest board processing size (excluding secondary positioning) : 1250 * 2500 mm;
4. The biggest processing plate thickness: 6 mm;
5. The largest processing material weight: 120 kg;
6. A punching diameter: 88.9 mm;
7. Die: 24
Among them: A workstation (2.5-12.7) Φ 12
B station (12.7-31.7 Φ) 8
C station (31.7-50.8 Φ) 2
D workstation (Φ 50.8-88.9) 2
More than for the standard mold, tensile modulus, shutter mold fee flat mould, etc.
8. Feed accuracy: + / - 0.10 mm;
9. Use time: 150 HPM;
10. Lathe bed structure: closed;
11. A number of control shaft: 3 axis;
12. The mould structure, AMADA standard;
13. Air pressure: 0.5 Mpa;
14. Total power: 14 kw;
15. The machine dimension: 5000 * 3500 * 2200;
16. Weight: 10 t.
Second, the main configuration and features:
1. Stable and reliable hydraulic main transmission system, has the following distinctive features:
(1) the control performance is good.
(2) strong commonality.
(3) the noise is greatly reduced.
(4) improve the quality of products.
(5) simple structure.
(6) maintenance is convenient.Because of simple structure, national standard hydraulic components, maintenance, and easy to change.
(7) safe and reliable.By regulating the overflow valve, limiting pressure of hydraulic system can ensure the safety protection, simple and reliable.
2. New morning independent research and development system, with functions of all kinds of punching machine.
3. The processing of rotary table in pairs and set shell structure is adopted to guarantee the alignment of lower die, greatly extend the service life of the mold and the rotary table.
4. Use O steel plate welding high strength and high rigidity of the fuselage, the aging treatment, eliminate the internal stress.
5. Die with long guide, international universal AMADA standard structure, form a complete set of convenience.
6. Japan yaskawa ac servo motor, guarantee the high speed and stability.X/Y axis 24 m/min, rotary table 15 RPM.
7. The precise ball screw: Taiwan TBI, type X: 40-40 k3
Y: 40-20 k3.
8. Precision linear rectangular guide: Taiwan HIWIN, models: X: HGH35CA,
Y: HGH35CA.
9. The transverse feed can be 2500 mm in one time, without secondary positioning.
9. Brush ball workbench, protect artifacts from the scratch.
Floating type pneumatic clamp, according to customer needs with secondary positioning
11. Pneumatic components: the teck
12. The lubrication: centralized lubrication + manual lubrication.
13. With CAD automatic conversion software, machining graphics automatically converted to code.Convenient for processing all kinds of complex graphics.
Three, the mould:
Random equipped with 24 sets of standard mold (round, square, rectangular) according to the buyer as shown in the technical requirements for production.
Fourth, training:
Supplier free 1-2 operation maintenance personnel training for the buyer, the buyer may also be assigned personnel to the unit, such as traffic and accommodation provide for oneself by the buyer, the supplier provide grern and other facilities.
Training of buyer's personnel should possess the following basic knowledge: technical secondary school or above degree, be familiar with computer operation, basic electrical and mechanical maintenance skills, familiar with production process of our factory.
Five, the installation and commissioning:
The supplier to send to the scene to be responsible for guiding the installation and debugging equipment, time about a week or so, the buyer is responsible for equipment unloading, installation and debugging with the supplier.
Six, after-sales service and commitment to:
Warranty period: within one year from the date of delivery to repair the failure free of normal use, mould consumables exception;
The supplier is not regular tracking service for equipment;
Appeared quality problem, the supplier should give telephone guidance within 2 hours.In remote services such as telephone, network without solving 36 hours to arrived at the scene, technical services.
Confront m outside appear quality problem, supplier cost charge generated during processing and partners.
Seven and quantity of goods:
Main body (including the turntable, control system) : 1
Beam: 1 piece
Assist the workbench: 1
Hydraulic system: 1
Standard mold: 24 vice
Nc machine tools categories: CNC punch press
The main motor power: 14 (kw)
Exercise: level control
Processing range of size: 1250 * 1250 (mm)
The spindle speed range: 150 (RPM)
Number of cutting tools: 24
Control mode: open loop control
Control system: PF9025
Layout: the vertical
Hydraulic power
Application: cutting
Applicable industry: light industry
After-sales service: one year warranty
