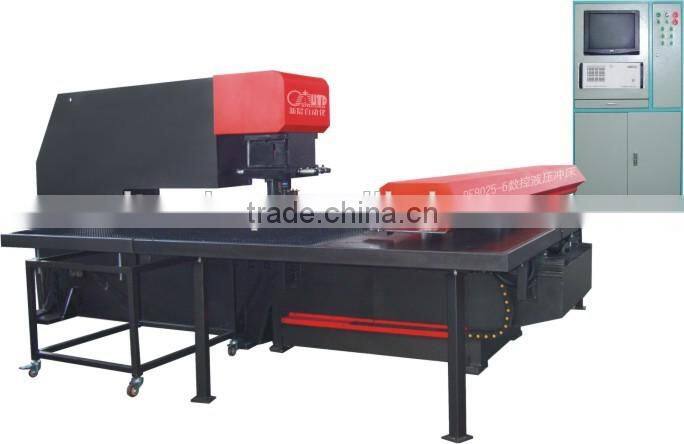

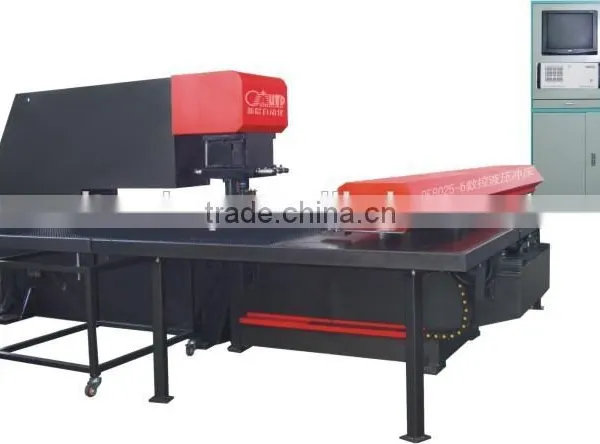

LED equipment CNC punching press machine quick change new automatic CNC punching machine
Rapid change modulus control punch press main configuration:
A, technical parameters:
1. Nominal power: 250 kn
2. Drive way: hydraulic
3. The X axis moving distance (mm) : 2500.
Y mobile distance (mm) : 1250
4. XY table travel: 2500 x 1250 mm
5. The largest processing material thickness: 4 mm
6. The largest processing material weight: 100 kg
7. A punching diameter: 50.8 mm
8. Die: six
Among them: A workstation (2.5 -- 12.7 mm Φ) 1
B station (12.7 -- 31.7 mm Φ) four
C station (31.7 -- 50.8 mm Φ) 1
More than for the standard mold, tensile modulus, shutter mode and other special-shaped mold fee.
9. Feed accuracy: + / - 0.10 mm
10. Use time: 150 HPM
11. The lathe bed structure: open
12. Control shaft number: 2 axis
13. The mould structure, AMADA standard
14. Air pressure: 0.5 MPa
15. The total power: 8 kw
16. The machine covers an area of about (*) before and after: 5000 * 5000 * 2200 mm
Main Features:
1. Stable and reliable hydraulic main transmission system, has the following distinctive features:
(1) the control performance is good.(2) strong commonality.(3) the noise is greatly reduced.
(4) improve the quality of products.(5) simple structure.(6) maintenance is convenient.Because of simple structure, national standard hydraulic components, maintenance, and easy to change.(7) safe and reliable.By regulating the overflow valve, limiting pressure of hydraulic system can ensure the safety protection, simple and reliable.
2. The independent intellectual property rights of professional numerical control software system (PF2002 numerical control system), automatic programming can be easily implemented, with functions of all kinds of punching machine.
3. Original creation, the transfer of the mold is different from the general way of turret, fixed mould position, choose a mode to avoid the error caused by the lower die of coaxial degree is higher.With automatic mode, automatic processing.
4. The processing of the mold in pairs and set shell structure is adopted to guarantee the alignment of lower die, greatly extend the service life of the mold and the mold.
5. USES the steel plate welding high strength and high rigidity of the fuselage, the aging treatment, eliminate the internal stress.
6. Mold: mold with long guide, universal AMADA international standard structure, form a complete set of convenience.
7. Ac servo motor, guarantee the high speed, stability and high precision feed.
8. Screw: precision ball screw, Taiwan TIB.
9. Guides: precision linear rectangular guide, Taiwan HIWIN.
10. The table: quality brush workbench, protect artifacts from the scratch.
11. Software: automatic programming software.
12. Pneumatic clamp.
13. With CAD automatic conversion software, machining graphics automatically converted to code.Convenient for processing all kinds of complex graphics.
14. Popular high performance ratio, less investment results quickly.
Three, the mould:
Random equipped with six sets of standard mold (round, square, rectangular) as shown in buyer's technical requirements.
Fourth, training:
Free for the buyer the supplier 1-2 operation maintenance personnel training, training can and installation shall be conducted at the scene of the equipment to the buyer, the buyer can also be assigned personnel to the unit, such as traffic and accommodation provide for oneself by the buyer, the supplier provide grern and other facilities.
Buyer's training staff should prepare the following basic knowledge;Technical secondary school or above degree, be familiar with computer operation, basic electrical and mechanical maintenance skills, familiar with production technology of our factory.
Five, the installation and debugging;
The supplier to send to the scene to be responsible for guiding the installation and debugging equipment, time about a week or so, the buyer is responsible for equipment unloading, installation and debugging with the supplier.
Six, after-sales service and commitment to:
1, the warranty period: within one year from the date of delivery to repair the failure free of normal use, the mould of consumables are not.
2, the supplier from time to time to tracking service equipment.
3, appear quality problem, the supplier should give telephone guidance within 2 hours.In remote services such as telephone, network without solving 36 hours to arrived at the scene, technical services.
4, the confrontation between m outside appear quality problem, the buyer charge generated during processing cost and partners.
Our main market:
Europe |
42.8% |
America |
28.6% |
Asia |
11.8% |
Middle East |
10.8% |
Africa |
6% |
Our Advantages:
1. We cooperate with factory directly.
2. Our technical man check the quality by ourselves.
3. We export to our products to Europe, America, Asia, Middle East and Africa due to our large output.
4. We can produce new items according to your requirements.
