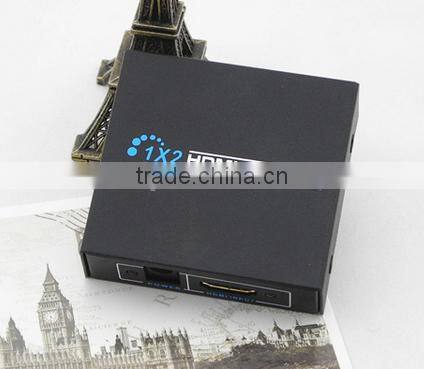

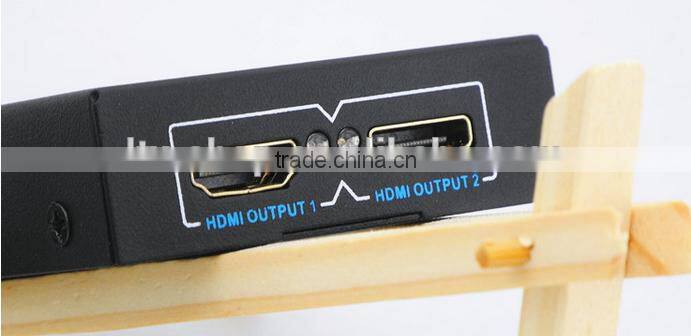

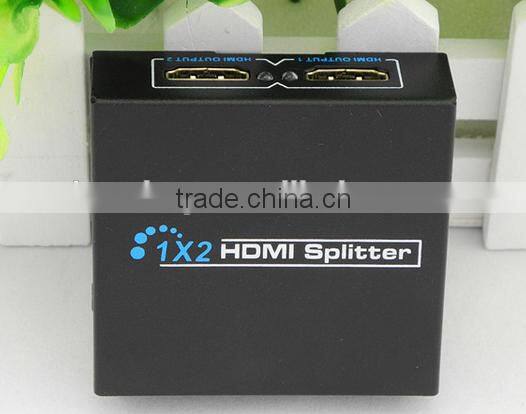

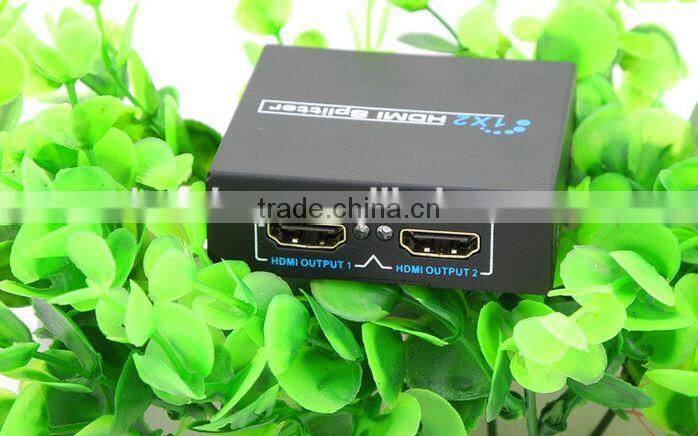

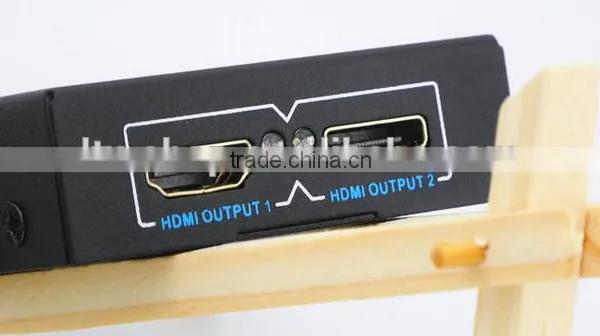

New Full HD 1x2 Port HDMI Splitter 1 IN 2 OUT Amplifier Repeater 3D 1080p Female
Specifications
Full HD/3D HDMI Splitter 1x2,HDMI Splitter 1 in 2 out1.1 in 2 out
2.1.4v version,support 3D
3.ce,fcc,rohs
Full HD/3D HDMI Splitter 1x2,HDMI Splitter 1 in 2 out
1 input 2 outputs
HDMI 1.4, Full HD 1080

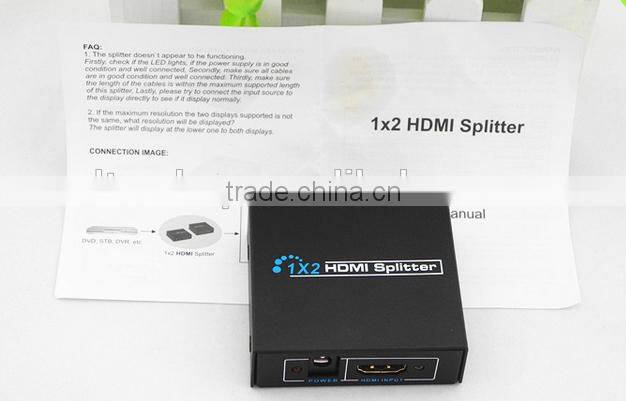

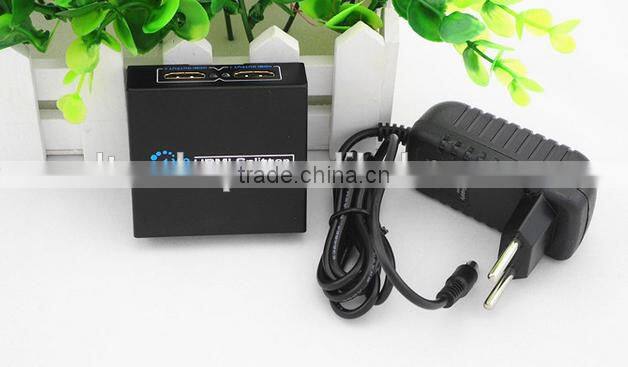

Accessories: AC/DC Power Adaptor, User Manual

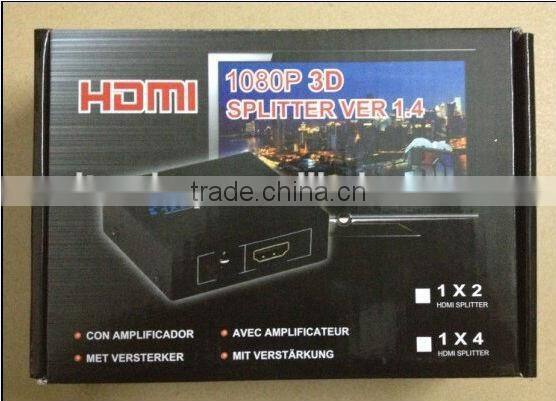

Packing: Color Gift Box
Introduction
DK102 is a two outputs HDMI splitter, it distributes the HDMI input into two identical outputs are synchronized. DK102 also has the ability of buffering and amplifiering, series connection of DK102 achives long distance and transmission of HDMI signal of more than 15 meters. When two or more DK102 are cascaded they can be used to create a larger distribution.
DK102 offers solutions for HDTV retail and show tile which suitable for HDTV, STB, DVD and Projector, data center control, information distribution, conference room presentation, school and corporate training environments.
Features
This HDMI amplifier splitter has many features that enable it to perform in a superior manner. Among those features you will find:
Easy to use: install in seconds, no need of setting.
Cascded: large distribution achieved by cascading the HDMI amplifier splitter
Support HDMI1.4
Support highest video resolution 1080P
Support 6.75Gbps per channel bandwidth
Support 24bit per channel (30,36bit all channel) deep color
Support HDCP
Support 3D
Support uncompressed audio such as LPCM
Support compressed audio suach as DTS Digital, Dolby Digital(including DTS-HD, and Dolby True HD)
Specifications
Input Video Signal | 0.5 -1.5 volts p-p |
Input DDC Signal | 5 volts p-p (TTL) |
Max Single Link Range | 1920X1200, 1080P |
DVI | 480p/576i/576p/720i/720p/1080i/1080p |
Resolutions DTV/HDTV | 480i/576i/480p/576p/720p/1080i/1080P |
HDCP version | HDCP1.2 |
HDMI Version | HDMI 1.4V |
Operating Frequency | Up to 225MHz |
EIDI Duration | 4 seconds |
Operating Temperature range | (-15 to +55°C) |
Power adapter format..Input: | AC (50HZ, 60HZ) 100V-240V; Output: DC5V |
Operating Humidity range | 5 to 90%RH (No Condensation) |
Max. cable extension | 15 meters by 26AWG 1.4 standard HDMI cable; 25 meters by 26AWG 1.4 standard HDMI cable |
