hd Splitter One Input Two Output 3d hd High Speed Quality 3D 1x2 hd Splitter 1080P

hd Splitter One Input Two Output 3d hd High Speed Quality 3D 1x2 hd Splitter 1080P photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ltx
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hk
Delivery Detail:
Delivery time depends on order quantity.
Brand Name ltx
Place of Origin Guangdong, China

  hd splitter one input two output 3d hd high speed quality 3D 1x2 hd splitter 1080P





Product Description

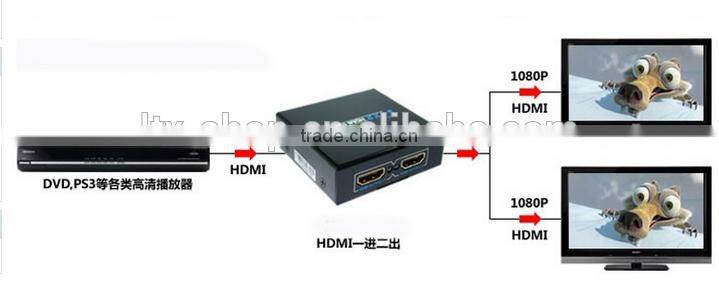

HD-SP102M is a two outputs HDMI splitter, it distributes the HDMI input into two identical outputs are synchronized. HD-SP102M also has the ability of buffering and amplifiering, series connection of HD-SP102M achives long distance and transmission of HDMI signal of more than 15 meters. When two or more HD-SP102M are cascaded they can be used to create a larger distribution.

HD-SP102M offers solutions for HDTV retail and show tile which suitable for HDTV, STB, DVD and Projector, data center control, information distribution, conference room presentation, school and corporate training environments.



Easy to use: install in seconds, no need of setting.
Cascded: large distribution achieved by cascading the HDMI amplifier splitter
Support HDMI1.3
Support highest video resolution 1080P
Support 2.25Gbps per channel bandwidth
Support 8bit per channel (24bit all channel) deep color
Support HDCP
Support 3D
Support uncompressed audio such as LPCM
Support compressed audio suach as DTS Digital, Dolby Digital(including DTS-HD, and Dolby True HD)



 Input Video Signal
 0.5 -1.0 volts p-p
 Input DDC Signal
 5 volts p-p (TTL)
 Max Single Link Range
 1920X1200, 1080P
 Output Video
 HDMI 1.3 + HDCP1.0/1.1/1.2
 DVI
 480p/576i/576p/720i/720p/1080i/1080p
 Resolutions DTV/HDTV
 480i/576i/480p/576p/720p/1080i/1080P
 HDMI Version
 HDMI 1.3
 Operating Frequency
 Up to 225MHz
 EIDI Duration
 4 seconds
 Power supply
 DC 5V
 Max. cable extension
 10 meters by 28AWG HDMI cable; 15 meters by 26AWG HDMI cable
