Help CenterHigh Quality Fast Coin Acceptor for Game Machine
Related Products
-
High Coin Operated Game Coin Slot for SaleNegotiableMOQ: 1 Piece -
Plastic 3mm Thickness Coin ValidatorNegotiableMOQ: 1 Piece
-
Digital Video Game Coin Acceptor for SaleNegotiableMOQ: 1 Piece
-
Coin Operated Machne Multi Coin Acceptor for 6 CoinsNegotiableMOQ: 1 Piece
-
High Quality Fast Coin Acceptor for Game MachineNegotiableMOQ: 1 Piece
Use step
1.Take out the plastic cion from the slot,put your coin in.
2.Depend your motherboard to choice coin signal output mode,N.O/N.C(open/close),usually use N.C stall.
3.Depend on your motherboard to selector the output pluse,
20ms is the quick signal ,suit the machine which need quickly throwing coin;
40ms is the middle- quick signal,suit the normal machine;
100ms is the slow signal, suit the normal fun machine.
4.VR switch is sensitivity conthol for coin filtrating ,clockwise turn(+),it accept large tolerance coin, anticlockwise turn(-),it accepts small tolerance coin.
5.If the coin is not easy to be passed on the exactness position of SW3,please transfer the SW3 to normal position and ajust the VR to suitable position.
Funtion
1.Different coin slot,special design;
2.CPU process updated,technology more advanced;
3.Can open back cover,easier to clean up the blocked coins or sundries.
Parameters
| Operating voltage | DC 12V ±10% |
|
Operating current |
650mA |
|
Operating temperature |
-15℃~+75℃ |
| Output mode | OC |
| Coin diameter | 18mm~30mm |
| Coin thickness | 1.5mm~2.6mm |
| Single weight | 0.65kg |

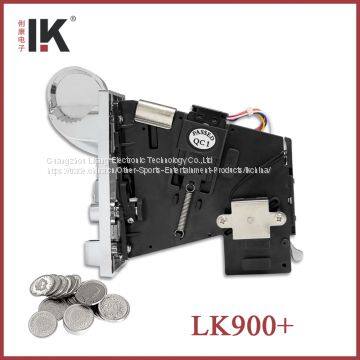

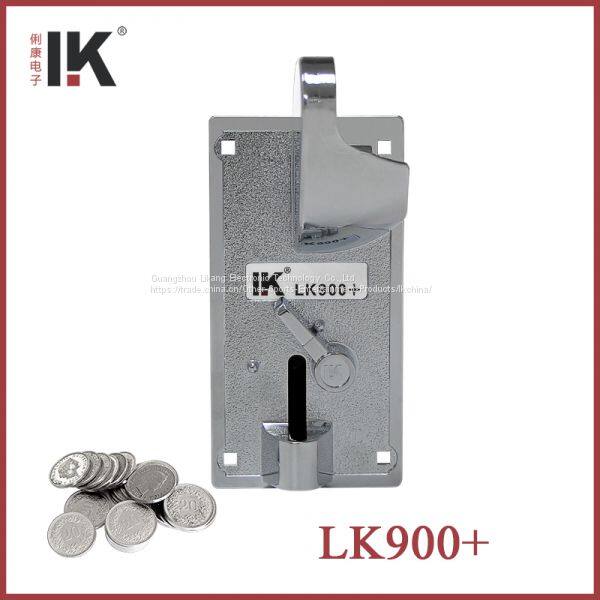

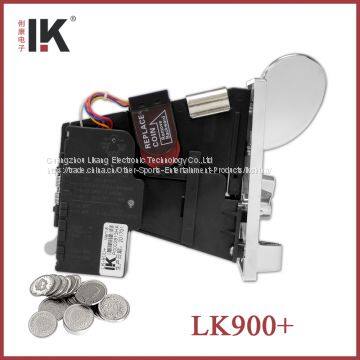

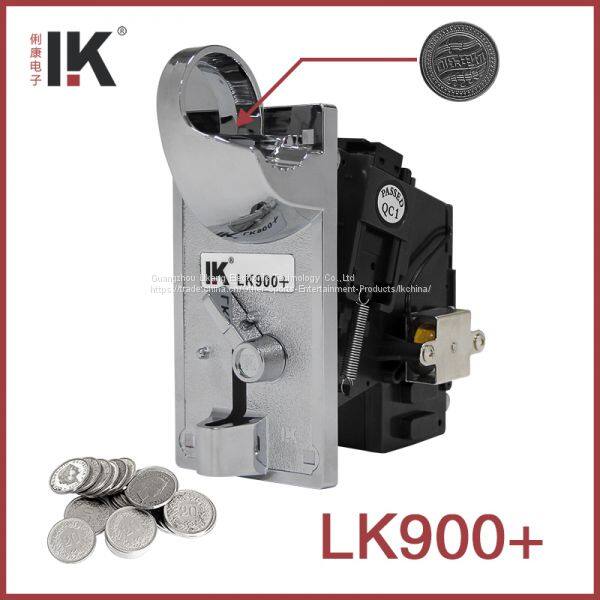

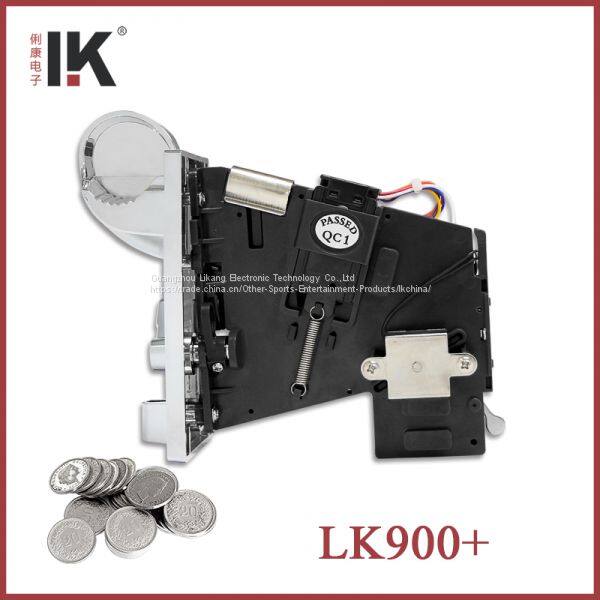

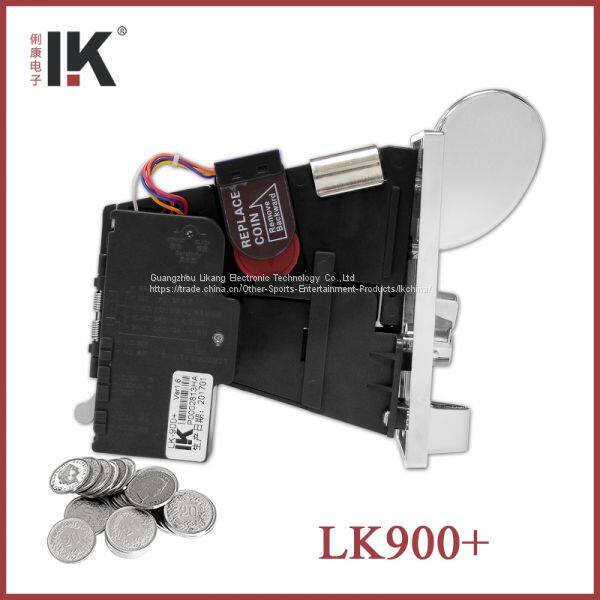

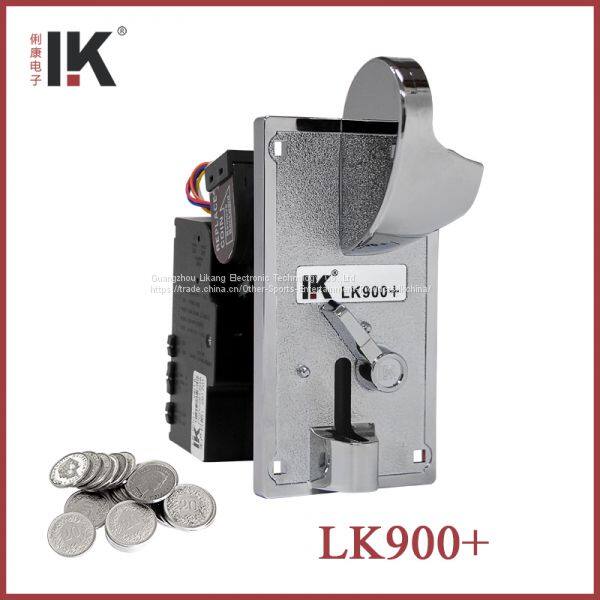

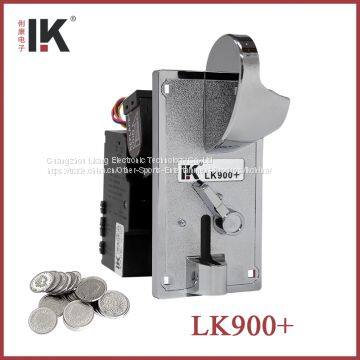

Pictures
Package
Package:30pcs/ctn,bubble bag inside with a inside box per piece
G.W.:16KGS
Carton Dimension: 46x34x39 cm
Shipping way
1,By sea
2,By air
3,By expressage,such as DHL,FEDEX,TNT,UPS and etc.
4,Your agent pick up from our warehouse or send to your agent.
Application area
Our coin acceptor is widely used in coin kiosk, car washing machine, TV, massage chair, cloth dryer, cyber coffee, laundromat, laundry,computer ,amusement machine , arcade machine,vending machine,etc
