Rope Dynamometer for Crane LSXZ

Rope Dynamometer for Crane LSXZ thumbnail-1
Rope Dynamometer for Crane LSXZ photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
LSXZ
Power:
Electronic
Usage:
Tensile Testing Machine
Contact Supplier Request Quote Chat Now
Shanghai Golta Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number LSXZ
Power Electronic
Usage Tensile Testing Machine

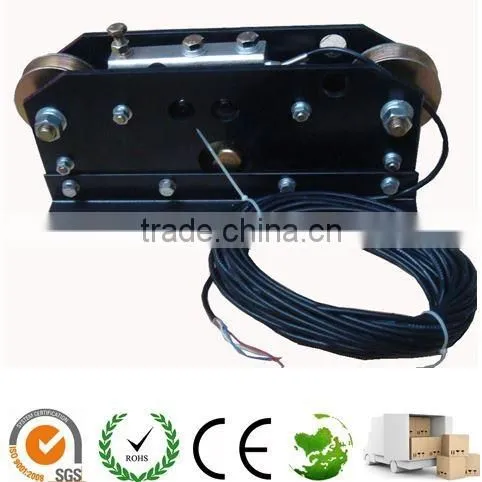

Running line tensiometer rope dynomometer linerider LSXZ for crane



General Description



Running line Tensiometer LSXZ is especially designed for measuring tension of moving steel rope.

It features in high reliability, compatibility and easy installation.The output signal is 4-20mA.

It adapt for Dia.12-21mm of steel rope. The maximum load of steel rope is 15t.



Specifications





Rated Load

300, 500KG

Sensitivity

2.0±0.002mv/v;

Total error

±0.05%F.S

Creep(30min)

±0.02%F.S

Zero balance

±1%F.S

Zero temperature effect

±0.02%F.S/10℃

Output temperature effect

±0.02%F.S/10℃

Input resistance

400 ±10Ω

Output resistance

352 ±3Ω

Insulation resistance

≥5000MΩ

Operating Temp Range

-30~+70℃

Safe load limit

150%F.S

Over load limit

200%F.S

Recommend excitation

24V DC
