Model Number
LSX-43BR
Crane cable reel/ cable drum/ recoil drum/ cord reel LSX series
General Description

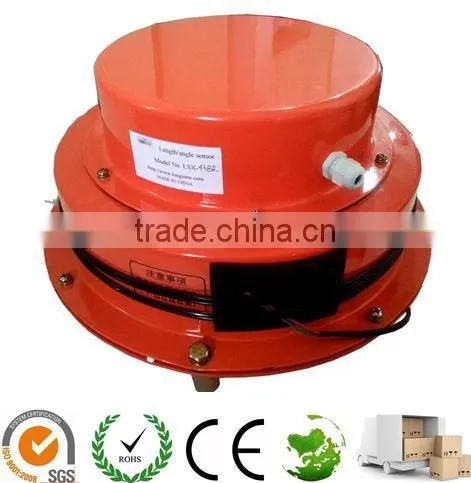

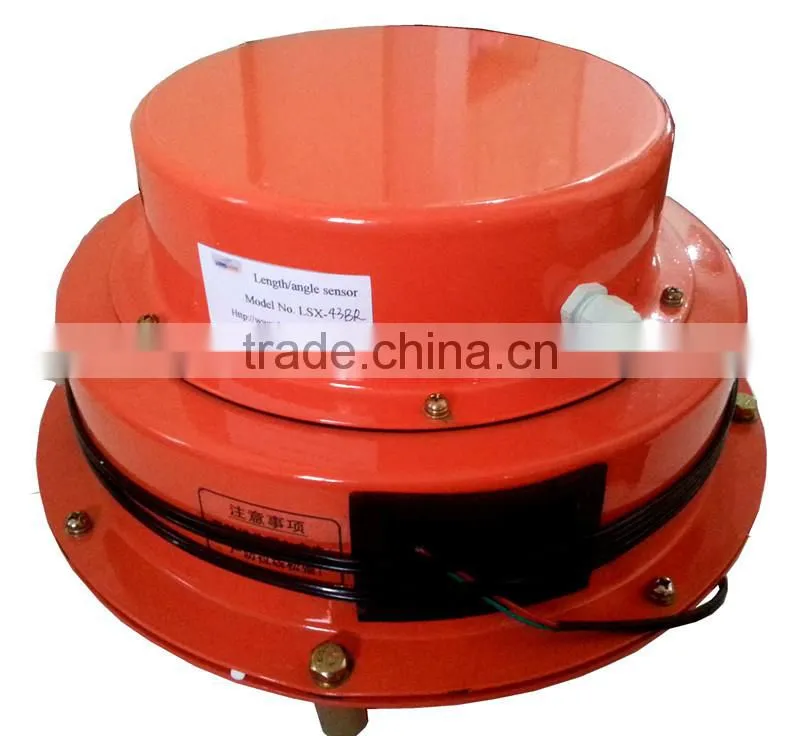

Length angle sensor LSX series can be used on all types of equipment where the length and angle of the telescopic boom needs to be measured. The LSX consists of a housing, spring-loaded cable drum with measuring cable and mounting equipment for installation on the boom. Included in the housing is a length sensor, angle sensor, slip ring, and circuit board. LSX SERIES can reach the max.length range 60m and angle range of -10°~+90°.
Specifications
| Operating temperature | -25°C to +75°C | |||
| Weight | ca.20kgs | |||
| Angle range | -10°~+90° | |||
| Measuring range of length | 0-45m | |||
| Transmission signal | 2 channel | |||
| Nonlinearity of length | ≤0.2% | |||
| Nonlinearity of angle | ≤0.15° | |||
| Housing Size | Ø370*205mm | |||
Right Mounted way
