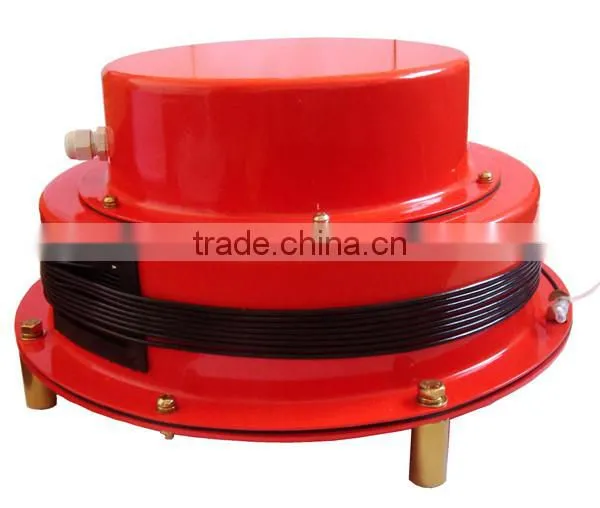

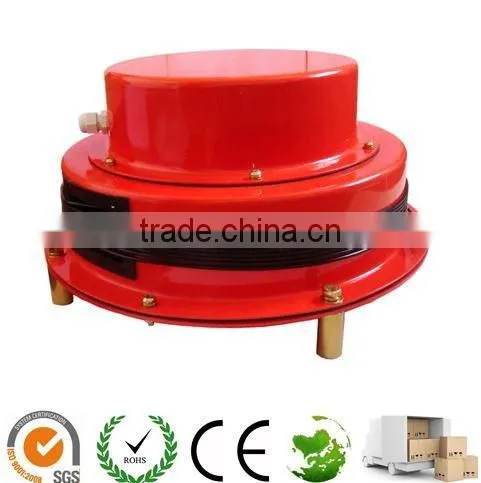

Cord Reel 45m for Crane
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2005
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Cable reel cord reel cable drum 45m for crane LS-43
General Description
Crane length & angle detector LSX series can be used on all types of equipment where the length and angle of the telescopic boom needs to be measured. Crane length & angle detector LSX consists of a housing, spring-loaded cable drum with measuring cable and mounting equipment for installation on the boom. Included in the housing is a length sensor, angle sensor, slip ring, and circuit board. Crane length & angle detector LSX SERIES can reach the max.length range 60m and angle range of -10°~+90°.
Specifications
| Operating temperature | -25°C to +75°C | |||
| Weight | ca.20kgs | |||
| Angle range | -10°~+90° | |||
| Measuring range of length | 0-45m | |||
| Transmission signal | 2 channel | |||
| Nonlinearity of length | ≤0.2% | |||
| Nonlinearity of angle | ≤0.15° | |||
| Housing Size | Ø370*205mm | |||
