Home > Industrial Equipment & Components > Ventilation Equipment > Ventilation Fan > BELT DRIVEN EXHAUST FANS

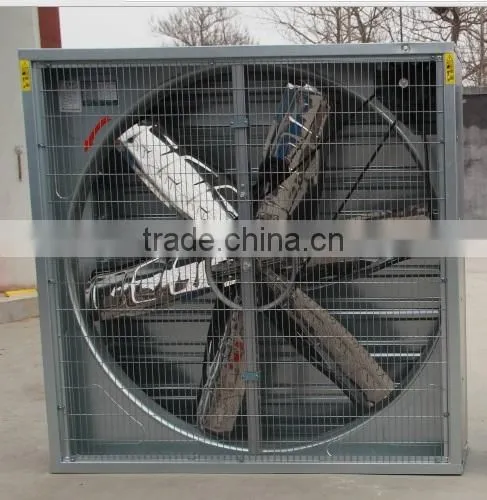

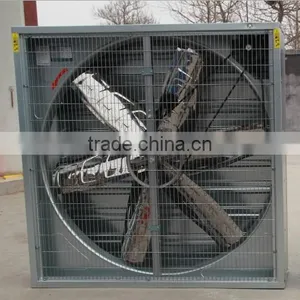

BELT DRIVEN EXHAUST FANS

Name: BELT DRIVEN EXHAUST FANS
Brand: GOLTA
SKU: 142181230
Availability: InStock

US$ 10 - 100 MOQ: 10 Sets

Key Specifications

Get Latest Price

Electric Current Type:

Mounting:

Wall Fan

Blade Material:

Cast Iron

Contact Supplier Request Quote Chat Now

Shanghai Golta Industries Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Electric Current Type AC

Mounting Wall Fan

Blade Material Cast Iron

Place of Origin Shanghai, China

Brand Name GOLTA

Model Number GL125

Voltage 230V

Power 65W

Air Volume 380m3/H

Speed 5m/s

Certification CCC, CE, CSA, UL

After-sales Service Provided Overseas third-party support available

Product Description

ventilation exhaust fan .

1, Frame: frames are made of hot dip galvanized sheet, top frame thickness 1.0mm, others’ thickness 0.8mm. Galvanizing layer 180g/square meters.

2, Blade: 6 pieces, material 430/304 stainless steel.

3, Impeller: casting aluminum alloy impeller.

4, bearing of impeller: permanently sealed bearing, size 633313.

5, Collector: galvanized sheet, thickness 1.0mm.

6, Blade tip clearance: 25mm, mirror face.

7, Inlet wind protecting net: plastic sprayed steel wire, thickness 2.8mm.

8, Electrical motor: aluminum alloy frame motor, 380V/220/415V, 1.1KW/0.75KW(1.5HP/1HP), 50HZ/60HZ, 3PH/Single Phase, 4-pole speed, 1410r/m, IP55, class F, efficiency 90%, top/foot mounted,

9, Motor bearing, :cast iron.

10, Belt: B-belt and A-belt (Made-in-China and Japan brand Mitsuboshi).

11, Shutters: galvanized sheet, 0.45 mm thickness Galvanizing layer, 120g/square meter.

12, Opening system: high strength nylon drop hammer open device.

13, Rivets: aluminum alloy and stainless steel rivets.

14, Tensioner: plastic or aluminum.

15, Warranty: 1 year for the whole machine.
