The partner of State Grid Corporation
The partner of National Railway Administration of China
ISO9001, TUV, and CE standard

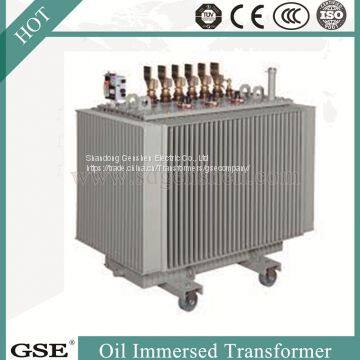

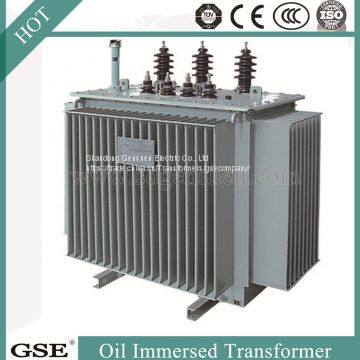

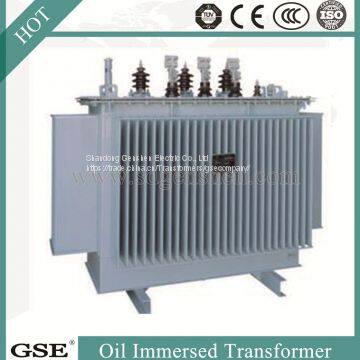

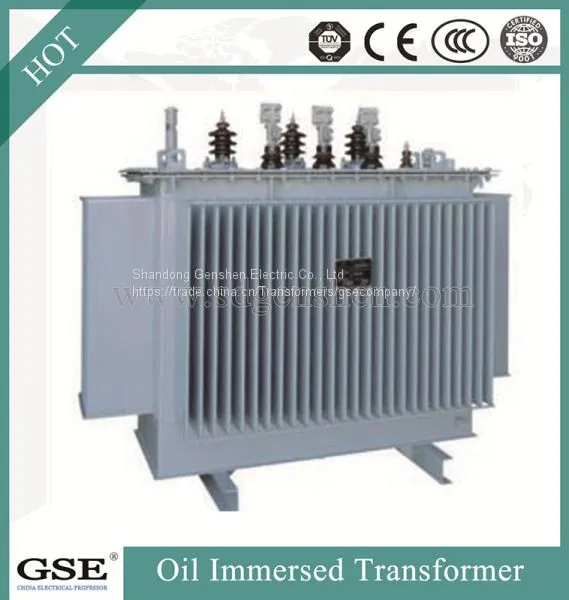

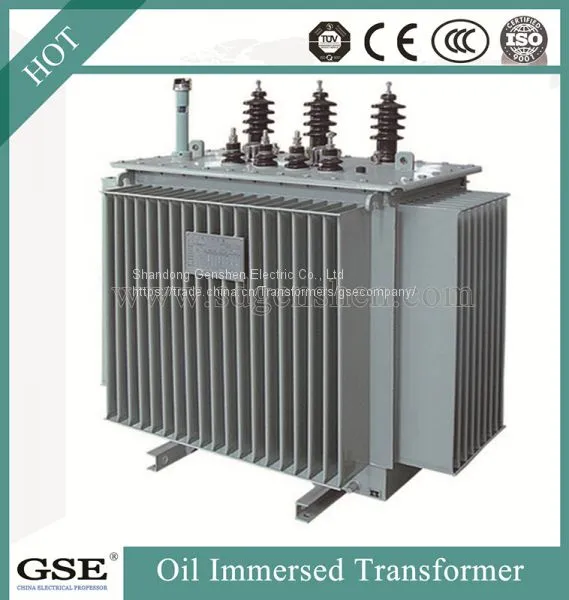

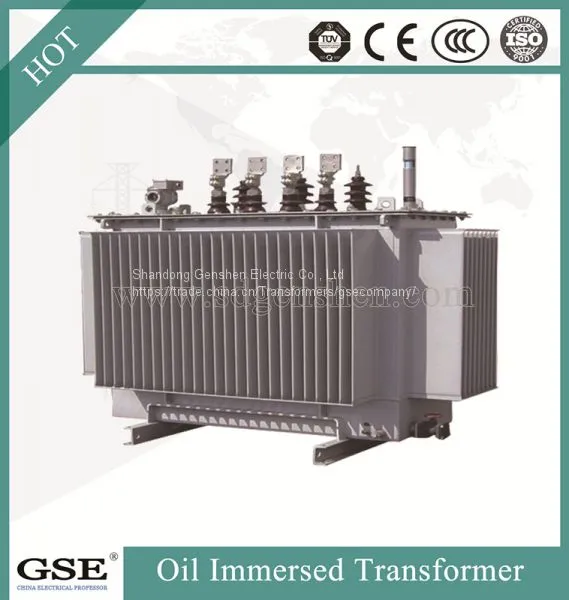

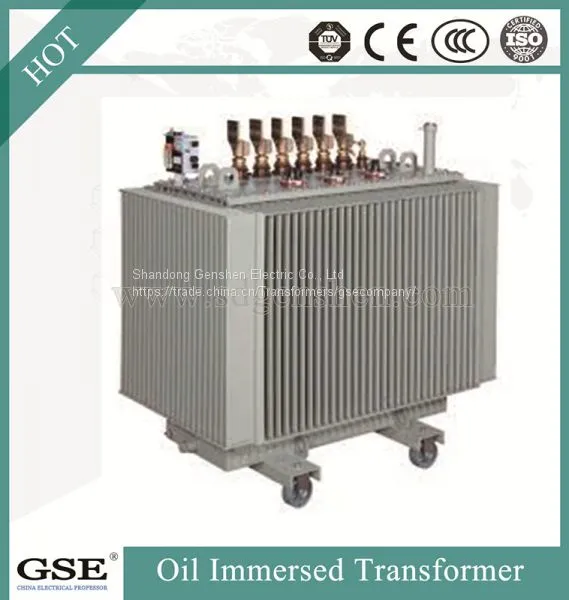

1.FEATURES
S13-M.RL three-dimensional roll-core transformer series, the whole body is a three-dimensional triangular shape. And there are taut rods all around and in the central. With top and bottom frames, insulation, laminated wood, it is constituted as a whole body. The high and low voltage coils are circular and concentric winding, which can effectively resist the axial mechanical stress of sudden short circuit.
It has good anti-short circuit ability.
Compared the S13 - M.RL three-dimensional roll-core transformer series with ordinary transformers, no-load current is reduced by 75% and no-load loss is reduced by 30% in average. And the comprehensive energy saving is up to 15% - 30%
| Rated Capacity (KVA) |
Rated Voltage | Connection Symbol | No-load Loss (KW) |
No-load Current (%) |
75ºC (W) Load-Loss |
Short Circuit Impedance (%) |
Weight (Kg) |
Boundary Dimension (mm) | Sound power Level (db) |
|||
| H.V. | M.V. | L.V. | Equipment | L*W*H | ||||||||
| (KV) | (KV) | (KV) | ||||||||||
| 30 | 6 6.3 10 10.5 11 |
±5% or ±2×2.5% |
0.4 | Dyn11 Yyn0 Yzn11 |
80 | 0.3 | 630/600 | 4 | 330 | 800*500*850 | 35 | |
| 50 | 100 | 0.24 | 910/870 | 380 | 820*550*850 | 35 | ||||||
| 63 | 110 | 0.23 | 1090/1040 | 410 | 835*580*850 | 35 | ||||||
| 80 | 130 | 0.22 | 1310/1250 | 430 | 840*600*880 | 36 | ||||||
| 100 | 150 | 0.21 | 1580/1500 | 460 | 860*600*890 | 36 | ||||||
| 125 | 170 | 0.2 | 1890/1800 | 590 | 1020*660*880 | 37 | ||||||
| 160 | 200 | 0.19 | 2310/2200 | 650 | 1035*660*950 | 38 | ||||||
| 200 | 240 | 0.18 | 2730/2600 | 710 | 1040*680*980 | 39 | ||||||
| 250 | 290 | 0.17 | 3200/3050 | 850 | 1140*740*1010 | 40 | ||||||
| 315 | 340 | 0.16 | 3830/3650 | 970 | 1160*760*1150 | 42 | ||||||
| 400 | 410 | 0.16 | 4520/4300 | 1130 | 1230*800*1200 | 44 | ||||||
| 500 | 480 | 0.16 | 5410/5150 | 1335 | 1320*900*1200 | 45 | ||||||
| 630 | Dyn11 Yyn0 |
570 | 0.15 | 6200 | 4.5 | 1630 | 1420*920*1230 | 46 | ||||
| 800 | 700 | 0.15 | 7500 | 1950 | 1480*1000*1330 | 47 | ||||||
| 1000 | 830 | 0.14 | 10300 | 2205 | 1600*1100*1280 | 48 | ||||||
| 1250 | 970 | 0.13 | 12000 | 2565 | 1655*1135*1375 | 49 | ||||||
| 1600 | 1170 | 0.12 | 14500 | 3100 | 1815*1260*1450 | 49 | ||||||
| 2000 | 1550 | 0.11 | 18300 | 5 | 3785 | 1920*1305*1510 | 50 | |||||
| 2500 | 1830 | 0.1 | 21200 | 4570 | 2120*1430*1575 | 50 | ||||||
2.1, For transformer whose rated capacity is 500 KVA and below, the load loss value above the slash in the table is suitable for Dyn11 or Yzn11 connection groups, and that below the slash for YynO connection groups.
2.2, Transformers whose HV tapping range is ±2×2.5 may be provided, if need be.
2.3, Transformers whose LV is 0.69KV may be provided, if need be.
2.4, Users may choose other loss values as they need.
2.5, Due to product upgrading and changes to the external dimensions and products in the table, please refer to the external dimensions provided at the time of ordering.
3.Company Introduction
Shandong Yangxin Genshen Electric Co., Ltd (GSE) was founded in 2012 and her subsidiary,Qingdao Yaoutongxing International Trading Co.Ltd, is founded in Qingdao. registered capital of 50 million yuan, covers an area of 50 acres, production workshop 15000 square meters, 150 employees, annual sales reached about 80000000 yuan is a high-tech enterprise integrated R&D, production, sales.
GSE have advanced production lines, testing equipments, ensuring the products with excellent quality. " Survive on high quality and seek development with prestige " is GSE principle, "customer first, quality first" is GSE purpose; "service above all, responsibility above all". We are committed to the prosperity and development of electric power and security. We sincerely welcome both domestic and overseas customers to come and visit us.
4.Certificate
GSE is one of the strongest influence and expertise enterprises in North China, with ISO9001 quality management system, OHSAS18001 occupation health and safety management system and ISO14001 environmental management system certification, 3C certification.
5.GSE Main Product
GSE main products: electric meter box, cable casing, high and low voltage electrical switchgear, transformer, box type substation, cable branch box, distribution box, ring network cabinet, JP cabinet, power distribution box, low voltage reactive power compensation control cabinet, electric energy metering box, high voltage metering device, porcelain insulator, composite insulator, transformer oil, electrical equipment, instrumentation, and insulated wire wire and cable, communication cable, cable accessories, monitoring equipment, electrical fittings and electrical equipment processing, Glass fiber reinforced plastics material with sheath (SMC), PC+ABS material metering box system Products, electric vehicle charging equipment, photovoltaic power generation equipment (excluding generators), wind power equipment production and sales.
Should you have any problem,please contact with us,we will reply to you in 24 hour.
Manager:Alvin
Mobile:+86 177 6202 7849
Email:alvin@sdgenshen.com
