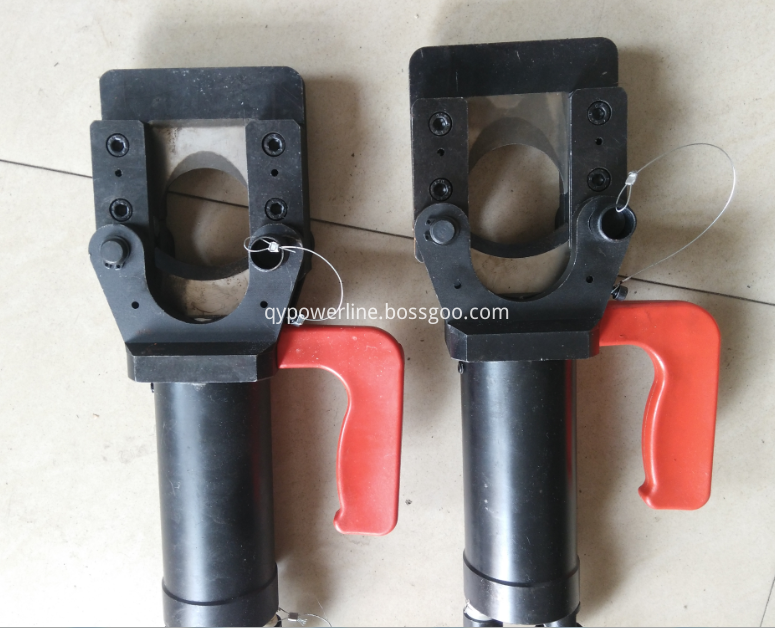

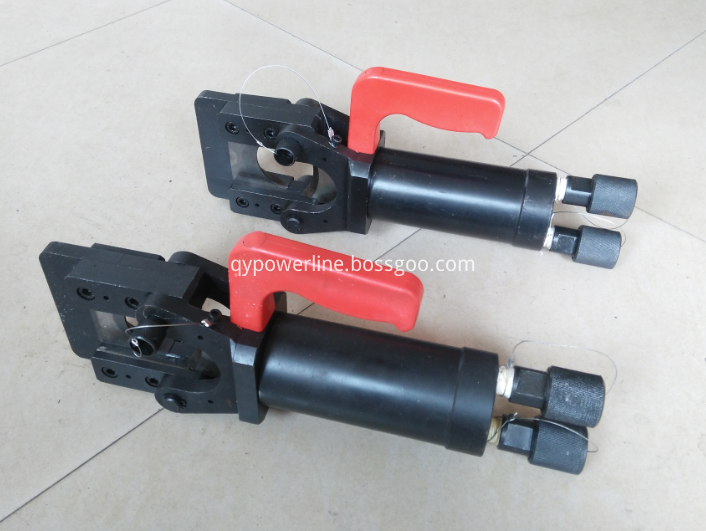

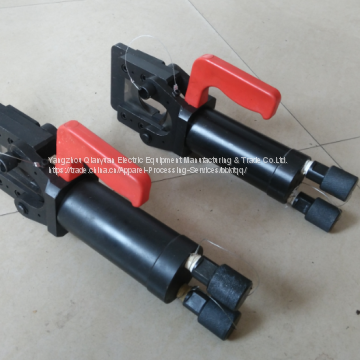

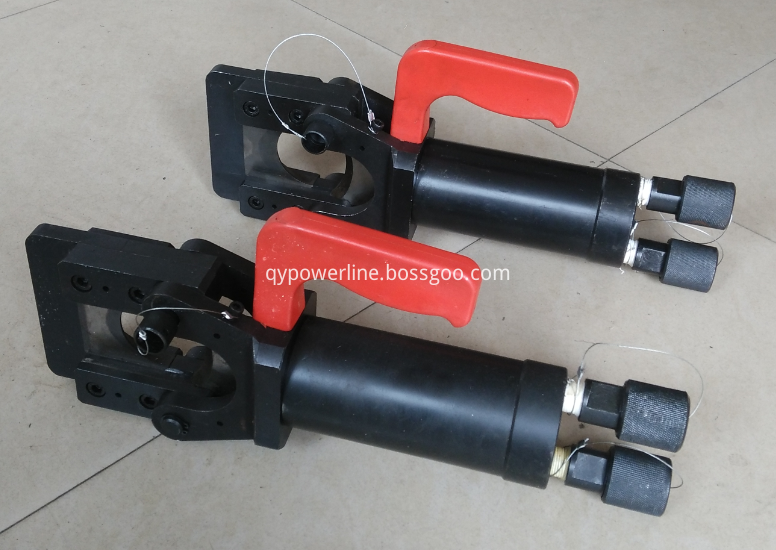

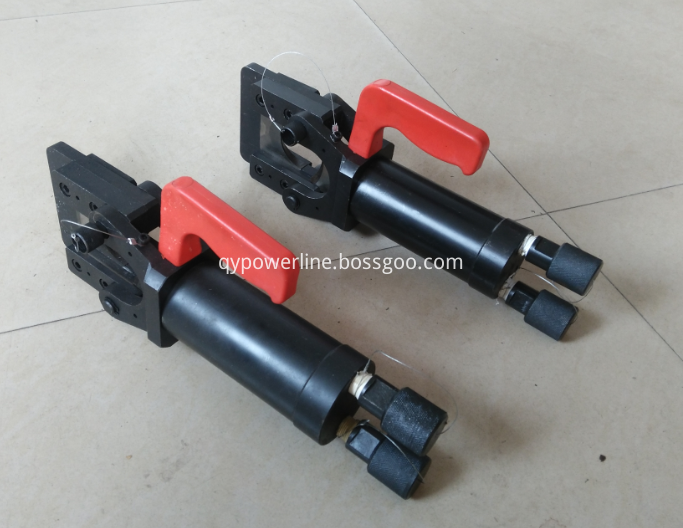

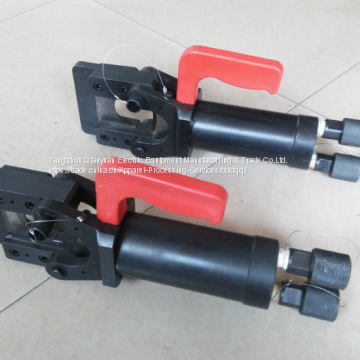

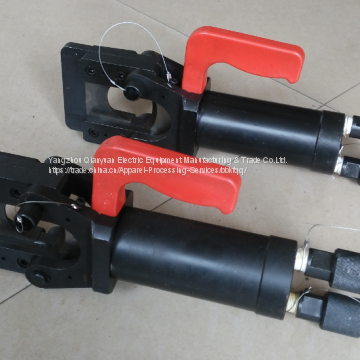

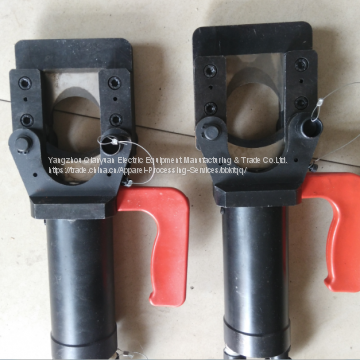

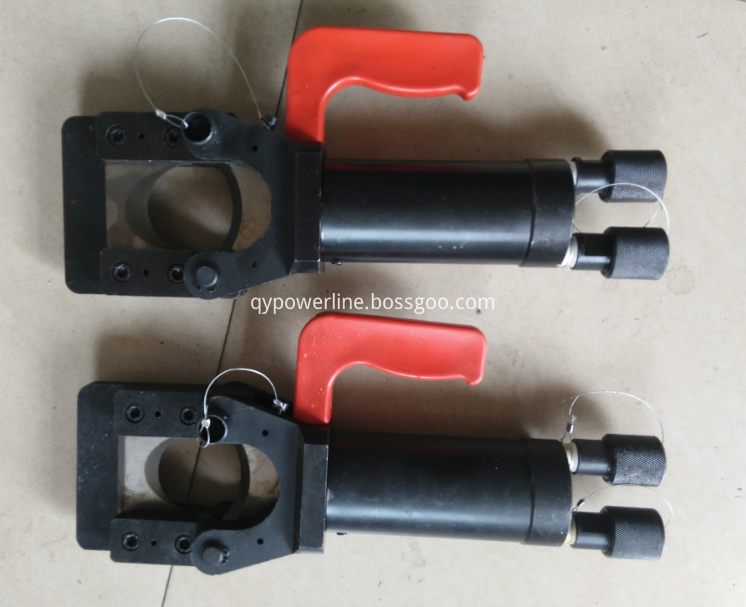

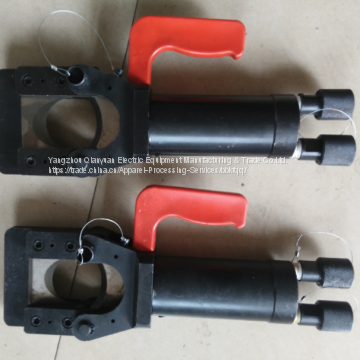

Double Oil Hose YJ-56 Hydraulic Cutter
Usage:It is used to fast cut off every kind of large ACSR,high strength alum alloy conductor and steel and Alum Cable in high voltage or super high voltage electric power line transmission project.It is specially suitable for cutting large quantity conductors in hydraulic puller or tensioner working spot.it must be used by coupled with engine motorized and electric hydraulic pump of double oil hose type.
Characteristics:It has no orientation limit,easily operated,light,safe and reliable and easy for maintenance.
Technical Data:
| Product No. | Model | Rated Pressure (Mpa) | Rated Load (KN) | Max Cutting Diameter (mm) | Cutting Time
| Weight (Kg) | Dimension (L*W*H)(mm) |
| 10512-3 | YJ-56 | 80 | 160 | 56 | 4-8 times/Sec
| 6.8 | 358*140*90 |

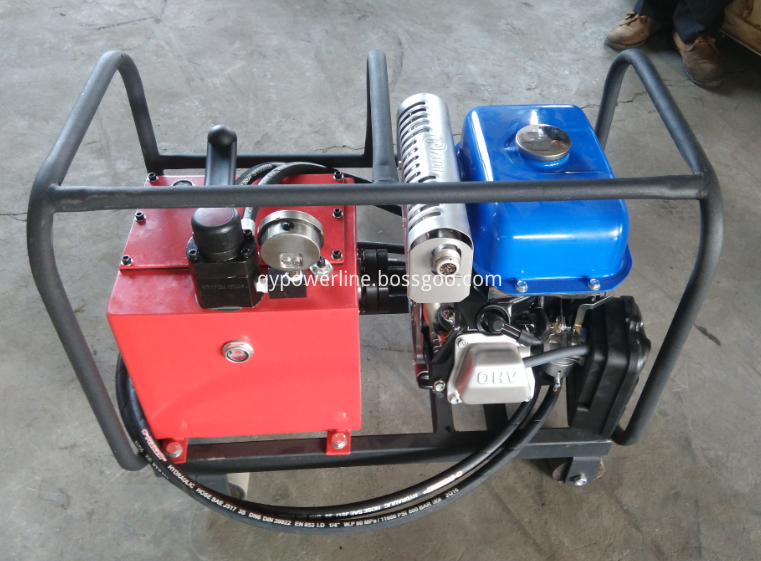

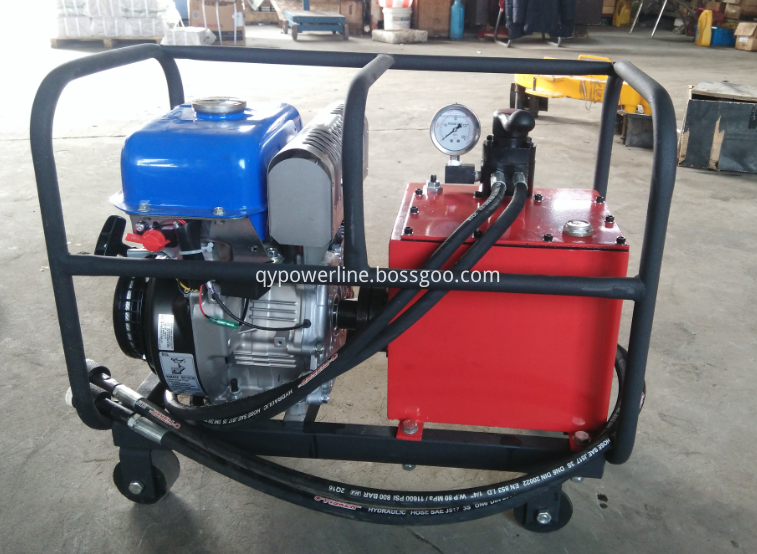

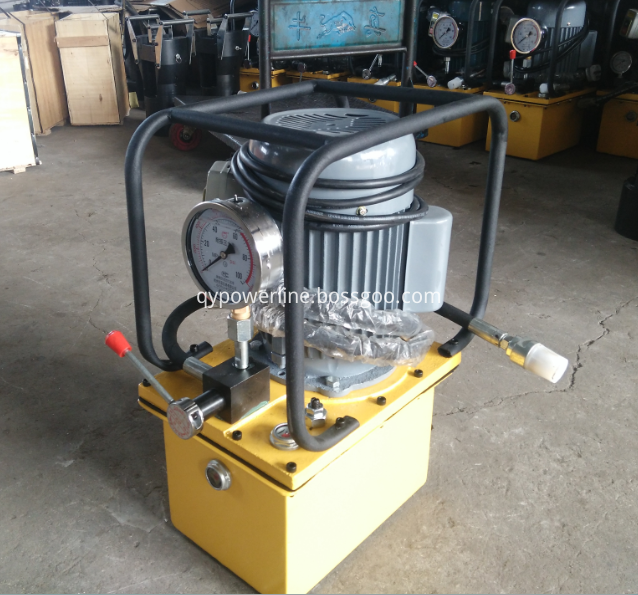

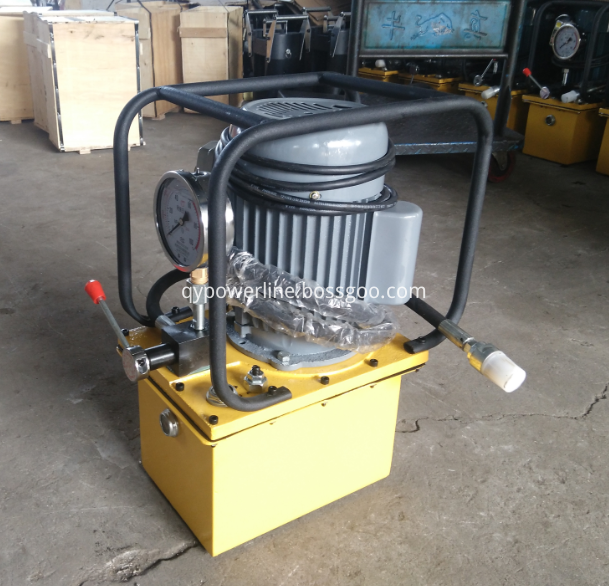

This kind of YJ-56 Hydraulic Cable Cutter 56mm can be coupled with following engine motorized and electric hydraulic pump of double oil hose type.
