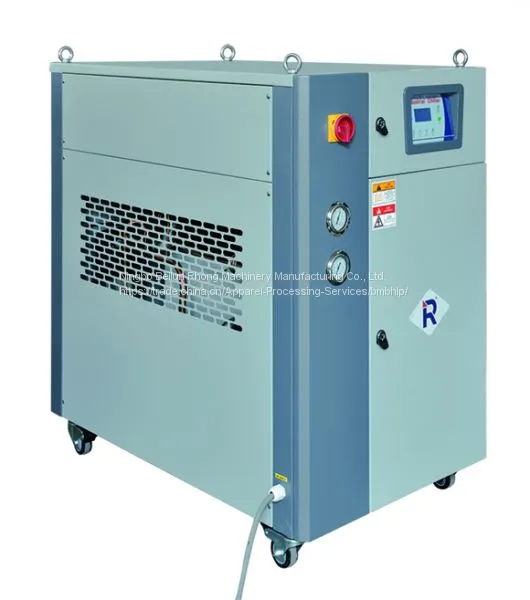

RCM-W are appicable for cooling moulds to reduce products molding cycle,also they are available in the cooling of equipments in order to maintain a normal temperature.Besides,they are suitable for other industries with the need of cooling
Good features:
1) Cooling temperature range 5-35oC.
2) High-capacity tube-in-shell evaporator with very good heat exchange performance especially for high ambient temperature condition.
3) Tube-in-shell evaporater with excellent heat transfer and rapid cooling.
4) Stainless steel warm-keeping water tank.
5) R22 refrigerant to be used for efficient cooling.
6) R407C environment-friendly refrigerant is optional to use.
7) Overload protection for compressor, pump and blower.
8) Independent temperature controller, anti-freeze protection.
9) Phase sequence protection for control circuit, refrigeration loop controlled by high and low pressure switch.
10) Warm-keeping design for all piping to avoid partial convection.
11) Suitable for machine cooling in industries of plastics, electroplating, foodstuff, electronic products, bleaching and dyeing, ultrasonics.
| RCM-3W | RCM-4W | RCM-5W | RCM-8W | RCM-10W | RCM-12.5W | RCM-15W | RCM-20W | RCM-25W | RCM-30W | |||
| Chilling capacity | kw | 7.5 | 10 | 13.5 | 20 | 25.5 | 31.5 | 38.5 | 50 | 62.5 | 77.5 | |
| Kcal/hr | 6500 | 9000 | 11500 | 16500 | 22000 | 27000 | 33000 | 44000 | 54000 | 66500 | ||
| Compressor output power | HP | 3 | 4 | 5 | 8 | 10 | 12.5 | 15 | 20 | 25 | 30 | |
| Refrigerant | - | R22 R407C | ||||||||||
| Evaporator | - | Plate type | ||||||||||
| Condenser | - | Plate type | ||||||||||
| Condenser in/out pipe diam | inch | 1" | 1½" | 2" | 2½" | |||||||
| Tank capacity | L | 50 | 100 | 150 | 180 | 200 | 280 | |||||
| Pumping Power | Kw | 0.75 | 1.1 | 2.2 | 2.2 | |||||||
| Pump Max flowrate | L/min | 80 | 150 | 250 | 400 | |||||||
| Pump Max pressure | kg/cm2 | 2.0 | ||||||||||
| Chilled Water outlet | lnch | 1/2"*4 | 1½" | 2" | 2½" | |||||||
| Chilled size intlet | lnch | 1/2"*4 | 1½" | 2" | 2½" | |||||||
| Overflow Port | lnch | 1/2" | ||||||||||
| Dimension WxLxH | mm | 760*1250*980 | 800*1280*1050 | 850*1450*1250 | 1000*2000*1400 | |||||||
| Weight | Kg | 120 | 140 | 180 | 220 | 280 | 350 | 400 | 450 | 550 | 600 | |
Plesase excuse for not note if some specifications of products are changed
Note: 1) The cooling capacity is measured when the outgoing water temperature is 12oC and ambient temperature is 30oC.
2) The refrigerant can use R407.For coding,use "N".For example,RCM-10A-N.
3) The stardard voltage is 3¢,380V,50Hz. We also can make it as your requirments.
