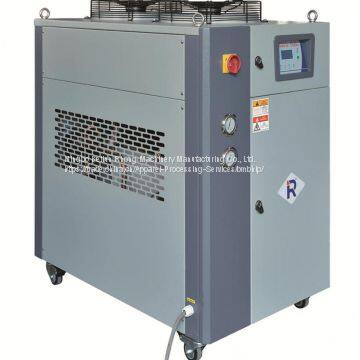

Help CenterAir-cooled Central Water Chillers
Related Products
RCM-A are appicable for cooling moulds to reduce products molding cycle,also they are available in the cooling of equipments in order to maintain a normal temperature.Besides,they are suitable for other industries with the need of cooling
Good features:
1. Cooling temperature range 5-35 ℃.
2. High-capacity tube-in-shell evaporator with very good heat exchange performance especially under high ambient temperature condition.
3. Tube-fin double condensers with excellent heat transfer and rapid cooling.
4. Stainless steel warm-keeping tank.
5. R22 refrigerant to be used for efficient cooling.
6. R407 environment-friendly refrigerant is optional to use.
7. Overload protection for compressor, pump and blower.
8. Independent temperature controller, anti-freeze protection.
9. Phase sequence protection for control circuit, refrigeration loop controlled by high and low pressure switch.
10. Warm-keeping design for all piping to avoid partial convection.
11. Suitable for machine cooling in industries of plastics, electroplating, foodstuff, electronic products, bleaching and dyeing, ultrasonic.
RCM-3A RCM-4A RCM-5A RCM-8A RCM-10A RCM-12.5A RCM-15A RCM-20A RCM-25A RCM-30A Chilling capacity kw 7.5 10 13.5 20 25.5 31.5 38.5 50 62.5 77.5 Kcal/hr 6500 9000 11500 16500 22000 27000 33000 44000 54000 66500 Compressor output power HP 3 4 5 8 10 12.5 15 20 25 30 Refrigerant - R22 R407C Evaporator - Plate type Blower power Kw 0.25 0.19*2 0.25*2 0.25*4 0.42*6 Tank capacity L 50 65 110 150 270 350 400 Pumping Power Kw 0.75 1.1 2.2 2.2 Pump Max flowrate L/min 80 150 250 400 Pump Max pressure kg/cm2 2.0 Pipe size outlet lnch 1"*1 1½" 2" 2½" Pipe size intlet lnch 1"*1 1½" 2" 2½" Drainage outlet lnch 1/2" Overflow Port lnch 1/2" Weight Kg 120 140 180 220 280 350 400 450 550 600 Extemal size mm L 1090 1090 1250 1350 1350 1700 1700 1900 2150 2150 W 760 760 760 860 96 1200 1200 1200 1480 1480 H 1250 1250 1320 1560 1620 1750 1750 1750 1800 1800
Plesase excuse for not note if some specifications of products are changed
Note: 1) The cooling capacity is measured when the outgoing water temperature is 12oC and ambient temperature is 30oC.
2) The refrigerant can use R407.For coding,use "N".For example,RCM-10A-N.
3) The stardard voltage is 3¢,380V,50Hz. We also can make it as your requirments.
