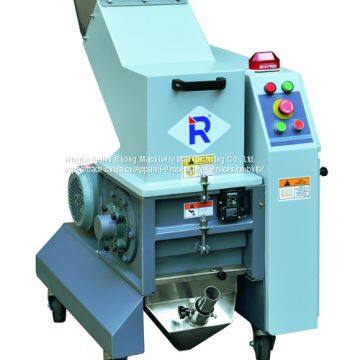

The medium-speed beside-the-press granulators of RG-16 series are used together with plastics molding machine.It is designed to crushing various shorts,reuse and semi-finished products made of plastic and rubber materials such as softPC,polycarbonate,nylon,ABS and so on in sheet,twig or mesh shapes.
The machine is characterized with compact structure,attractive appearance,convenient in operation,optimized rotation knife design to achieve lowest energy consumption and higher cutting efficiency.
The characteristics of the machine:
(1)The overloading protector on the motor and interlock protection device on the power source, double protection for the safety of human being and motor

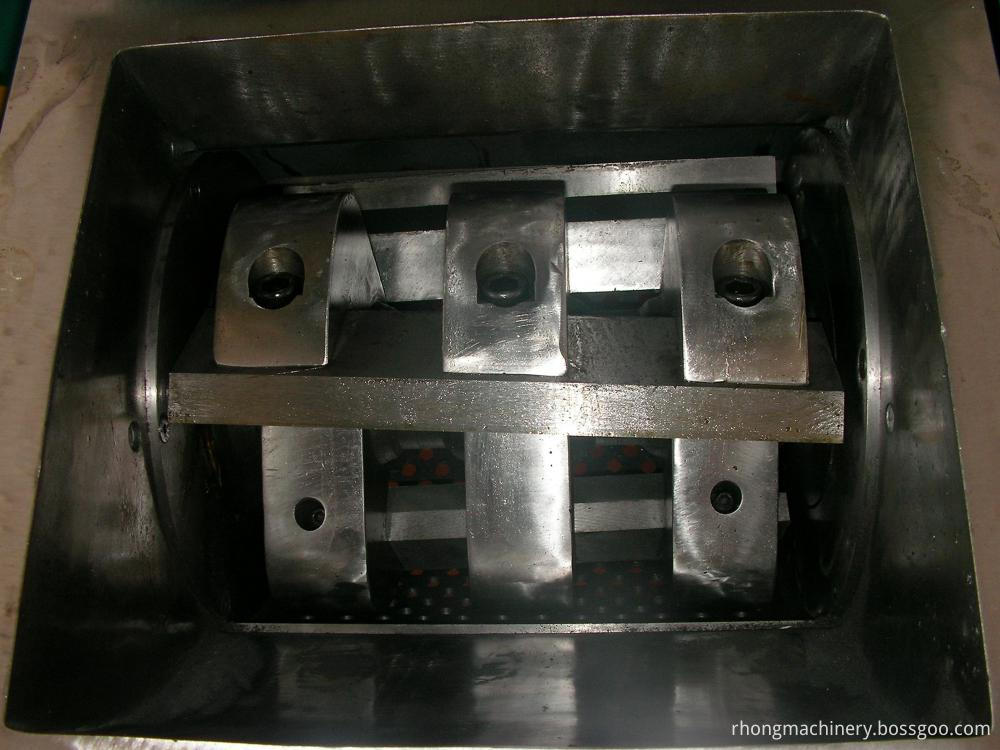

(2)Paddle-blades rotor adopting shear principle, made of high contented chromium steel,shred various plastics easily
(3)The gap between knives is adjustable. The knives can be dismounted when unsharp, to be used repeatedly, long time using life
(4)Separable design,the bunker, main body, mesh frame are dismounted easily, convenient for bunker cleaning
(5)Equipped with blower
(6)With wheeled feet,convenient for moving
(7)Optional purchase with RPV proportional valve
| Model | RG-1619 | RG-1626 | |
| Power | kw | 1.5 | 2.2 |
| Rotor speed | rpm | 375 | 375 |
| Rotating blades | pcs | 3 | 3 |
| Fixed blades | pcs | 2 | 2 |
| Screen Diameter | mm | φ6 | φ6 |
| Cutting Chamber Size | mm | 160×190 | 160×260 |
| Output | kg/h | 80-160 | 100-200 |
| Noise | dB(A) | 80-85 | 80-85 |
| Blower Conveying Device | | ● | ● |
| Instantaneous recycling system | | ● | ● |
| Fixed Magnet at feeding Mouth | | ○ | ○ |
| Compressed-air Conveying Device | | ○ | ○ |
| Proportional-valve Conveying Device | | ○ | ○ |
| Material Box | | ○ | ○ |
| Weight | kg | 162 | 178 |
Please excuse for not note if some specifications of products are changed.
Note:
1)"●"is standard allocation, "○"is selection purchase.
2)The max .shreding quantity depend on the mesh holediameter and shredding material quality.
3)The varied boise depend on varied shredding material.
4)The machine voltage specification is 3φ 380V 50Hz. The voltage can be changed as you require.
External size mm
| Model | RG-1619 | RG-1626 | |
| A | 190 | 260 | |
| B | 160 | 160 | |
| C | 695 | 765 | |
| D | 725 | 725 | |
| H | 1190 | 1190 | |

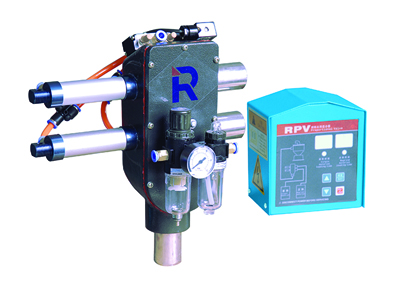

RPV proportional valve
