Product Name: SPM (single point mooring)
Material:polyamide (nylon 66)
Products Description: SPM rope is in adopting a double circular structure. Single Point Mooring(Nylon 66) a kind of innovation design, compared with the traditional structure of the ropes, has higher strength and better abrasion resistance and longer service life.

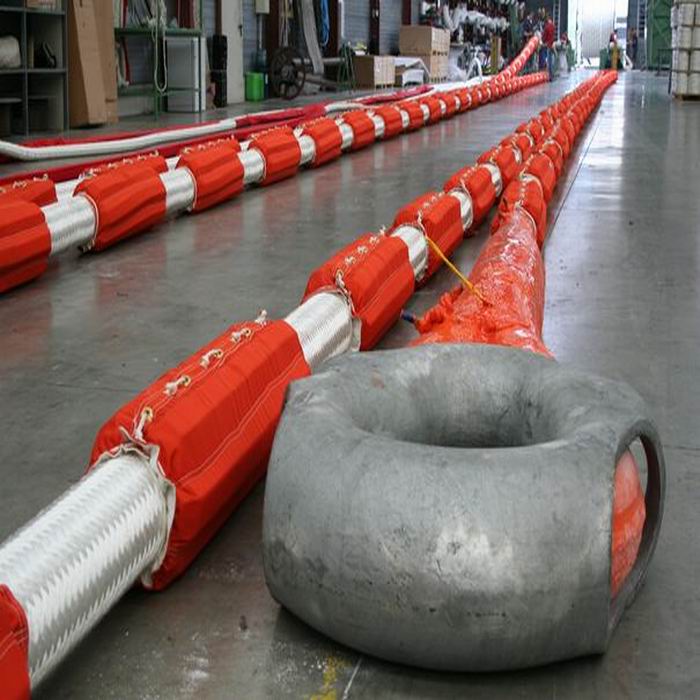

Both eyes in the end are come with a metal thimble, polyester jacket should be covering the rope where it has the thimble (the thickness of jacket is not less than 6 mm), then the rope outer coating a layer of polyurethane glue, to increase the wear resistance of the rope. The rope from the set of 25 feet began to add floating ring, the number of floating shall meet the prescribed requirements.
Rope manufacturing OCIMF standard requirements.
| Parameter Table | ||||||
| dia | cir | weight | MBL/single leg type | MBL/ grommet type | ||
| mm | inch | kgs/100m | ton | kn | ton | kn |
| 80 | 10 | 406 | 132 | 1290 | 237 | 2320 |
| 88 | 11 | 506 | 167 | 1630 | 300 | 2940 |
| 96 | 12 | 585 | 191 | 1870 | 344 | 3370 |
| 104 | 13 | 699 | 222 | 2180 | 410 | 4020 |
| 112 | 14 | 798 | 263 | 2580 | 473 | 4640 |
| 120 | 15 | 914 | 298 | 2920 | 537 | 5260 |
| 128 | 16 | 1031 | 335 | 3280 | 603 | 5910 |
| 136 | 17 | 1164 | 382 | 3750 | 688 | 6740 |
| 144 | 18 | 1316 | 429 | 4210 | 773 | 7580 |
| 152 | 19 | 1490 | 478 | 4680 | 860 | 8430 |
| 160 | 20 | 1624 | 526 | 5160 | 947 | 9280 |
| 168 | 21 | 1785 | 574 | 5620 | 1033 | 10120 |
| 176 | 22 | 1986 | 641 | 6280 | 1153 | 11300 |
| 184 | 23 | 2165 | 693 | 6790 | 1248 | 12230 |
| 192 | 24 | 2351 | 741 | 7260 | 1334 | 13070 |
| 200 | 25 | 2554 | 811 | 7940 | 1459 | 14300 |
| 208 | 26 | 2756 | 884 | 8670 | 1592 | 15600 |
| 216 | 27 | 2957 | 952 | 9330 | 1714 | 16800 |
| 224 | 28 | 3161 | 1026 | 10050 | 1846 | 18090 |
| 232 | 29 | 3390 | 1094 | 10720 | 1969 | 19300 |
| 240 | 30 | 3628 | 1173 | 11500 | 2112 | 20700 |
| 248 | 31 | 3874 | 1257 | 12320 | 2262 | 22170 |
| 256 | 32 | 4128 | 1340 | 13130 | 2411 | 23630 |
