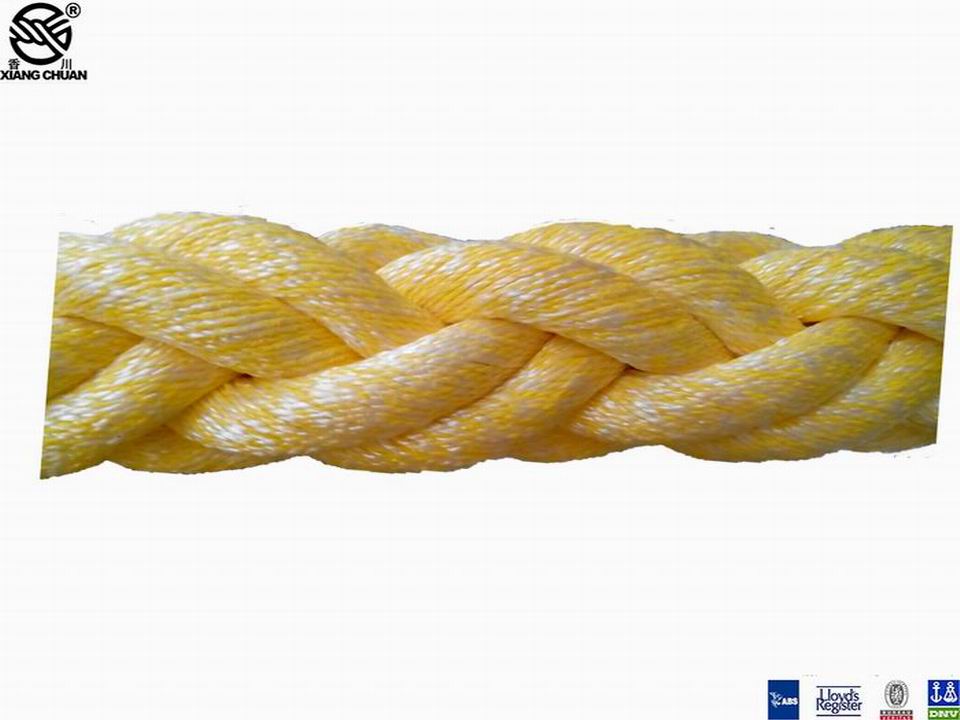

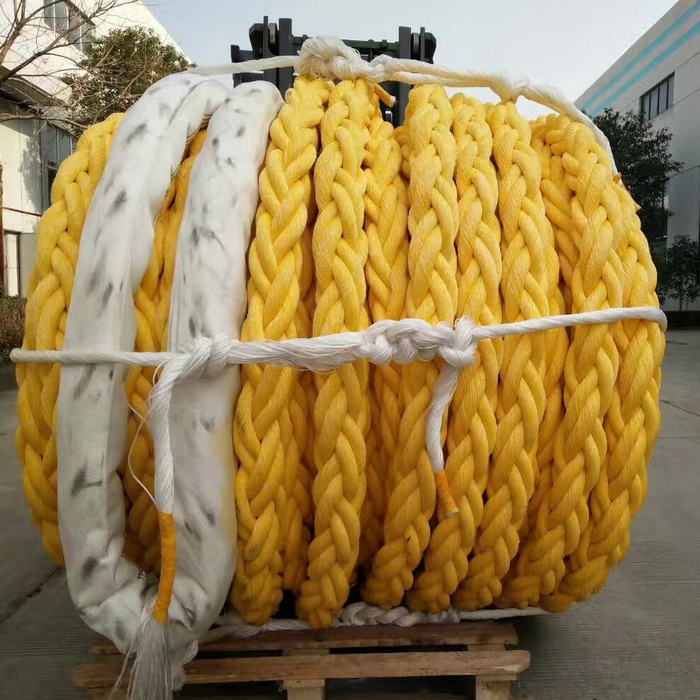

Product Name: XCFLEX rope
Material:high strength Xiangchuan fiber and polyester
Products Description: XCFLEX PP&Polyester Mixed Rope is high strength rope made of high performance Xiangchuan PP Fiber and polyester mixed. The combination and structure is perfect and make the mixed rope low elongation. Also when using the mixed rope can keep better stability and security . In addition, good wear resistance and more widely used is XCFLEX PP and Polyester Mixed rope's advantage. XCFLEX PP&Polyester Mixed Rope are composed by 8 or 12 strands.
Application: mooring line, anchor line, towing rope
| Length per coil: 220m Spliced strength: ±10% lower Weight and length tolerance: ±5% MBL: ISO 2307 strandard Other sizes can be customized | |||||
| Parameter Table | |||||
| dia | cir | weight |
| mbl |
|
| mm | inch | kgs/100m | lbs/100ft | ton | kn |
| 24 | 3 | 33 | 22 | 12.3 | 123 |
| 28 | 3–1/2 | 46 | 30 | 16.6 | 163 |
| 32 | 4 | 59 | 39 | 21.3 | 209 |
| 36 | 4–1/2 | 74 | 49 | 26.5 | 260 |
| 40 | 5 | 90 | 59 | 32 | 314 |
| 44 | 5–1/2 | 109 | 72 | 38 | 373 |
| 48 | 6 | 130 | 86 | 42 | 432 |
| 50 | 6–1/4 | 141 | 93 | 47 | 460 |
| 52 | 6–1/2 | 149 | 98 | 51 | 500 |
| 56 | 7 | 178 | 117 | 59 | 579 |
| 60 | 7–1/2 | 200 | 132 | 67.3 | 660 |
| 64 | 8 | 220 | 145 | 75 | 736 |
| 68 | 8–1/2 | 249 | 165 | 84 | 825 |
| 70 | 8–11/16 | 267 | 176 | 87 | 853 |
| 72 | 9 | 280 | 185 | 94 | 923 |
| 80 | 10 | 340 | 224 | 114 | 1119 |
| 85 | 10–1/2 | 370 | 244 | 130 | 1274 |
| 88 | 11 | 420 | 277 | 138 | 1354 |
| 96 | 12 | 498 | 329 | 163 | 1600 |
| 104 | 13 | 580 | 383 | 192 | 1884 |
| 112 | 14 | 670 | 442 | 221 | 2168 |
| 120 | 15 | 770 | 508 | 253 | 2482 |
