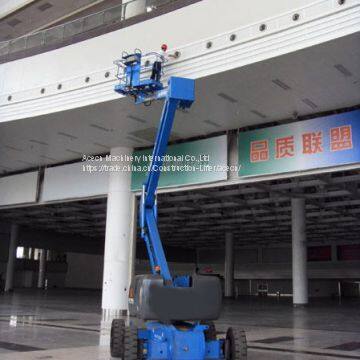

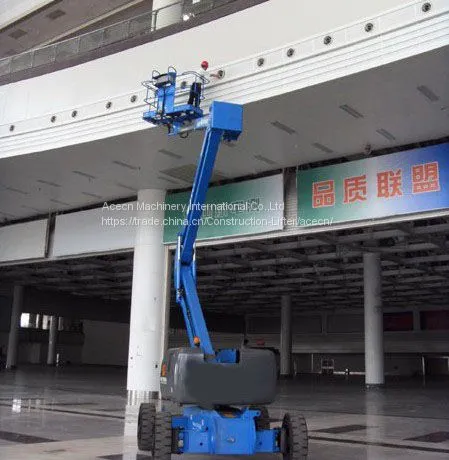

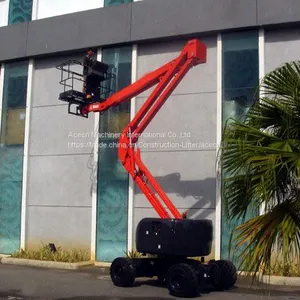

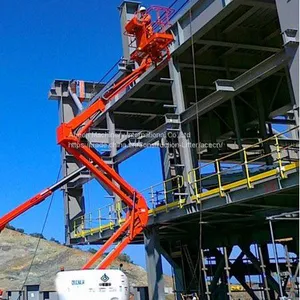

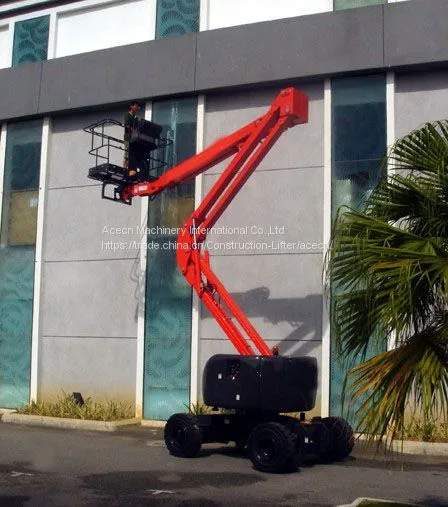

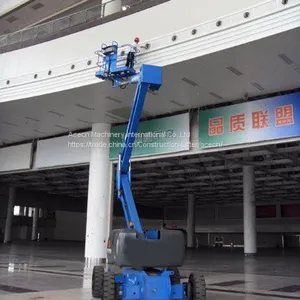

GTZZ15J Articulating Boom Lift is widely used for ship building and repairing, construction, civil engineering, electric power, communications, gardening, advertising, venues and stadiums, airport, harbor and various large factories and mines. It can meet the needs of different customers. The boom is multi-stage foldable design, flexible and convenient; a two or four-wheel driving mechanism is used; the self-adaption oscillating axle is available for option, thus providing excellent stability and offroad performance. The platform can swing 160° horizontally, so that it is able to stride some barriers and work at several points without moving around all time. Furthermore, it can reach the point hard to access by traditional machine.
1. Wide operating range: 355°full direction operation at the height from 0~55 ft (17m), with a horizontal reach max. by 27 ft 9 in (8.5 m) and a crossing height of 24 ft 6 in (7.5 m).
2. Large load capacity: The lift capacity is 551 lbs (250 kg); the platform can hold two operators and some auxiliary tools.
3. Powerful driving force: The engine is of famous international brand, large in power and excellent in gradeability. The maximal gradeability can be up to 40%.
4. Advanced technology: Self-adaption oscillating axle, fault self-diagnosis technique, anti-collision transducer device, and hydraulic self-levelling system.
5. High reliability: The engine, key hydraulic components and electric components are all of international brand, designed in conformity with EN280, AS1418.10 and GB25849.
6. Good safety: Overload limit and rollover protection system, anti-collision device and self inspection and restriction against over-amplitude are optional.
7. Easy maintenance: The engine can be screwed off for maintenance. It employs a self-lubricating slider. The boom system is free of maintenance.
