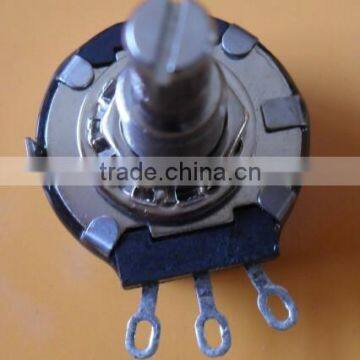

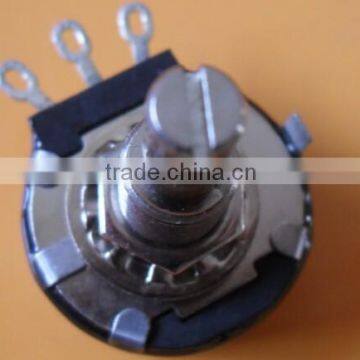

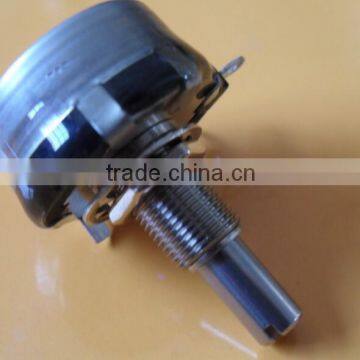

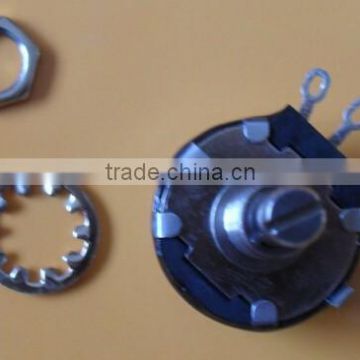

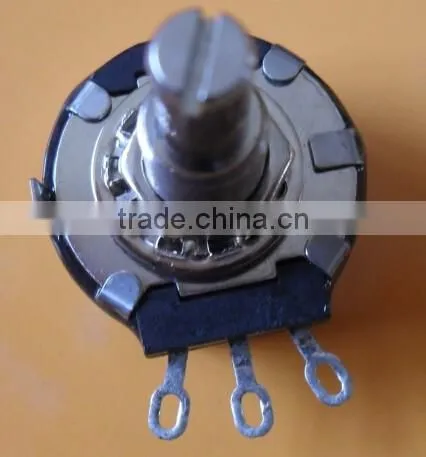

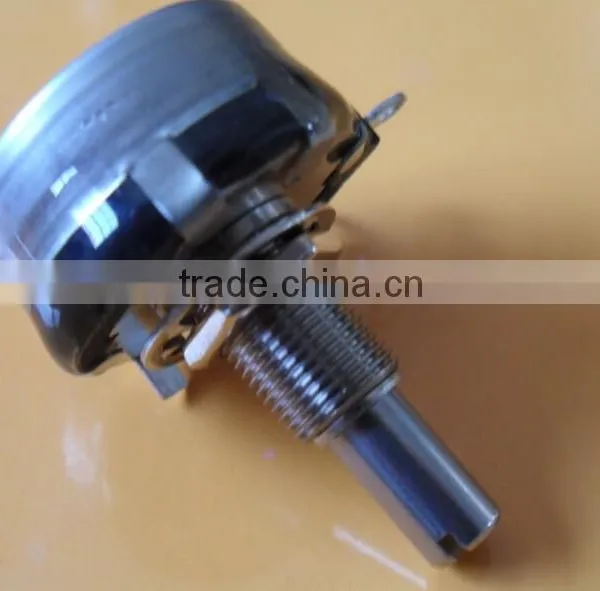

Potentiometer for Electric Accelerator Throttle
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GW
Model Number:
P27
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
GW
Model Number
P27
Resistance
0-5KΩ
Resistance Tolerance
±10%
Rated Power
2W at 70℃
Operating Temperature
-55~+120℃
Product Description
Acceleration for finger or foot control electrical equipment, cleaning trucks, recreational vehicles, classic cars, brick cars, solar boats, Widely used in electric vehicle accelerator, high precision, long life.
Product Type |
P270 |
| Resistance range, Ohms | 0-5KΩ |
| Standard resistance tolerance | ±10% |
| Residual resistance | 6Ω max |
| Input voltage,maximum | 500Vdc not to exceed power rating |
| Power rating,watts | 2W at 70℃ |
| Dielectric strength | 1000VAC,1 minute |
| insulation resistance,minimum | 50M ohms at 500Vdc |
| Sliding noise | 100mV max |
| actual electrical travel,nominal | 45° |
| Total mechanical travel | 312°±5° |
| Static stop strength,maximum | 200 oz-in |
| rotational torque | Dust proof:1.0.oz-in.max. sealed:1.0 to 2.5 oz-in |
| panel nut tightening torque | 25 lb-in |
| Rotational load life | 1 Million CYCLES(10%ΔR) |
USE of the ENVIRONMENT:
| Operation temperature range | -55~+120℃ |
| Relative humidity | +20℃ 98% |
| the vibration frequency of the fixed | 3G, 1 ~ 50Hz 0.5mm amplitude |
| Altitude | 2000m |
| Installation direction | Random |
| International protection | IP68 |
