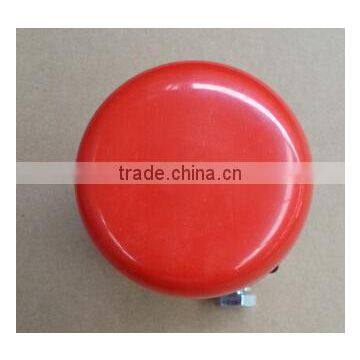

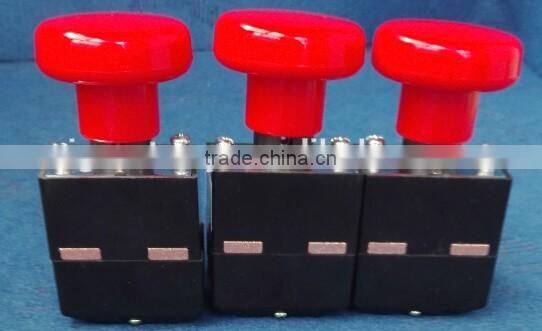

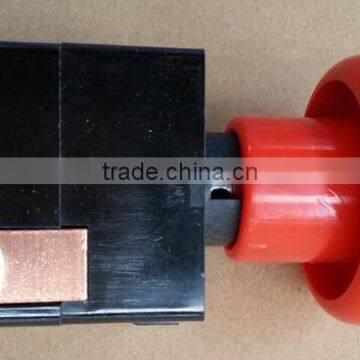

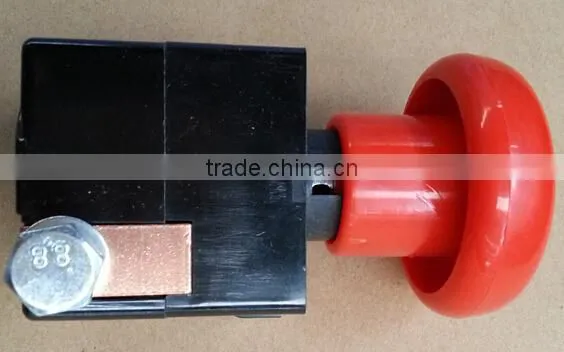

400A Emergency switch/Emergency stop switch/Emergency Power Off Switch12v/24v/36v/48v/60v/72v/96v/120v

Name: 400A Emergency switch/Emergency stop switch/Emergency Power Off Switch12v/24v/36v/48v/60v/72v/96v/120v
Brand: GW
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Product Details

Type:	Turn Signal Switch	Size:	1377	Place of Origin:	Shandong, China
Brand Name:	GW	Car Make:	Electric pallet trucks, forklift trucks, tourist vehicles, police patr	Warranty:	1 Years

USES:

Emergency switches is applicable for various electric motor car and another supporting, they are very safe and convenient.

TECHNICAL PARAMETERS:

Product Type	CZK400A
Rated voltage	12V,24V,36V,48V,60V,72V,84V,120V, etc.
Contact circuit rated load current (A)	400A
Typical voltage drop across contacts per 100A	>30mV
Insulation Resistance	20MΩ
Electric strength to resist	50Hz/60Hz 1000VAC 1minute
Typical fault currents which can be ruptured	1200A/5ms at 48V/DC
Electric Life	10 thousand times
Mechanical life	1 million times
Work specification	Continuous
Contact form	1 NO
Contact Material	AgCdO(12)
Auxiliary contact rated load (choose)	2A/48VDC, 5A/24VDC

USE of the ENVIRONMENT:

Ambient temperature	-25~+70℃
Relative humidity	+20℃ 98%
Vibration freq. atthe fixed position	3G, 1~50Hz amplitude 0.5mm
concussion	(60~100) time/minute,Acceleration≤4g
Altitude	2000m
Installation direction	Random
International protection	IP40 (According IEC60947)

Our Services

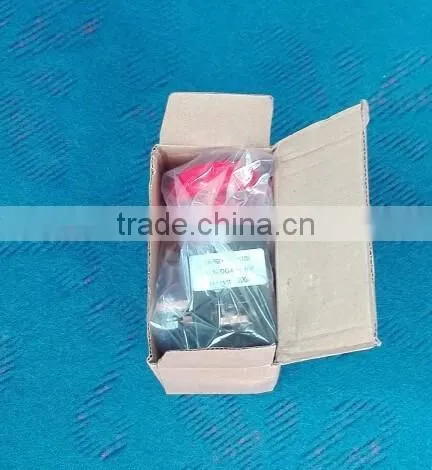

Packaging & Shipping
