The DC-DC isolated converter is specifically for car audio and video products to create, eliminate moire due to engine car LCD, motor vehicle noise such as pin 18, but also can eliminate common ground noise of car CD, DVD, MP3, hard disk player, multimedia player, etc. .

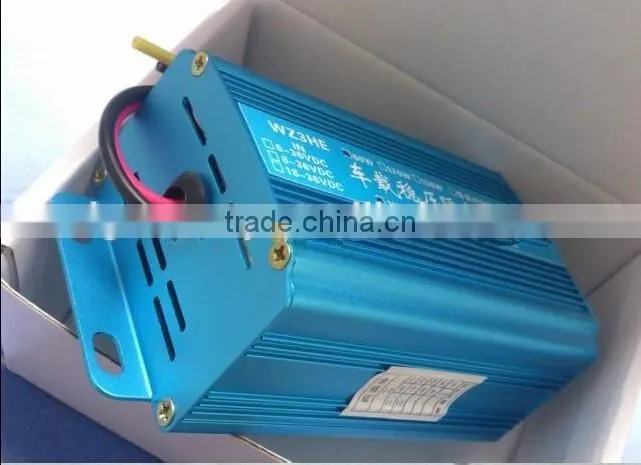

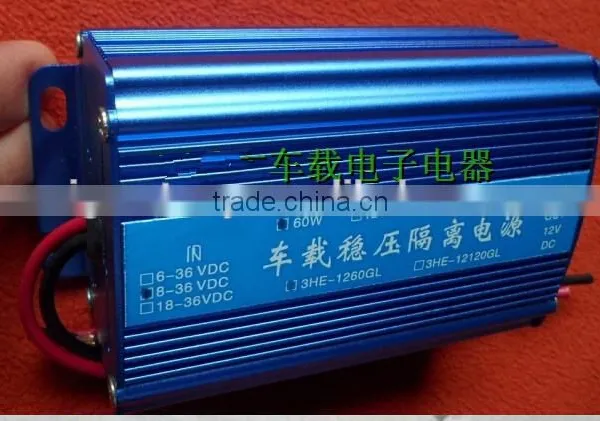

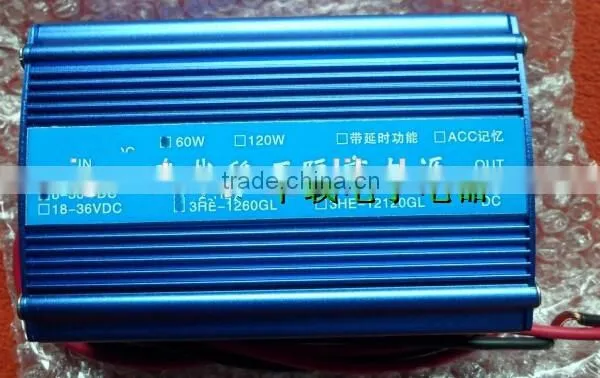

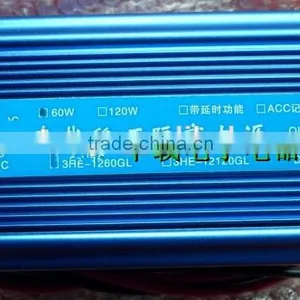

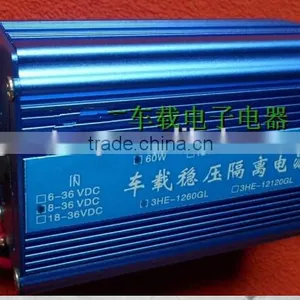

Product Name: 8-36V wide voltage to 12V 60W isolated power converter (three-three electric models with ACC regular memory)
Product Description:

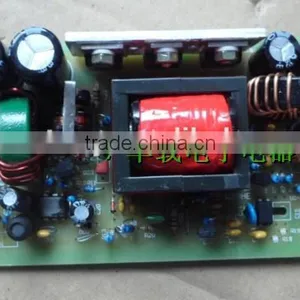

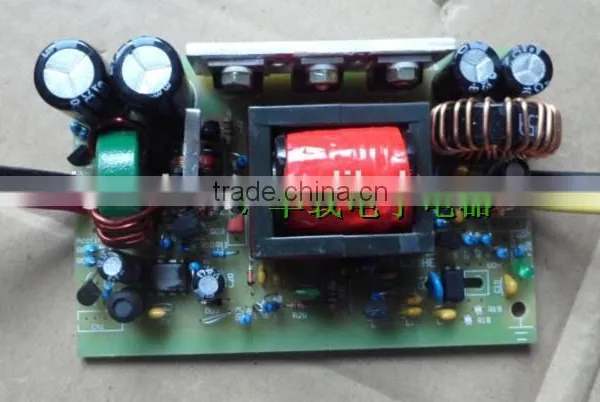

This product uses 36U of thick copper PCB board (standard 22U), circuit uses high-efficiency switching power supply for high-frequency chip, MOS tube using high-power low-resistance tube (current 75A, the internal resistance of 0.016 ohms) freewheeling diode using high-speed high-current tube, high-frequency low-impedance electrolytic capacitor capacitance.
Model: 1260BGL
the technical parameters
Input voltage: DC8V-36V
Output voltage: DC12V ( adjust the output voltage according to customer requirements )
Output Current (Max): 5A
corresponding power: 60W
output voltage ripple factor: <0.7%
quiescent current: <20mA
Conversion efficiency:> 85%
Maximum operating temperature: 80 ° C
Dimensions: 103 × 70 × 45mm
Wiring instruction
input : Bold red positive 8-36V connected battery positive, black line is negative coarse, fine red as ACC memory;
Output parts: the yellow line (positive 12V) connected to the electrical, black negative, thin red line for the ACC memory;
the function:
protection: when circuit failure caused that the output voltage is too high, the system will stop the voltage output.
overcurrent protection: when the external load is too large, causing the output current is more than 5A, the system will automatically limit the output current of 5A, guarantee stable power supply.
This product is designed for in-car audio system and anti-jamming design which can be a good solution to display or by car sound system by other electrical appliances (such as generators, air conditioning, etc.) mutations in voltage or current generated interference.
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator ,air conditioning system,electric system solution .etc
