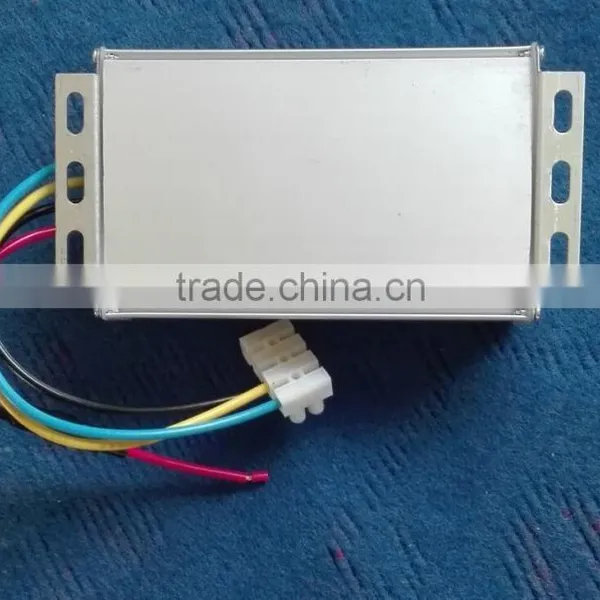

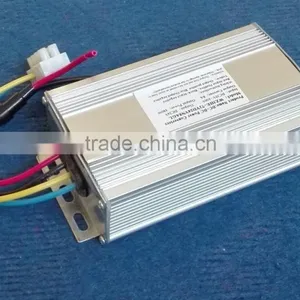

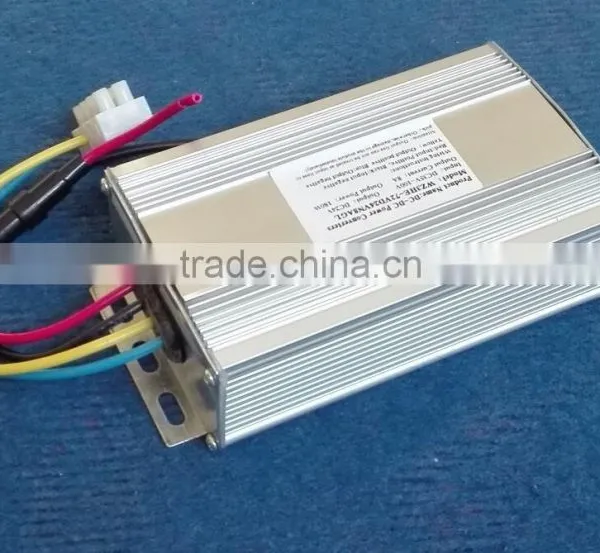

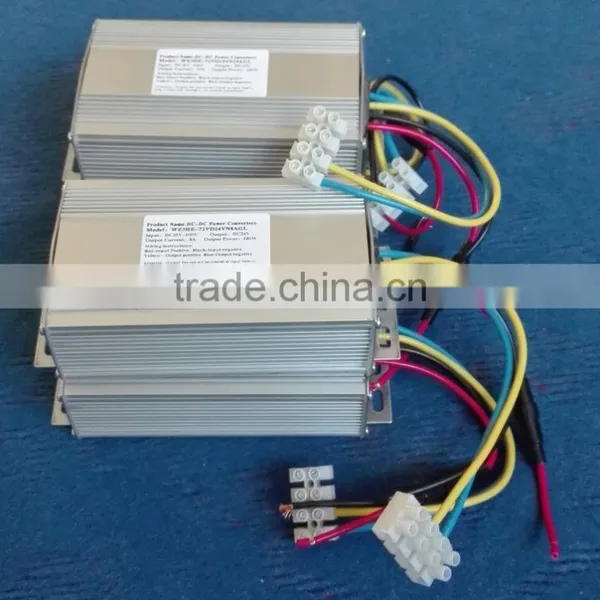

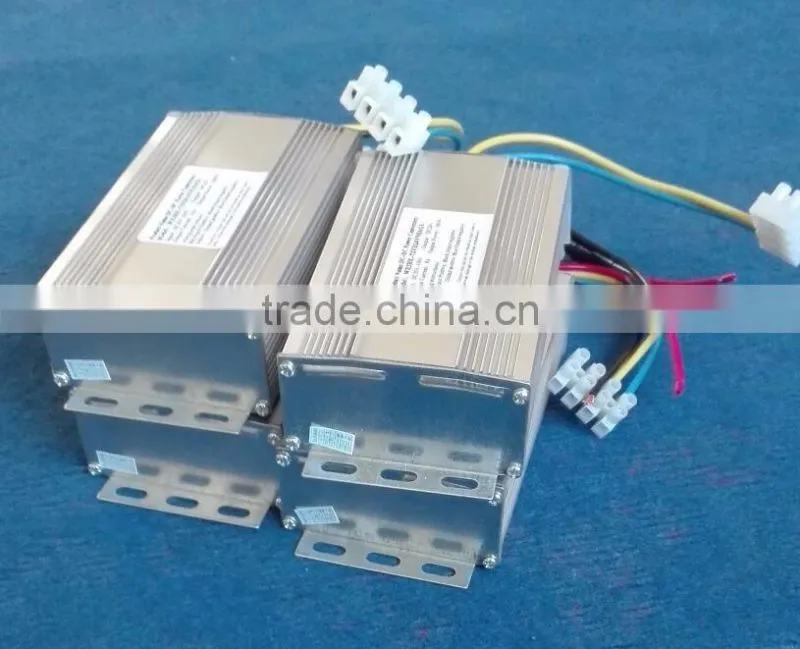

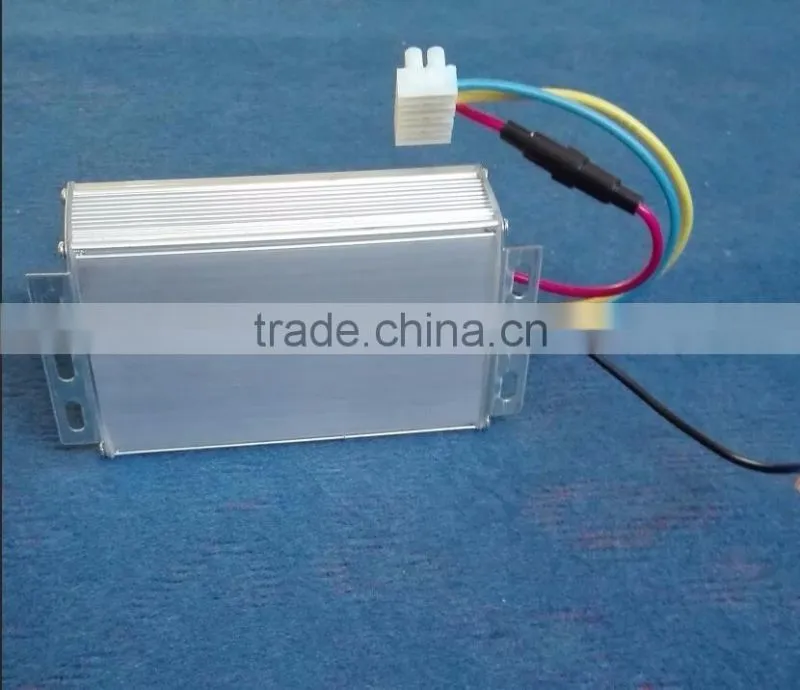

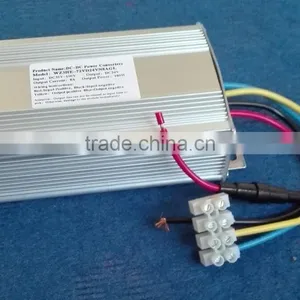

48v60v72v to 12v, 15A,180W Isolated Dc-dc Converter

 This series of DC-DC converter series uses high-frequency inverter technology, its size, weight, energy consumption, efficiency and other performance and reliability, are superior to other similar products, the input voltage range (30~ 100V) to meet the different voltage Level of electric vehicles.

Performance Introduction:

    Fast response, small size, light weight, low energy consumption, high efficiency, materials, energy saving;

    Anti-voltage fluctuations in a wide range, ability, high precision control;

    With the whole machine over temperature, the output reverse, the output over-current and short circuit protection, the use of safe and reliable;

    Low temperature, high temperature, humidity, acid rot, dust, vibration environment adaptability, stable and reliable;

    Circuit structure modular design, installation and maintenance quickly and easily.

  Features:

Highly reliable design, a full range of protection measures, can achieve the highest stability;

Wide voltage input, can effectively reduce the manufacturers inventory;

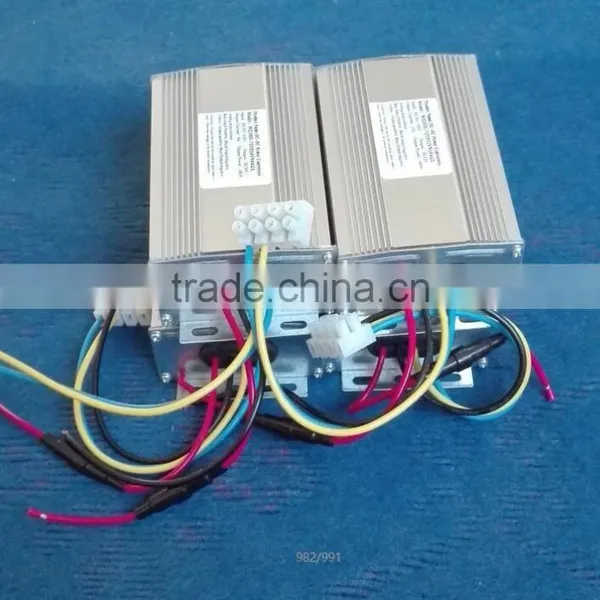

Suitable for parallel design, you can use several parallel DC-DC power supply, easy to form a high-power DC converter

Technical Parameters

Input voltage: DC 30V-100V

Output voltage: DC 12V /DC13.8v (DC12V is default value)

Output current: 15A (max)

Ripple Coefficient: ≤1%

Full load efficiency: ≥92%

Output short circuit protection: Yes

Input reverse protection: Yes

Working temperature: -20 ℃ - + 55 ℃

Storage temperature: -40 ℃ - +65 ℃

Weight: 0.45KG

Overheat protection:  when the internal temperature exceeds 85 ℃ , the output is closed,

                  When less than 75 ℃ ,  it automatically recovery work.

Anti-vibration grade:  SAEJ1378 requirements

Waterproof Grade: IP66

Size: 125 * 78 * 40MM

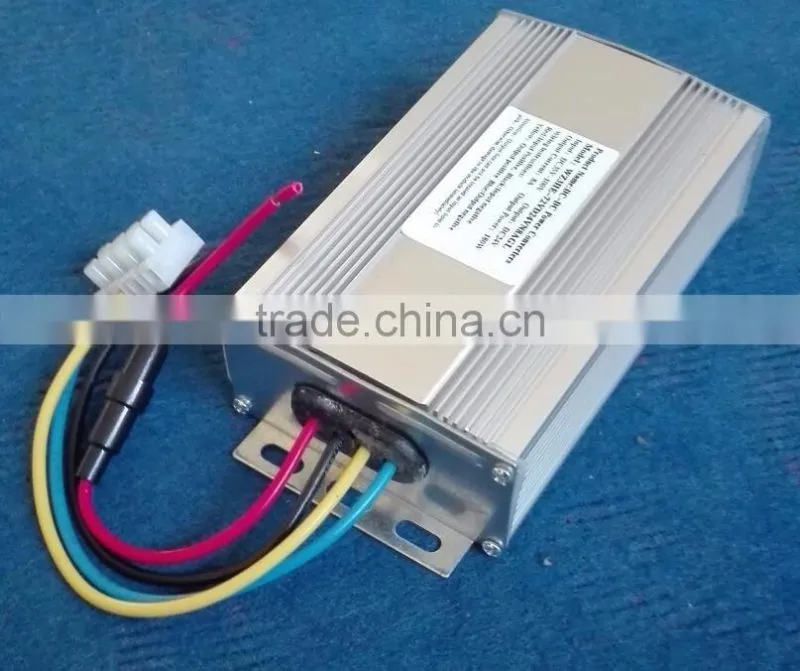

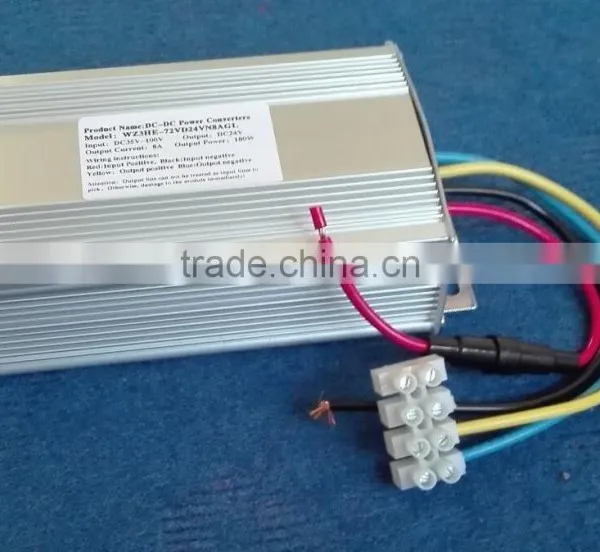

Wiring instructions:

         Input ---   red wire: positive+,  black wire : negative-

         Output ---:  yellow : positive+,  thick wire: negative-
