48v to 24v 20A 480w Waterproof DC-DC Power Converter

Dezhou Greatway Import And Export Co., Ltd.

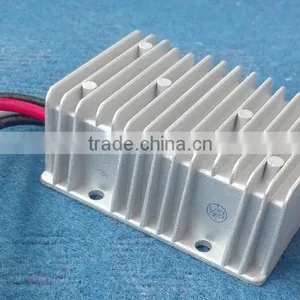

48v to 24v 20A 480w Waterproof DC-DC Power Converter thumbnail-1
48v to 24v 20A 480w Waterproof DC-DC Power Converter thumbnail-2
48v to 24v 20A 480w Waterproof DC-DC Power Converter thumbnail-3
48v to 24v 20A 480w Waterproof DC-DC Power Converter thumbnail-4

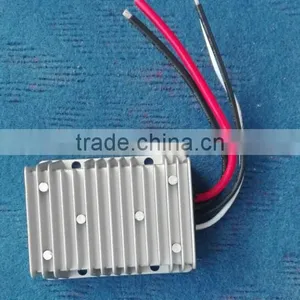

48v to 24v 20A 480w Waterproof DC-DC Power Converter thumbnail-5
48v to 24v 20A 480w Waterproof DC-DC Power Converter thumbnail-6
48v to 24v 20A 480w Waterproof DC-DC Power Converter photo-1

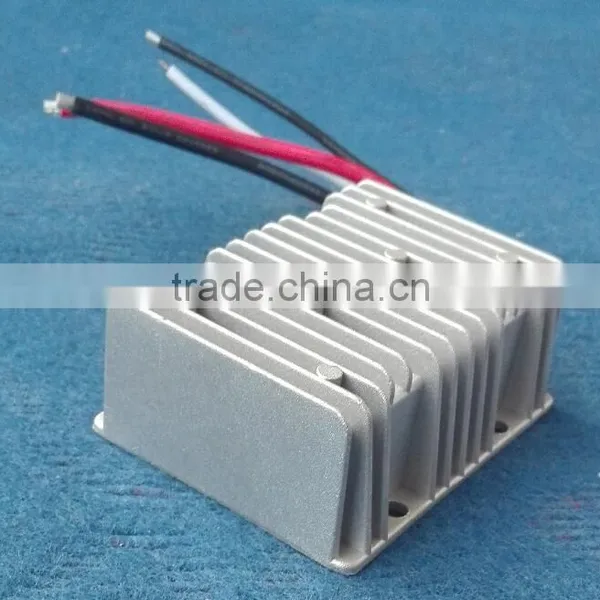

48v to 24v 20A 480w Waterproof DC-DC Power Converter photo-2

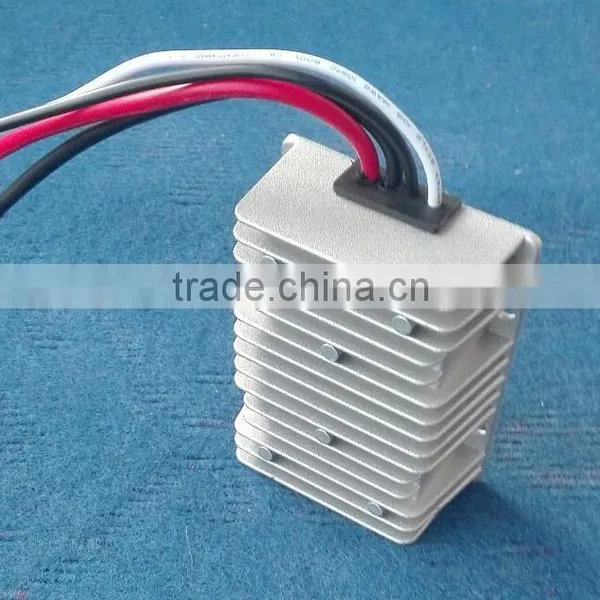

48v to 24v 20A 480w Waterproof DC-DC Power Converter photo-3

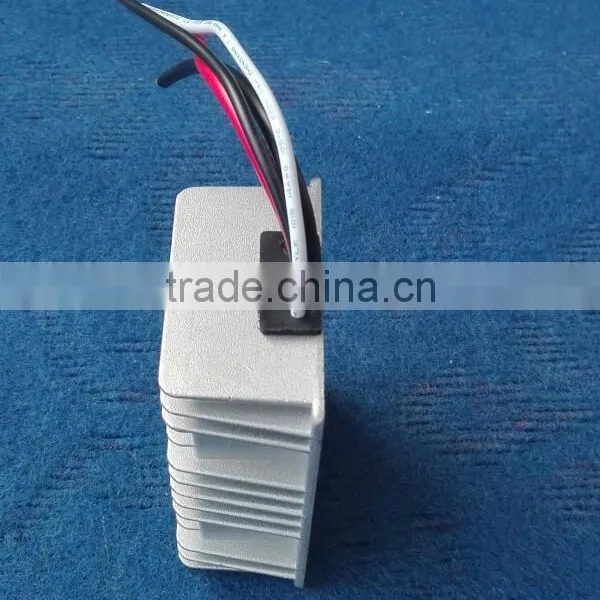

48v to 24v 20A 480w Waterproof DC-DC Power Converter photo-4

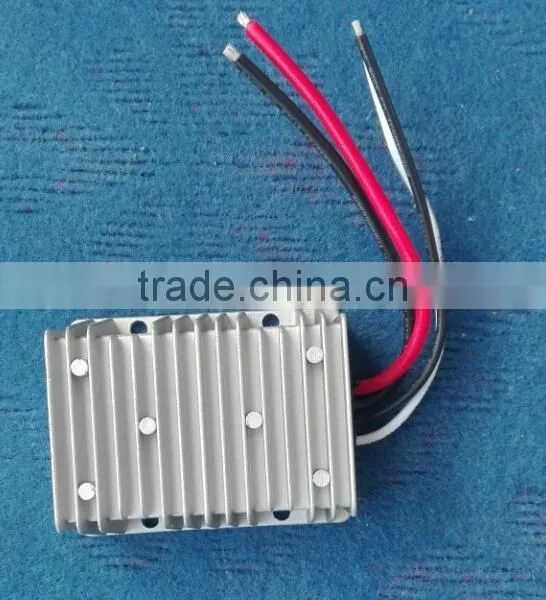

48v to 24v 20A 480w Waterproof DC-DC Power Converter photo-5

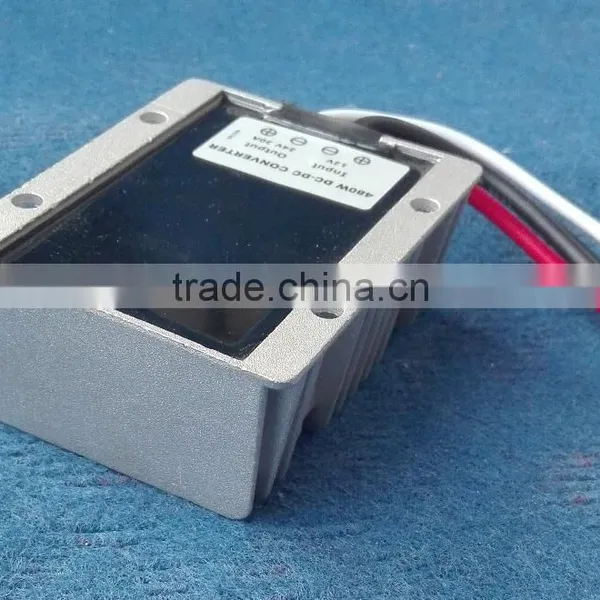

48v to 24v 20A 480w Waterproof DC-DC Power Converter photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
gw
Model Number:
GW48S2420
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name gw
Model Number GW48S2420
Output Power Other, 480w
Output Type Other, single and dual
Size 100*80*39mm
Weight 0.5kg
Input Voltage 35~60V
Output Voltage 24v
Type DC/DC Converters
Output Current 20A

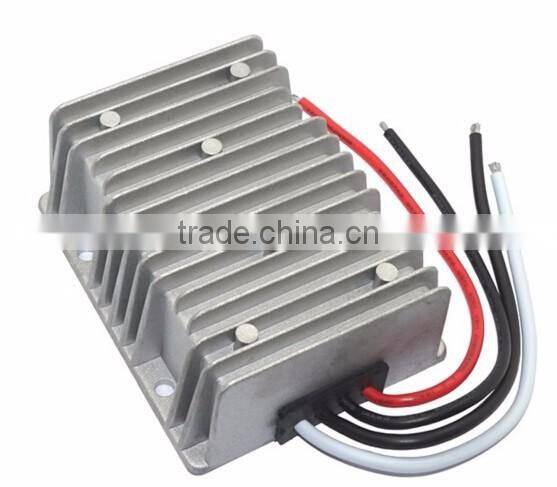

48v to 24v 20A 480w waterproof DC-DC power converter48v to 24v 20A 480w waterproof DC-DC power converter



Features:

1. 100% full power & stable current output

2. 100% Imported components

3. Wide input voltage from 35-60Vdc

4. Industry grade DC48V to DC24V step-down converter, high efficiency up to 95%

5. 100% waterproof & anti-shock protection, Ultra compact size, light weight

6. According: CE/RoHS, IP68 design

7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection

8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating

9. Non-Isolated Module,

Applications:

Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles,Wind Power System,Solar Power System,Electromotor,Telecommunications,Boat & Yacht,and so on...



Specifications:

Model

GW-48S2420

Input rated voltage

48V DC

Input voltage range

35-60V DC

Efficiency

>94%

Output voltage

24V DC

Output current

20Amps

Output rated power

480Watts

Output peak power

130Watts

Voltage regulation

< 1%

Load regulation

< 2%

Ripple (Full load test)

< 100mV

No-load current

< 20mA

No-load loss (Watt)

0.72 ~ 1.44

Working temperature

-35℃~ +80℃

Waterproof rating

IP68

Over-voltage protection

YES

Over-current protection

YES

Over-temperature protection

YES

Short-circuit protection

YES

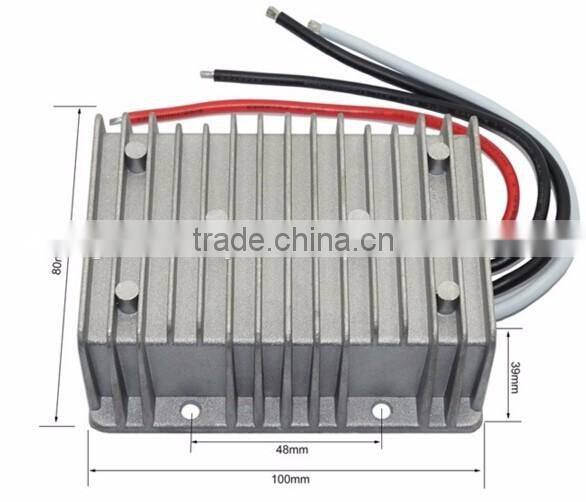

Machine size

100*80*39mm

Package size

126*91*47mm

N. Weight

290g

G. Weight

300g

Heat dissipation method

Die-cast aluminum housing

Natural heat dissipation

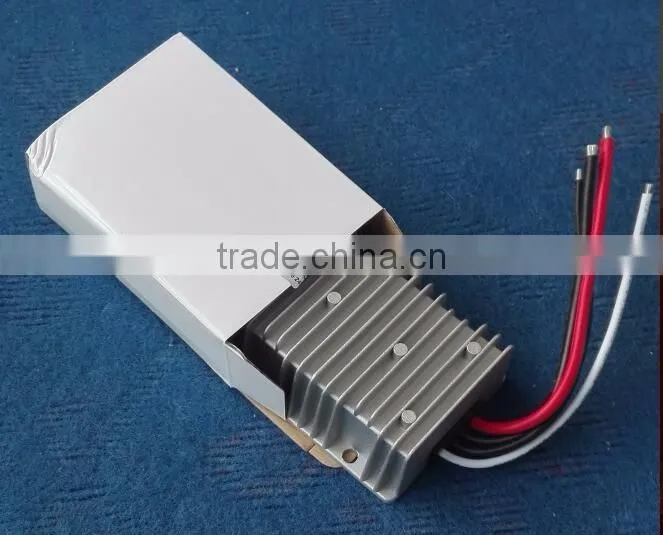

Packaging & Shipping
