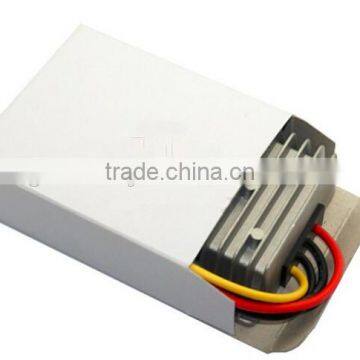

Help Center12v to 24v 3a Waterproof DC-DC Power Converter
Related Products
-
12v to 24v 5a Waterproof DC-DC Power ConverterUS$ 4.5 - 5.9MOQ: 1 Piece -
12v to 24v 1a 24W Waterproof DC-DC Boost Power ConverterUS$ 5.5 - 7.5MOQ: 1 Piece
-
12v to 19v 20a 380Wwaterproof DC-DC Buck Power ConverterUS$ 25.88 - 33.88MOQ: 1 Piece
-
24v to 48v 52A 2500w Boost /step up Dc-dc Power ConverterNegotiableMOQ: 1 Piece
-
12v to 24v 60A 1440W Waterproof Boost /step up DC/DC ConvertersNegotiableMOQ: 1 Piece
Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 35-60Vdc
4. Industry grade DC48V to DC24V step-down converter, high efficiency up to 95%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
Applications:
Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles,Wind Power System,Solar Power System,Electromotor,Telecommunications,Boat & Yacht,and so on...
Specifications:
Model |
GW-12S2403 |
Input rated voltage |
24V DC |
Input voltage range |
16-35V DC |
Efficiency |
96.5% (half load), 95% (full load) |
Output voltage |
24V DC |
Output current |
03 Amps |
Output rated power |
72Watts |
Output peak power |
1130% |
Voltage regulation |
< 1% |
Load regulation |
< 2% |
Ripple (Full load test) |
< 50mV |
|
No-load current
|
20mA |
No-load loss (Watt) |
0.72 ~ 1.44 |
Working temperature |
-40℃~ +80℃ |
Waterproof rating |
IP68 |
Over-voltage protection |
YES |
Over-current protection |
YES |
Over-temperature protection |
YES |
Short-circuit protection |
NO |
Machine size |
57*64*22mm |
Package size |
90*72*29mm |
N. Weight |
125g |
G. Weight |
132g |
Cooling way |
Free air convection |
Other |
Carton packaging |
