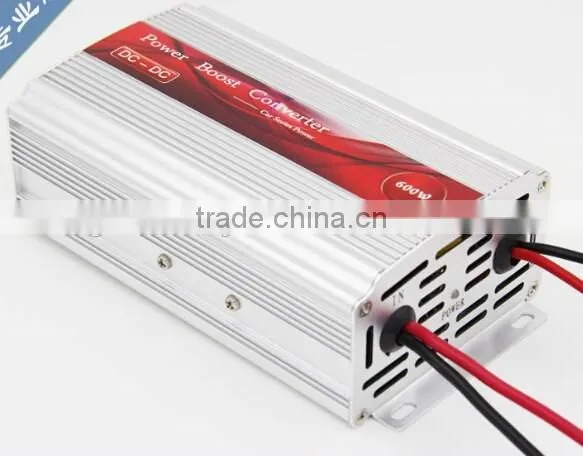

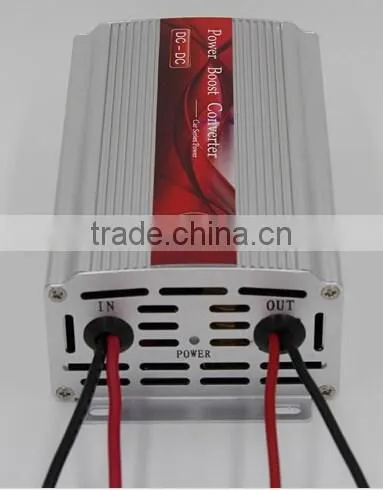

Help Center24v to 48v 10A Boost/step up DC-DC Converter 500W
Related Products
-
24v to 48v Boost/step up Power Suppy/ Converter 500WNegotiableMOQ: 1 Piece -
Waterproof DC DC Boost ConverterNegotiableMOQ: 1 Piece
-
Waterproof DC12V to DC24V 15A Power ConverterNegotiableMOQ: 1 Piece
-
Step up DC Power ConverterNegotiableMOQ: 1 Piece
-
720w 24v to 48v,15A Waterproof Boost dc to dc Power ConverterNegotiableMOQ: 1 Piece
DC -DC Boost converter Spec. is as follows
12v to 24v,5A 12V TO 48V,2A 24V TO 48V,10A
12V to 24v,10A 12V TO48 V,5A 24V TO 48V,20A
12V to 24V,15A 12V TO 48V,10A 24V TO 48V,30A
12V TO 24V,20A 12V TO 36V 10A
12V TO 24V,25A 12V TO 36A 5A
12V TO 24V,30A
DC Boost Power Series
Product Description:This product is a pulse width modulation (PWM) mode, the non-isolated power supply, the input voltage is converted into a stable Output voltage, a high conversion
, stable performance characteristics, are widely used in the automotive industry ,
new energy, industry and other fields.
The main parameters:
|
Parameter Model |
B2405A |
B2410A |
B2420A |
B1248 |
B2448 |
Input Voltage |
10V-15V |
10V-15V |
11V-15V |
11V-15V |
22V-30V |
Output Voltage |
24±0.5V |
24±0.5V |
24V±1V |
48V±1V |
48V±1V |
Output Current |
5A |
10A |
20A |
10A |
10A |
Peak power |
150W |
280W |
750W |
750W |
750W |
Quiescent Current |
<30mA |
<40mA |
<120mA |
<120mA |
<120mA |
Efficiency |
>90% |
>88% |
>88% |
>88% |
>88% |
Ambient temperature |
-25°c-+55°c |
-20—+55 |
-20—+55 |
-20—+55 |
-20—+55°c |
Note:
1,Do not short the output, check the wiring is correct before power
Installation environment must be kept dry, keep the air circulating coolin
