12v to 60v 8A Boost/step up DC-DC Power Converter 500W

12v to 60v 8A Boost/step up DC-DC Power Converter 500W thumbnail-1

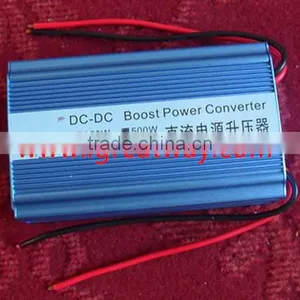

12v to 60v 8A Boost/step up DC-DC Power Converter 500W thumbnail-2
12v to 60v 8A Boost/step up DC-DC Power Converter 500W thumbnail-3

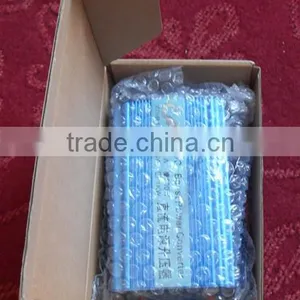

12v to 60v 8A Boost/step up DC-DC Power Converter 500W thumbnail-4
12v to 60v 8A Boost/step up DC-DC Power Converter 500W thumbnail-5
12v to 60v 8A Boost/step up DC-DC Power Converter 500W thumbnail-6
12v to 60v 8A Boost/step up DC-DC Power Converter 500W photo-1

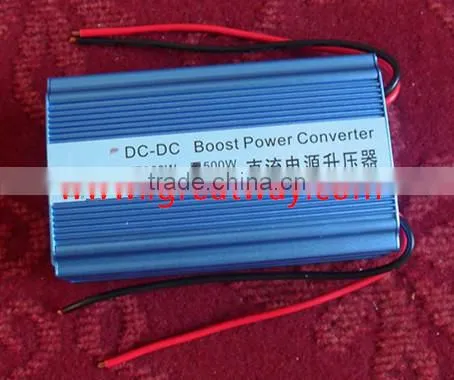

12v to 60v 8A Boost/step up DC-DC Power Converter 500W photo-2
12v to 60v 8A Boost/step up DC-DC Power Converter 500W photo-3

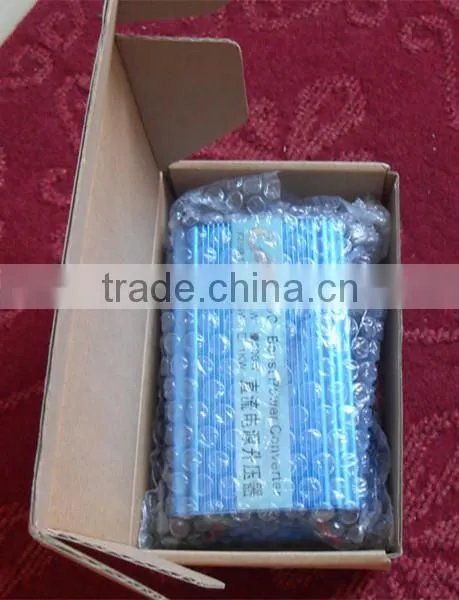

12v to 60v 8A Boost/step up DC-DC Power Converter 500W photo-4
12v to 60v 8A Boost/step up DC-DC Power Converter 500W photo-5

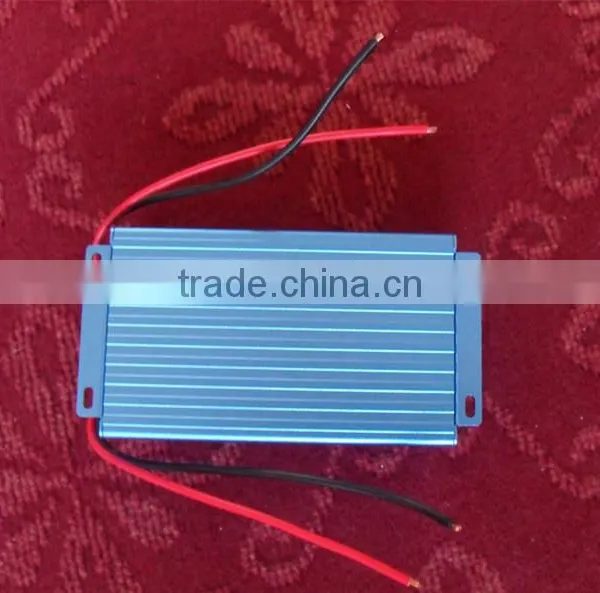

12v to 60v 8A Boost/step up DC-DC Power Converter 500W photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GW
Model Number:
HE1260
Contact Supplier Request Quote Chat Now
Dezhou Greatway Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name GW
Model Number HE1260
Output Power Other, 500w
Output Type Single
Size 180*87*52mm
Weight 0.75kg
Input Voltage DC 10-16V
Output Voltage DC60V ± 5%
Type DC/DC Converters
Output Current 10A









12v to 60v 8A boost/step up DC-DC power converter 500W



12v to 60v 8A boost/step up DC-DC power converter 500W



12v to 60v 8A boost/step up DC-DC power converter 500W

12v to 60v 8A boost/step up DC-DC power converter 500W



12v to 60v 8A boost/step up DC-DC power converter 500W









12v to 60v 8A boost/step up DC-DC power converter 500W





12V TO 60V DC boos dc-dc  converter is a pulse width modulation (PWM) mode, non-isolated switching power supply, 1, using imported high-power integrated switching regulator module as the core, can unstable 10-16V DC power conversion for a stable 60V DC power output. With high conversion efficiency, stable performance, input over-voltage, output over-current, over temperature, output short circuit protection function and resume normal operation after the fault is removed. Especially suitable for electric car modification, car audio, control systems and mechanical equipment and other uses.

 The main performance parameters:

Input voltage: DC10V - DC16V

Output voltage: DC60V ± 5%

Output Current: 8A

Working temperature: -20 ℃ - + 55 ℃

Conversion efficiency:> 90%

Rated power: 500W

Peak power: 800W (MAX)

Quiescent Current: <100mA

Dimensions: Length 140MM, width 87MM, high 52MM

Note: Note that when you install it ,the positive and negative isn’t reversed, to avoid output short circuit (or burned the fuse)

Requirements:

Working temperature: -10 ℃ ~ + 70 ℃

The input : 4.0mm2 cable    Red wire(+) ,Black(-)

The output : 2.5mm2 Cable   Red wire(+) ,Black(-)
