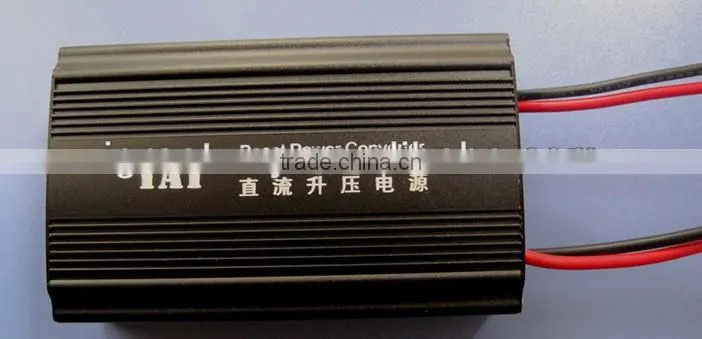

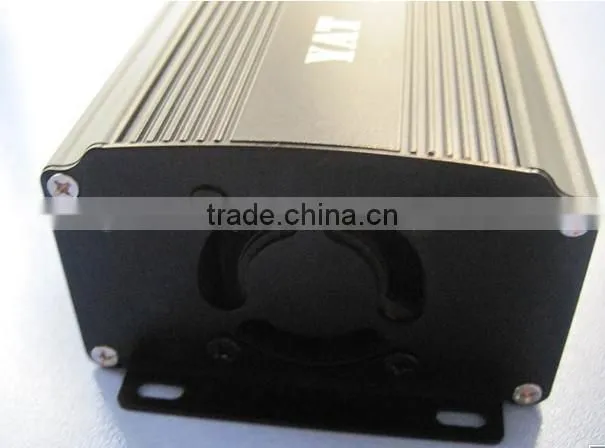

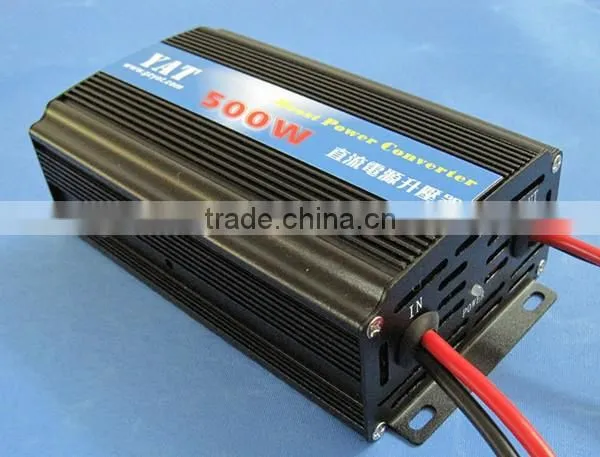

Help Center480w dc dc Boost/step up Converter 12v to 24V 20A
Related Products
-
360w Boost dc Converter 12v to 24vNegotiableMOQ: 1 Piece -
Waterproof Boost /step up Dc-dc Power Converter DC12V to DC24V 20ANegotiableMOQ: 1 Piece
-
Waterproof Step up Power Converter 12V 24V 15ANegotiableMOQ: 1 Piece
-
Boost Dc/dc ConverterNegotiableMOQ: 1 Piece
-
12v to 24v, 15A Step up ConverterNegotiableMOQ: 1 Piece
DC -DC Boost converter Spec. is as follows
12v to 24v,5A 12V TO 48V,2A 24V TO 48V,10A
12V to 24v,10A 12V TO48 V,5A 24V TO 48V,20A
12V to 24V,15A 12V TO 48V,10A 24V TO 48V,30A
12V TO 24V,20A 12V TO 36V 10A
12V TO 24V,25A 12V TO 36A 5A
12V TO 24V,30A
This product is a pulse-width modulation (PWM) mode, non-isolated switching power supply, 12V input to 24V output boost, with a high conversion efficiency,
stable performance, etc., are widely used in automotive industry, new energy and industrial sectors.
The main performance parameters:
Input voltage: DC10V - DC16V
Output voltage: DC24V ± 3%
Output Current: 20A
Operating temperature: -20 °C - +55 °C
Conversion efficiency : > 90%
Peak power: 800W (MAX)
Static current: <100mA
