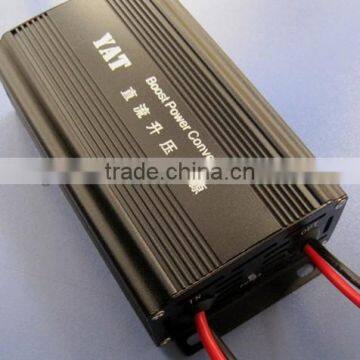

360w Boost dc Converter 12v to 24v

360w Boost dc Converter 12v to 24v thumbnail-1
360w Boost dc Converter 12v to 24v photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
GW
Model Number:
DCIS
Contact Supplier Request Quote Chat Now
Dezhou Greatway Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name GW
Model Number DCIS
Output Power Other, 360w
Output Type Single
Size 50 * 64 * 38MM
Weight 180kg
Input Voltage DC 10-16V
Output Voltage DC 24V,36V,48V is optional
Type DC/DC Converters
Output Current 15A

Specifications

dc converter 12v to 24v
1. high efficiency, stability and compact size 2.Input reverse polarity protection3.Water and Vibr



 360w Boost dc converter 12v to 24v



360w Boost dc converter 12v to 24v



 360w Boost dc converter 12v to 24v



360w Boost dc converter 12v to 24v







360w Boost dc converter 12v to 24v







This product is a pulse width modulation (PWM) mode, the non-isolated power supply, the input voltage is converted into a stable Output voltage, a high conversion efficiency, stable performance characteristics, are widely used in the automotive industry , new energy, industry and other fields.



.

DC -DC Boost converter Spec. is as follows

12v to 24v,5A                               12V TO 48V,2A                       24V TO 48V,10A

12V to 24v,10A                            12V TO48 V,5A                       24V TO 48V,20A

12V to 24V,15A                            12V TO 48V,10A                24V TO 48V,30A

12V TO 24V,20A                           12V TO 36V 10A

12V TO 24V,25A                            12V TO 36A  5A

12V TO 24V,30A









Parameter

   Model

B2405A

B2410A

B2420A

B1248

B2448

Input Voltage

10V-15V

10V-15V

11V-15V

11V-15V

22V-30V

Output Voltage

24±0.5V

24±0.5V

24V±1V

48V±1V

48V±1V

Output Current

5A

10A

20A

10A

10A

Peak power

150W

280W

750W

750W

750W

Quiescent Current

<30mA

<40mA

<120mA

<120mA

<120mA

Efficiency

>90%

>88%

>88%

>88%

>88%

Ambient temperature

-25°C—+55°C

-20°C—+55°C

-20°C—+55°C

-20°C—+55°C

-20°C—+55°C
