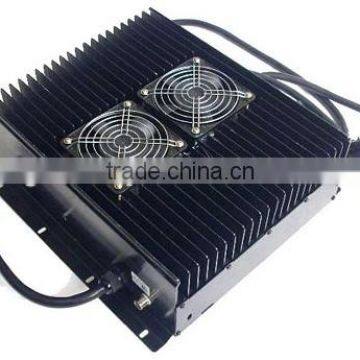

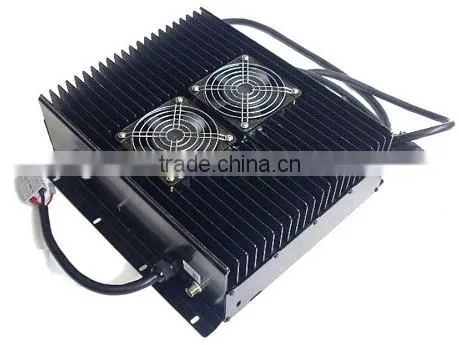

4KW HF/PFC on Board Lithium Battery Charger for Electric Car

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Model Number:

CHPC

Dezhou Greatway Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name GW

Model Number CHPC

Warranty 1 Years

Specifications

PFC charger :1, CANbus 2.waterproof 3. HF PFC 4.input volt:AC85V-AC265V,5.on-board

Feature Overview

The charger is applicable for various lithium batteries like LiFePO4, LiMn2O4 etc.,hemicolloid hemicolloid

It features light weight,small volume, stable performance, high efficiency and reliable security etc.,

The charger is widely used for battery-charging cycles in electric vehicles such as electric forklift, golf cars,

electric trucks, electric tour bus, electric yacht, cleaning machines, or Uninterruptible Power Supply (UPS),

solar energy, wind power dynamo and electric communication system on the railway etc.

Specifications

1. Thermal Self-Protection: When the internal temperature of the charger exceeds 75°C, the charging

current will reduce automatically. If it exceeds 85 °C , the charger will shutdown protectively. When the

internal emperature drops, it will resume charging automatically.

2. Short-circuit Protection: When the charger encounters unexpected short-circuit, it will automatically

stop to output. When fault removes, the charger will re-start in 10 seconds.

3. Reverse Connection Protection: When the battery is polarity reversed, the charger will cut off the

connection between the internal circuit and the battery, and refuses to start. It can avoid any destroy.

4. Input Low-voltage & Over-voltage Protection: When the AC input Voltage is lower than 85V or

higher than 265V, the charger will shutdown protectively and automatically resume working with the

voltage is normal again.

Type Table
